ATF Checking
ATF CHECKING1. Drive the vehicle to warm ATF up to operating temperature. (70 - 80°C (158 - 176°F)).
2. Park the vehicle at even straight surface and engage the parking brake. (Depress the parking brake pedal for foot type)
3. Move the selector lever through all positions and place it at position "P" or "N".

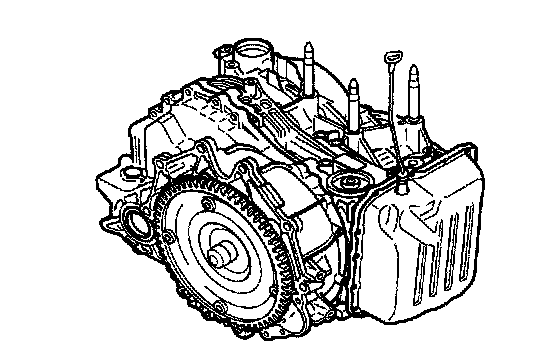

4. Remove dirt around the fluid level gauge and clean the gauge to check ATF.
NOTE: If there's burnt odor, it means that ATF is contaminated by fine particles from bush (metal) or abrasive materials. Then you must overhaul the transaxle and cleanse the cooler line.
5. Check the ATF level. ATF shall reach "HOT" range of the fluid level gauge. Otherwise, add the fluid to "HOT" range.
Use GENUINE DIAMOND ATF SP-III fluid or SK ATF SP-III.
NOTE:
^ Low ATF level will make fluid pump inhale outside air to generate bubbles within the fluid pressure line. Then fluid pressure will be decreased to cause retarded shift or slip of the clutches and the brakes.
^ Surplus fluid will make gears pump up fluid to generate bubbles resulting to the same effect as low fluid level.
^ High or low fluid level will cause fluid overheating and oxidation, and the valves, the clutches, and the brake will not operate properly. Besides, bubble will make fluid overflow into air bleeder or fluid filter tube though there is no fluid leakage.
WARNING: When new, automatic transmission fluid should be red. The red dye is added so the assembly plant can identify it as transmission fluid and distinguish it from engine oil or antifreeze. The red dye, which is not an indicator of fluid quality, is not permanent. As the vehicle is driven the transmission fluid will begin to lock darker. The color may eventually appear light brown.
6. Insert the fluid level gauge correctly
