Disassembly

UNDERDRIVE CLUTCH





COMPONENTS

DISASSEMBLY





1. Remove the input shaft snap ring.

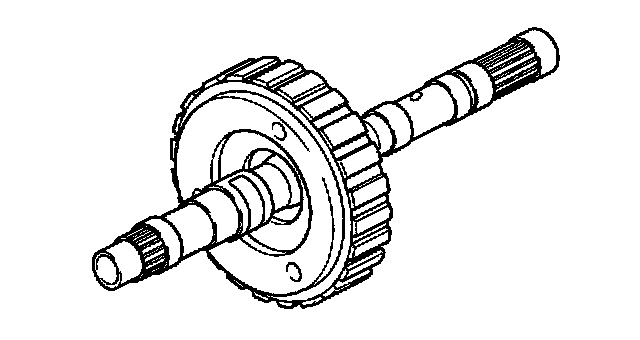

2. Disconnect the input shaft.
3. Remove seal rings (two).
4. Remove the clutch reaction plate snap ring.
5. Disconnect the clutch reaction plate.
6. Disassemble the clutch discs (four) and plates (four).

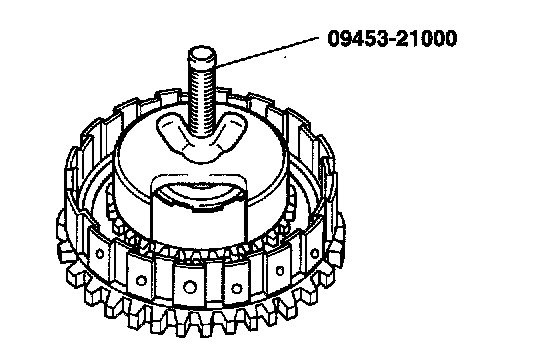

7. Remove the under clutch piston snap ring using the special tool (09453-21000).
8. Remove the clutch spring retainer.
9. Remove the O-ring.
10. Remove the clutch return spring.
11. Remove the under clutch piston using compressed air.
12. Remove the O-rings (two).
