Reassembly

TRANSFER DRIVE GEAR

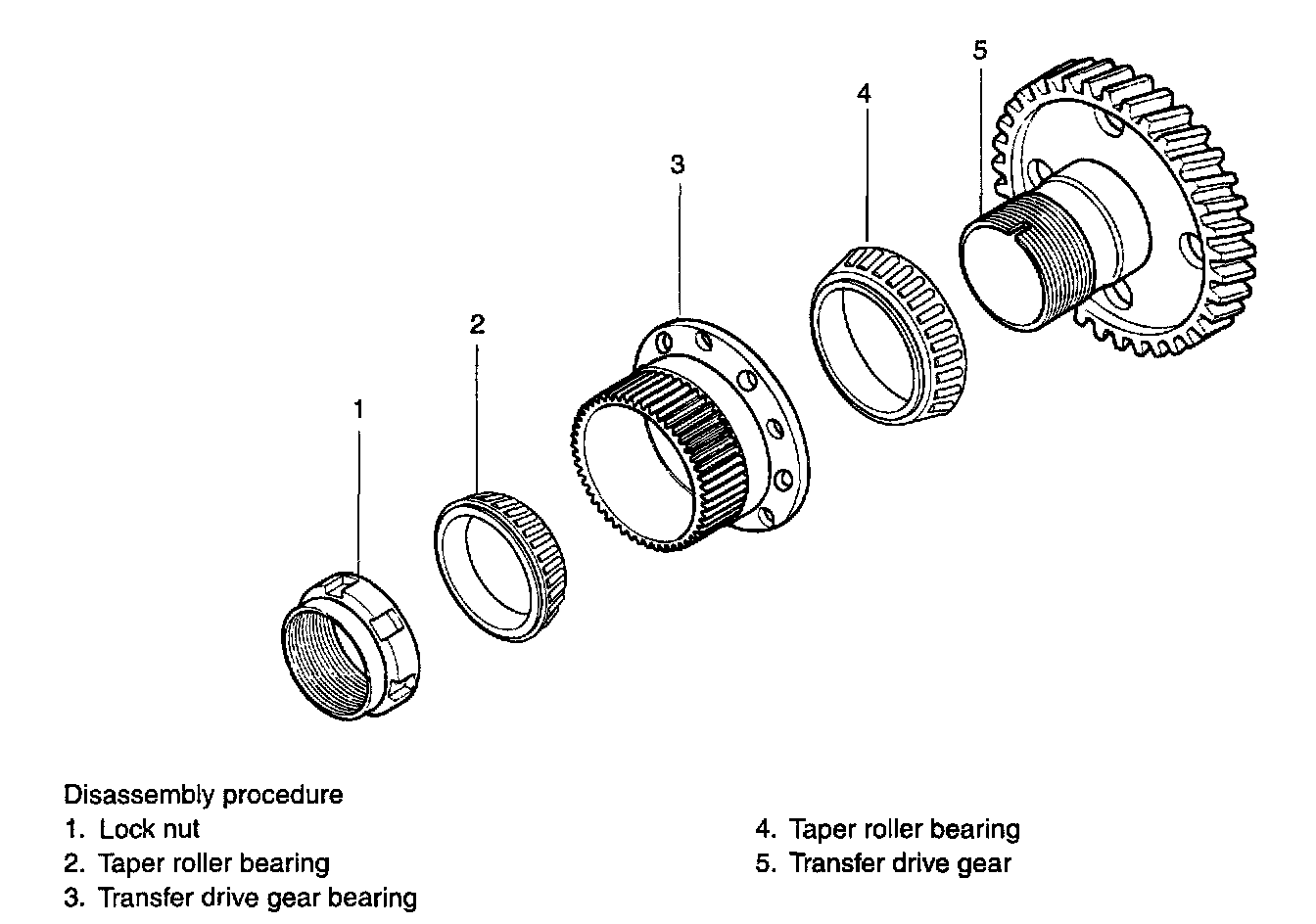

COMPONENTS

REASSEMBLY





1. Assemble the transfer drive gear bearing.

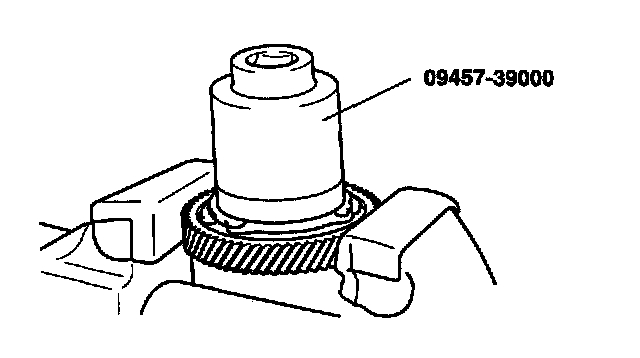

2. Apply ATF on a new lock nut and tighten it with tightening torque.
Release it one revolution and retighten it with tightening torque.
Tightening torque: 180 - 210 Nm (1800 - 2100 kgf-cm, 126 - 147 ft. lbs.)

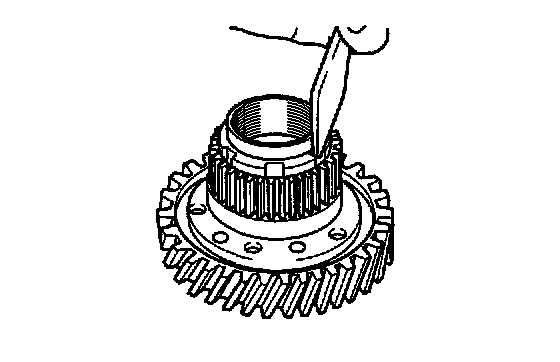

3. Tighten the lock nut with punch (2 points).
