Disassembly

TRANSFER DRIVE GEAR





COMPONENTS

DISASSEMBLY

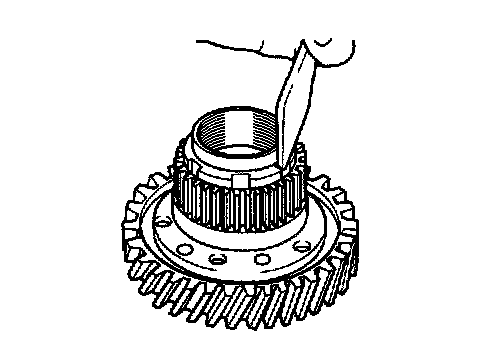

1. Cock the lock nut only enough to turn.

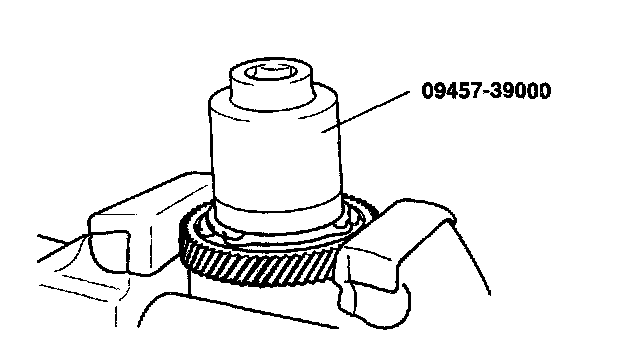

2. Remove the output gear and the parking brake gear using the special tool (09457-39000).
