Reassembly

REVERSE AND OVERDRIVE CLUTCH

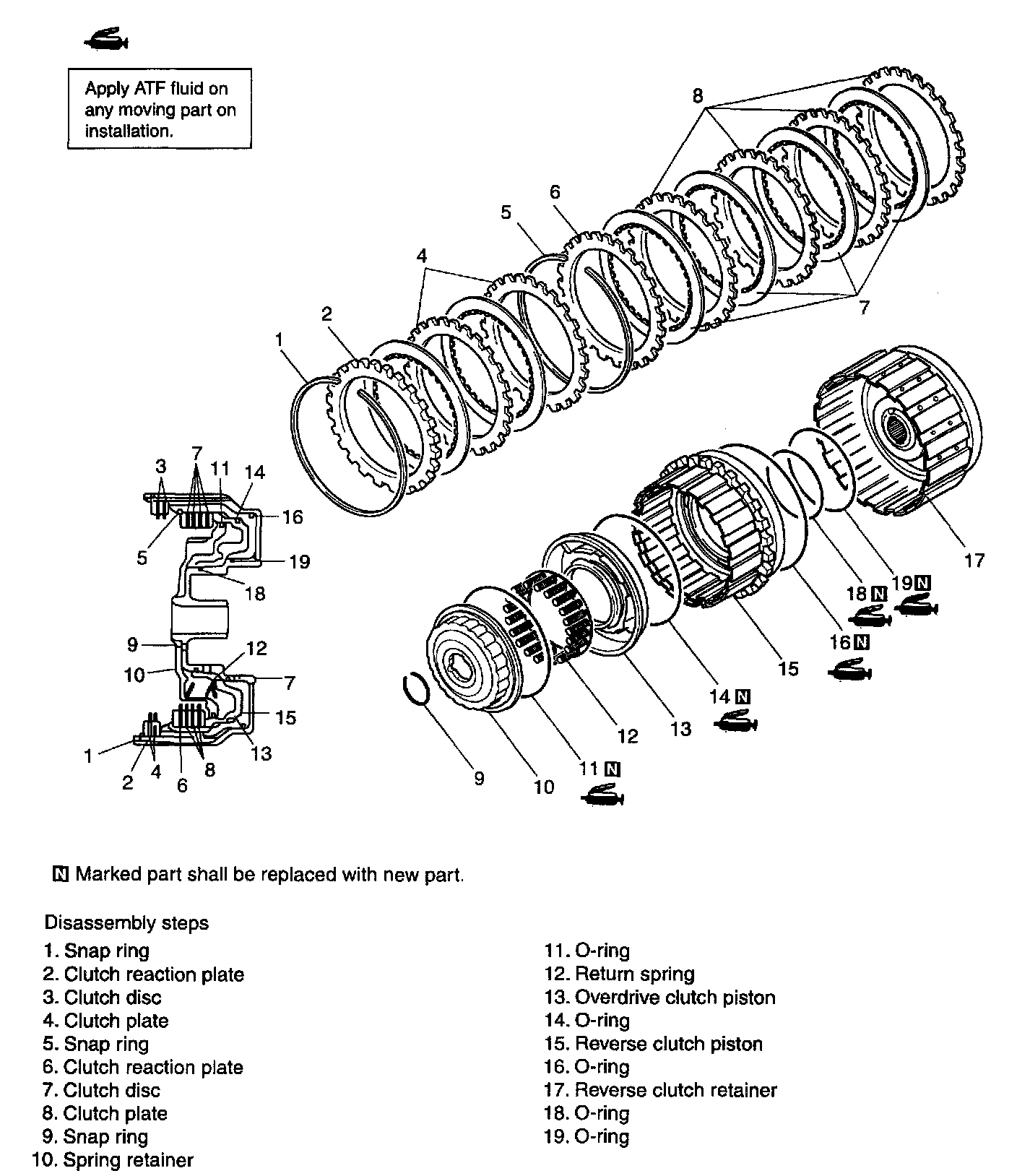

COMPONENTS

REASSEMBLY
1. Install the O-rings (three).





2. Connect the reverse retainer and reverse clutch piston aligning holes A & B.
3. Install the reverse clutch piston.
4. Install the O-ring.
5. Install the overdrive clutch piston.
6. Install the clutch return spring.
7. Install the O-ring.
8. Install the clutch spring retainer.

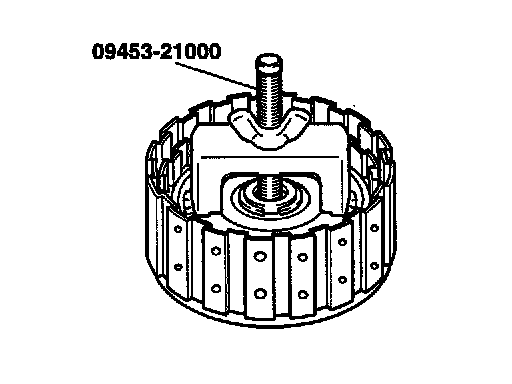

9. Install the overdrive clutch spring retainer snap ring using the special tool (09453-21000).

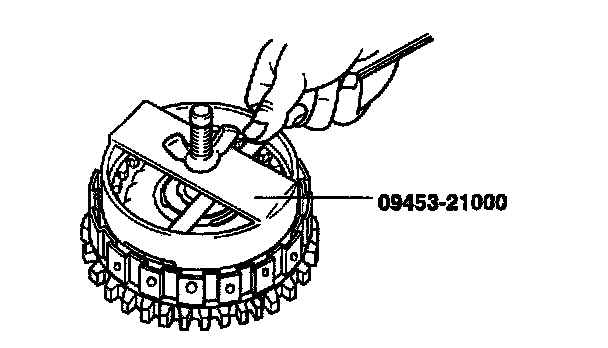

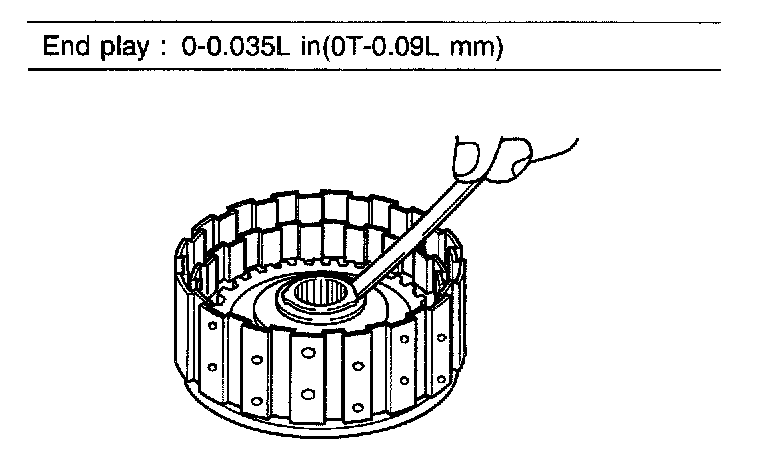

10. Measure the gap with the snap rings by using special tool. If the gap deviates from standard value, use an appropriate snap ring (4 sizes).

CAUTION: Dip the clutch disc in ATF sufficiently before assembly.

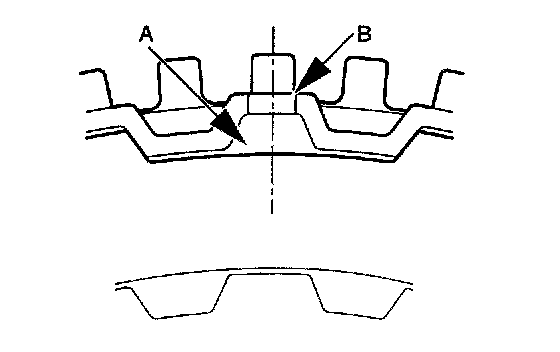

11. Aligning the teeth of the clutch plate, the clutch disc, and the clutch reaction plate (fig.A) and the reverse clutch retainer hole (fig.B), assemble them.
12. Install the reverse clutch discs (two) and plates (two).
13. Install the reverse clutch reaction plate.
14. Install the snap ring.

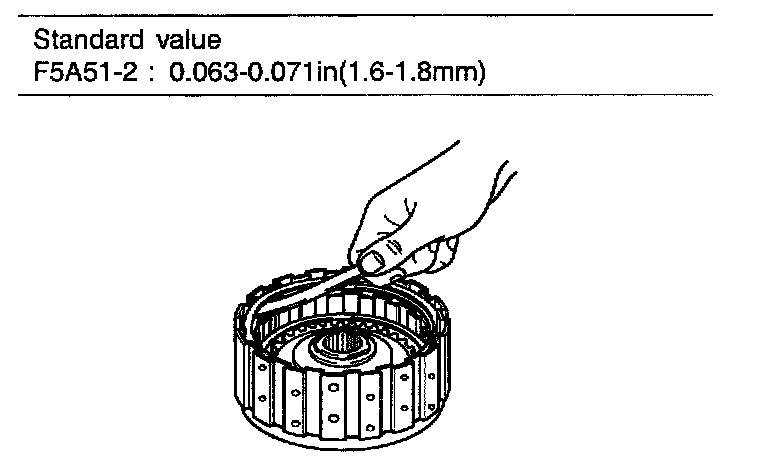

15. Measure the gap between the reverse clutch reaction plate and the snap ring by using special tool. If the gap deviates from standard value, use an appropriate snap ring (4 sizes).

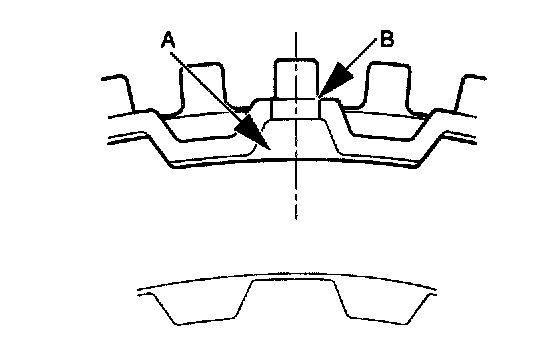

16. Aligning the teeth of the clutch plate, the clutch disc, and the clutch reaction plate (fig.A) and the overdrive clutch retainer hole (fig.B), assemble them.
17. Install the overdrive clutch discs (four) and plates (four).
18. Install the overdrive clutch reaction plate.
19. Install the snap ring.





20. Measure the gap between the overdrive reaction plate and the snap ring. If the gap deviates from standard value, use an appropriate snap ring (15 sizes).
