Home >> Kia >> 2006 >> Amanti V6-3.5L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Suspension >> System Specifications

System Specifications

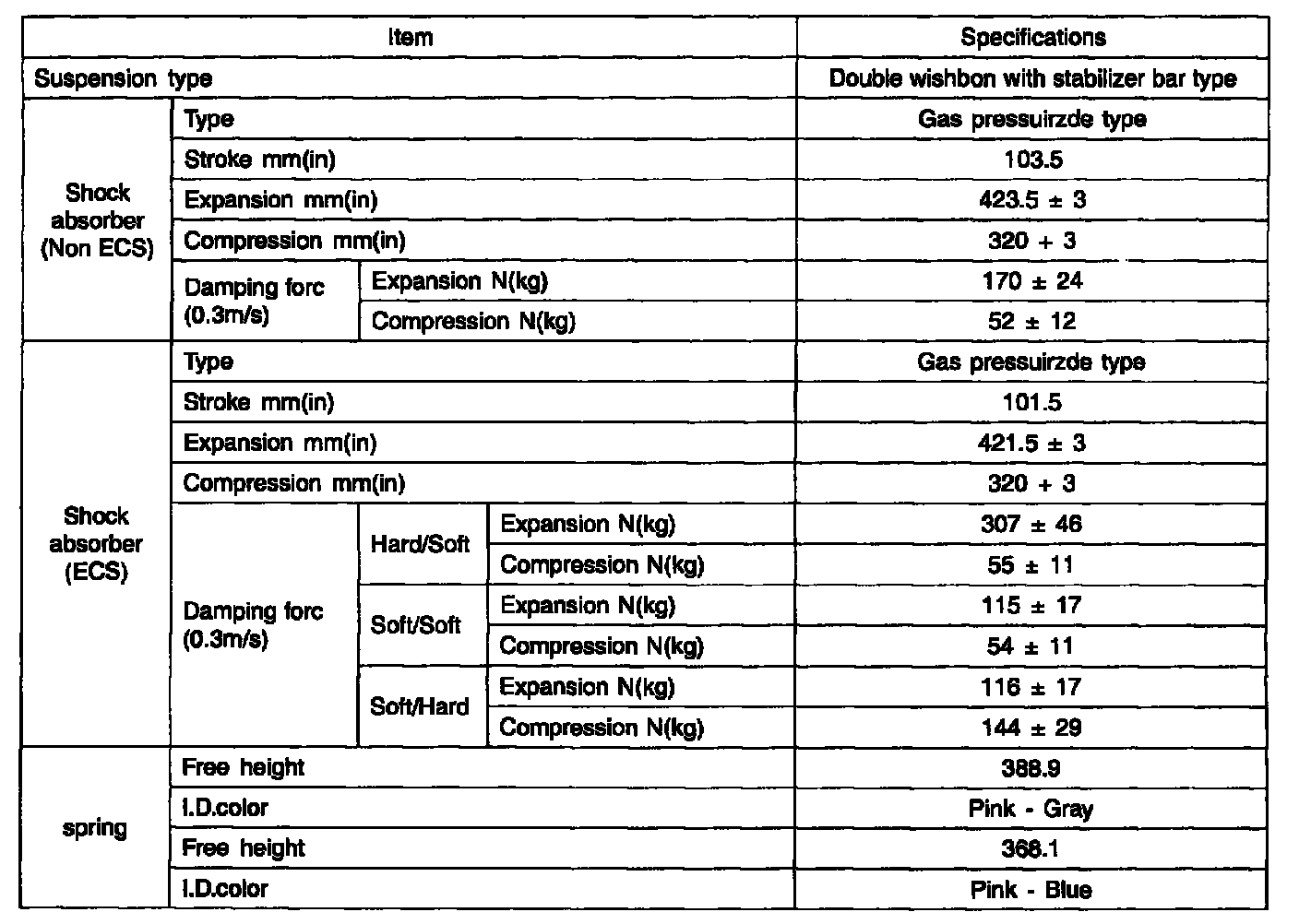

FRONT SUSPENSION SYSTEM

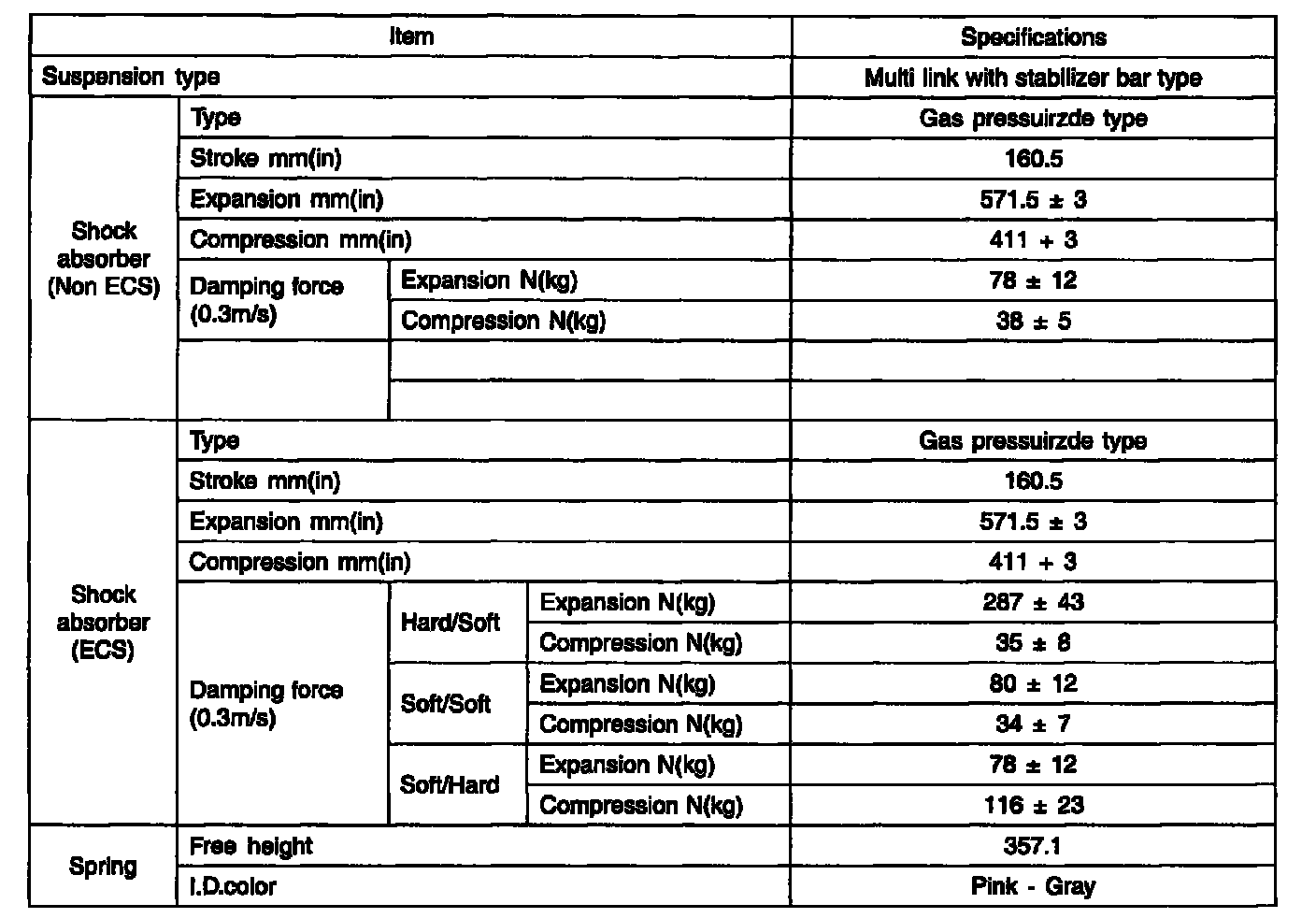

REAR SUSPENSION SYSTEM

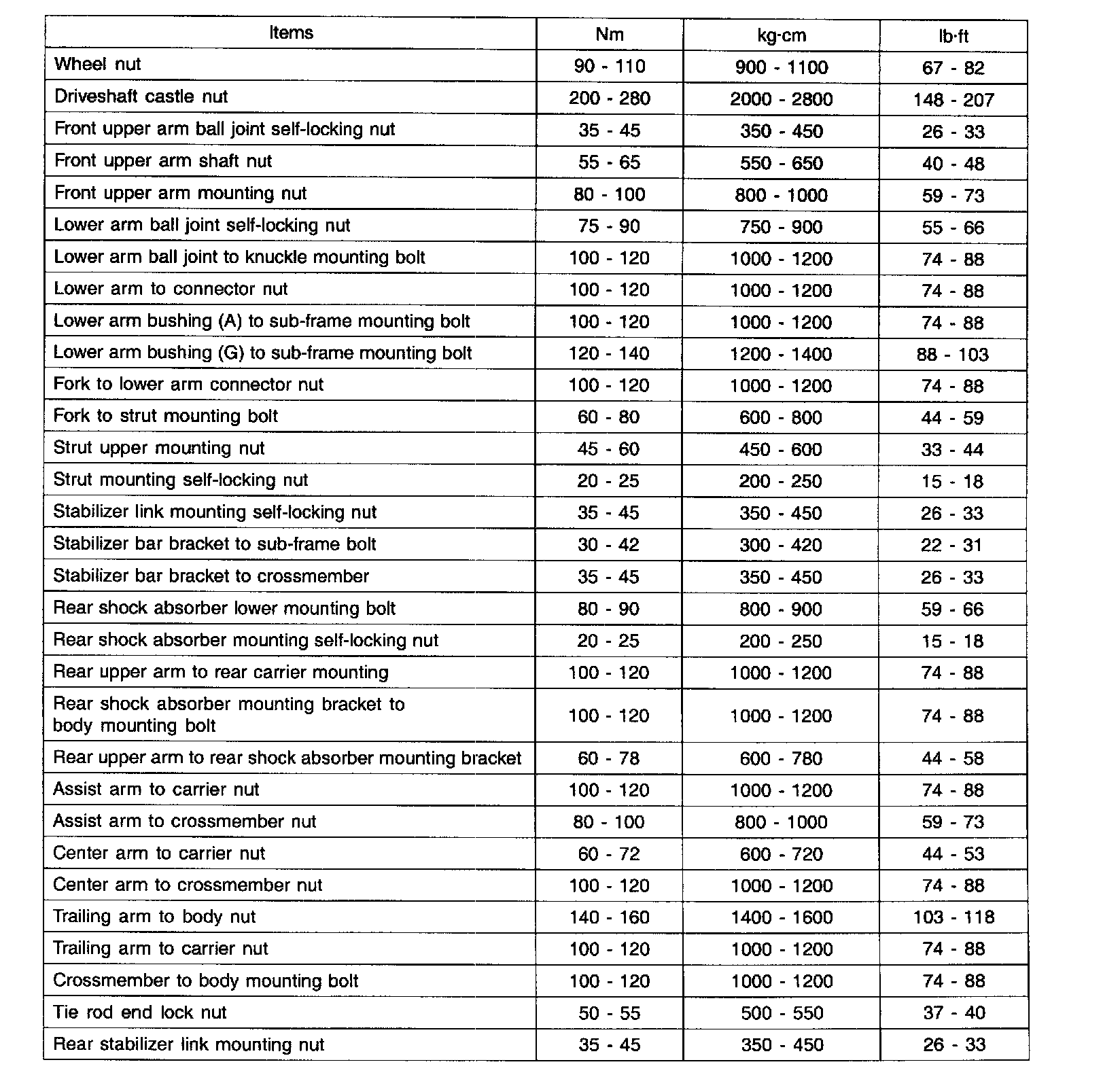

TIGHTENING TORQUE
