Home >> Kia >> 2006 >> Amanti V6-3.5L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Brakes and Traction Control >> System Specifications

System Specifications

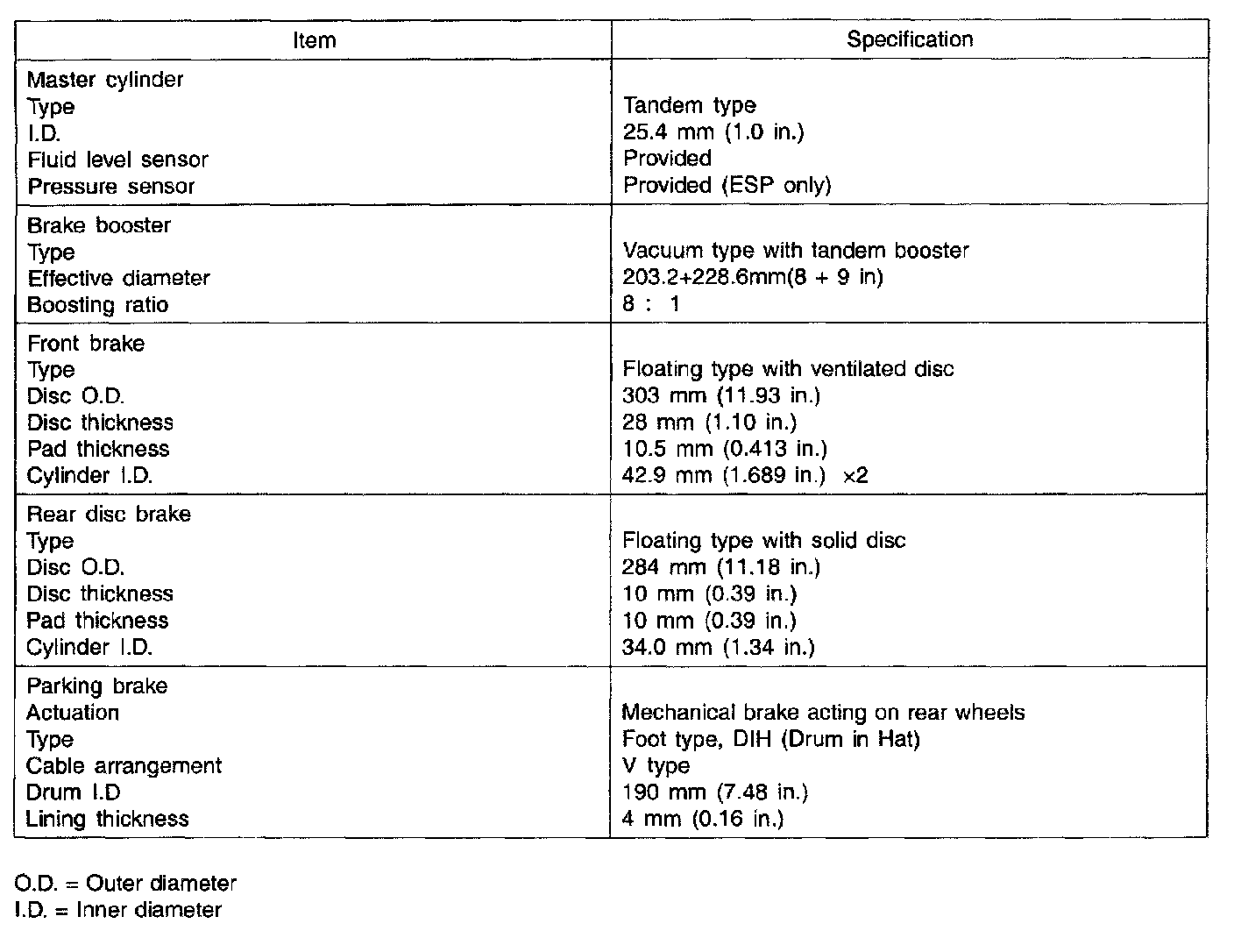

SPECIFICATIONS (BRAKE)

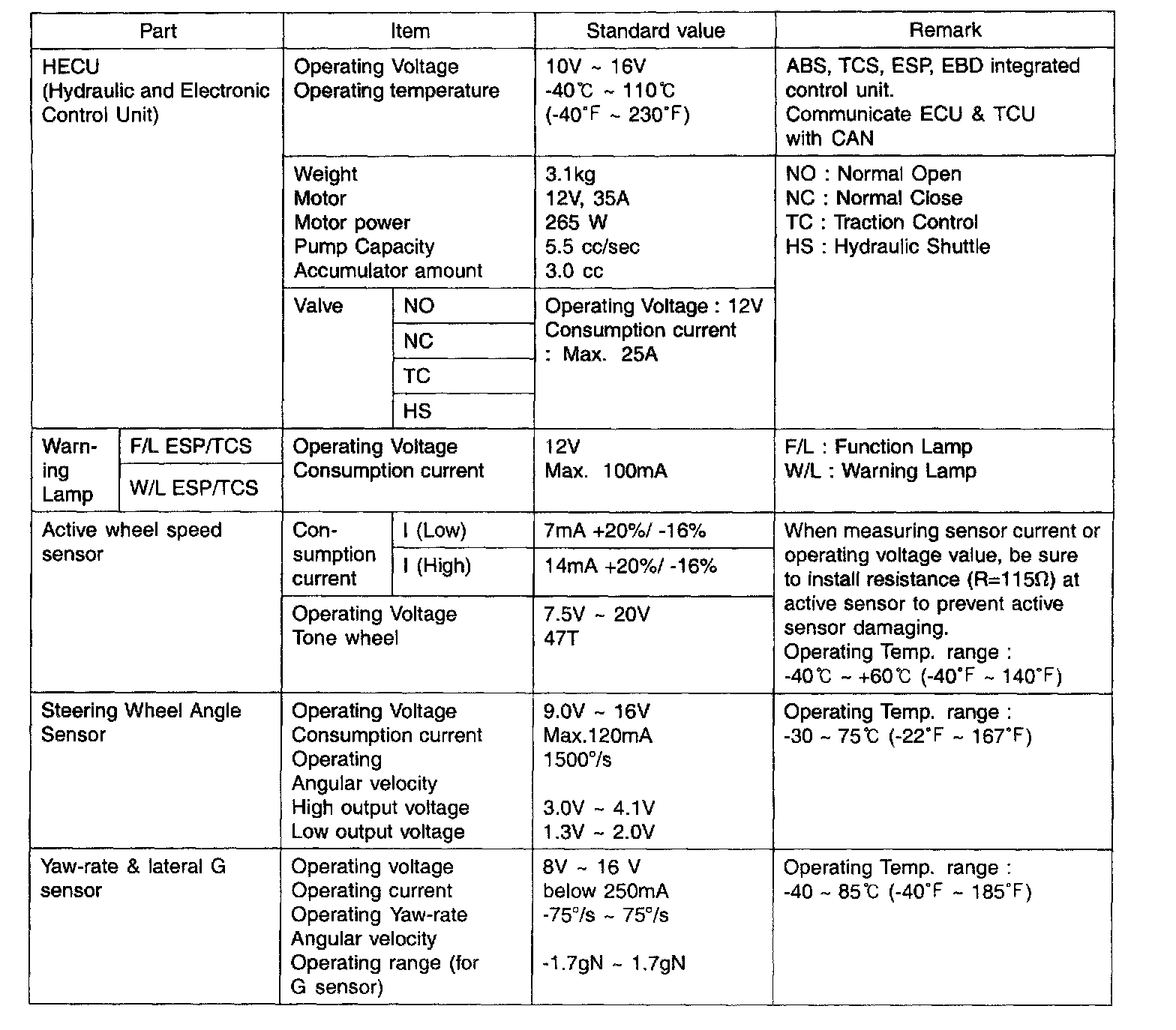

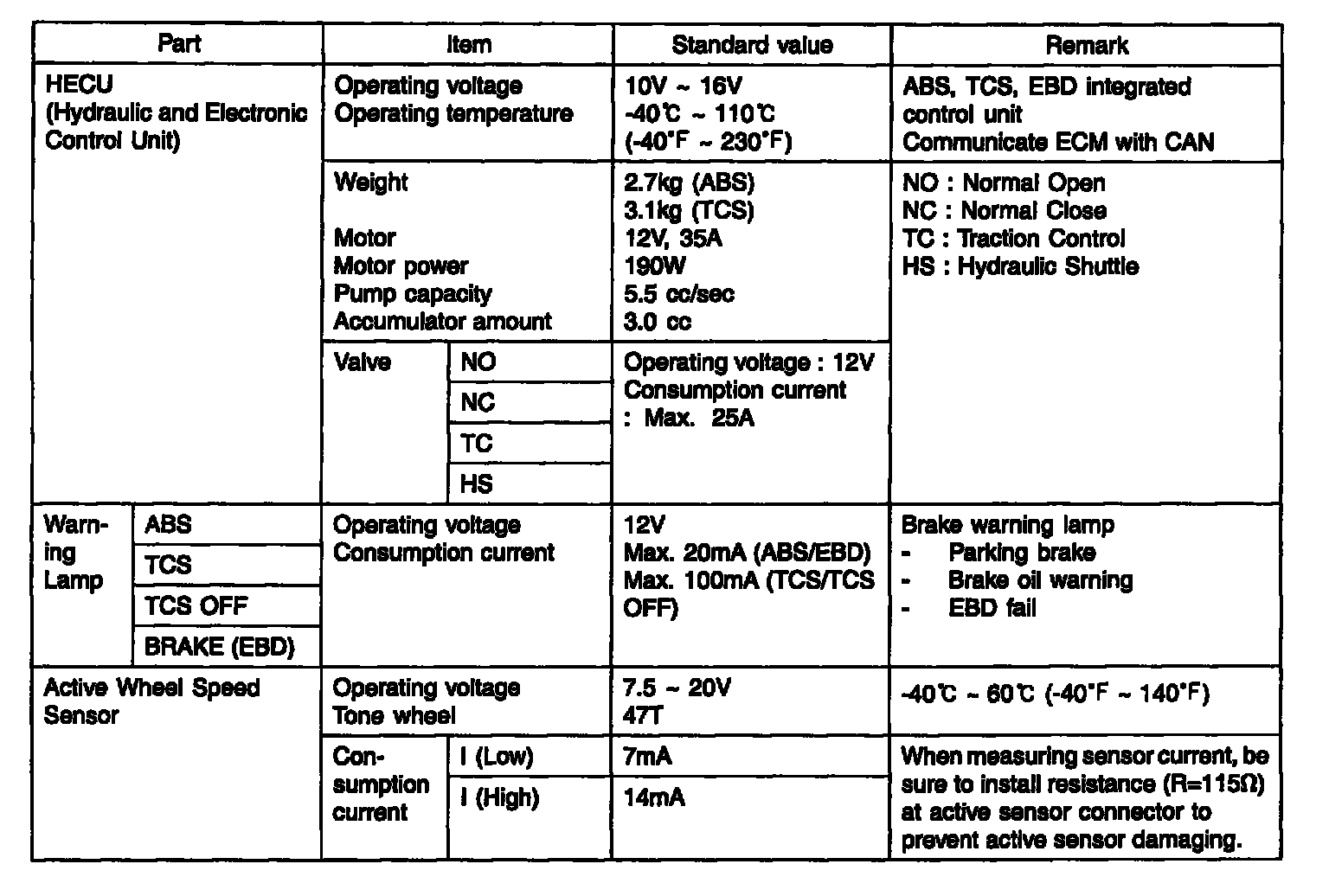

SPECIFICATIONS (ABS&TCS)





SERVICE STANDARD





TIGHTENING TORQUE (ABS&TCS)





TIGHTENING TORQUE (ESP)
