Home >> Kia >> 2006 >> Amanti V6-3.5L >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Brakes and Traction Control >> Wheel Speed Sensor >> Service and Repair >> Front

Front

FRONT WHEEL SPEED SENSOR

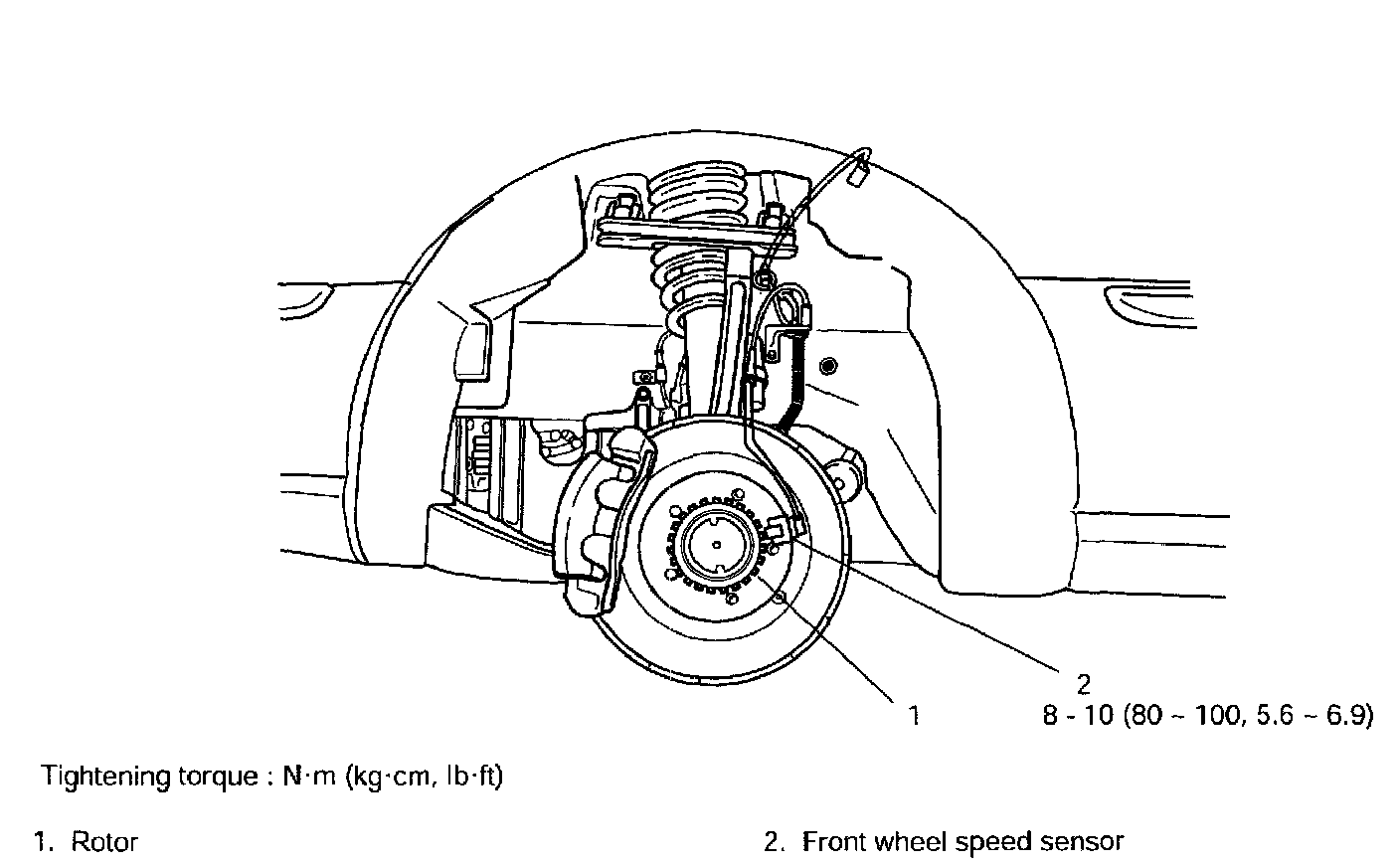

COMPONENTS

REMOVAL

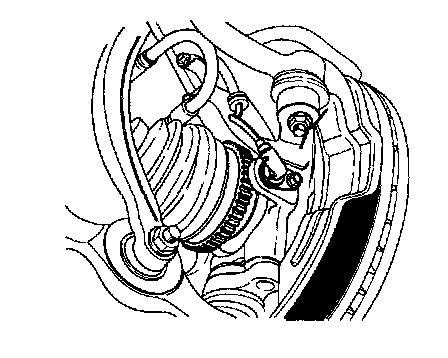

1. Remove wheel speed sensor.

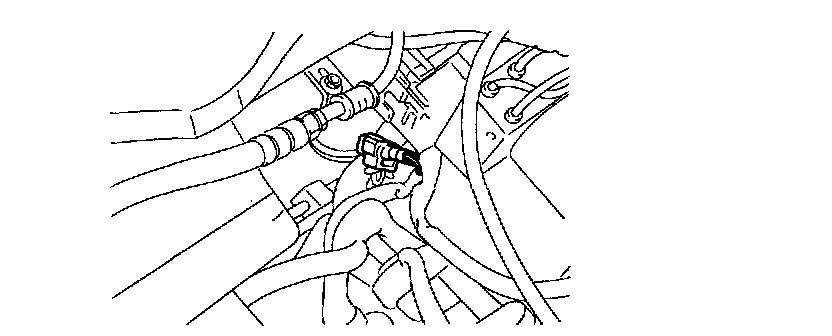

2. Disconnect wheel speed sensor connector after removing front wheel speed sensor.
