Traction Control Switch: Testing and Inspection

ESP OFF (TCS OFF) SWITCH

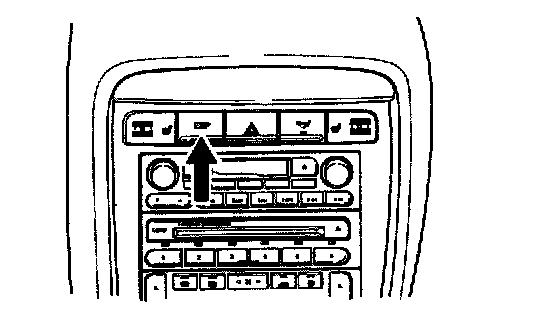

1. ESPOFF (TCS OFF) switch is installed on crash pad switch plate of driver's side.
2. A driver can choose at driver's option.
3. When forbidding the ESP(TCS) control, the driver can operate the ESP OFF(TCS OFF) switch.





4. When choosing, ESP OFF(TCS OFF) function lamp is turned on.

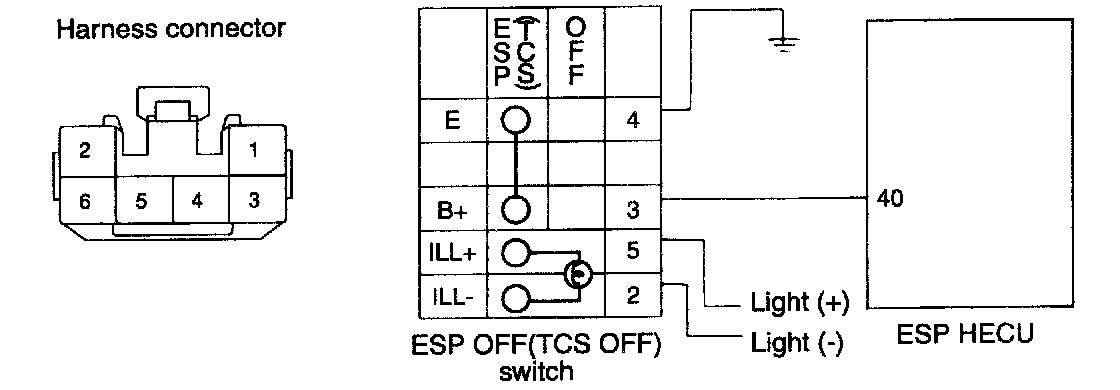

5. Circuit Diagram
