Brake Lamp Switch

BRAKE LAMP SWITCH
1. The brake lamp switch determines to judge if ESP and ABS should be controlled by transmitting whether braking should be tried to HECU.
2. The brake lamp switch uses as the basic signal of ABS - ESP braking control.

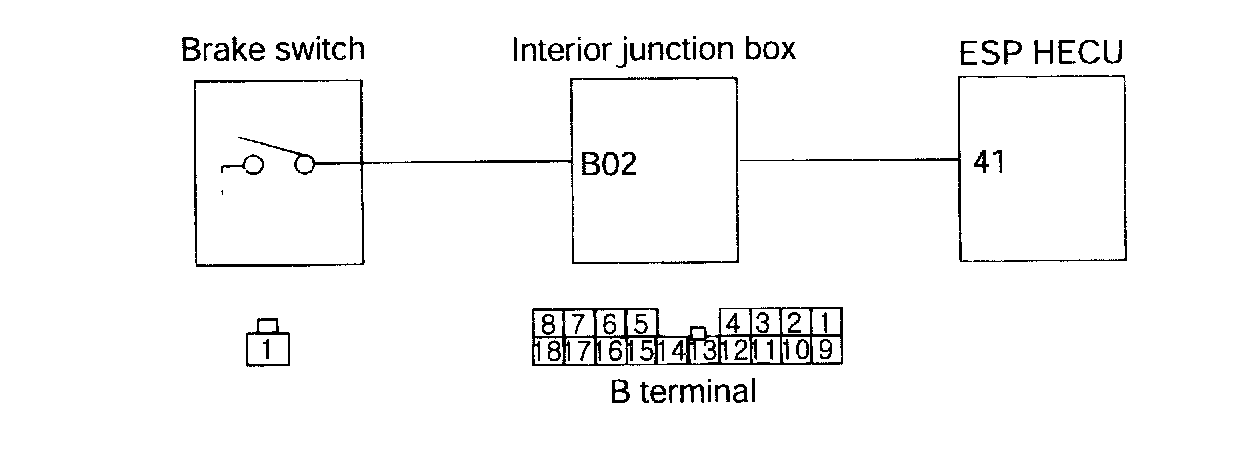

3. Circuit diagram.
