EGR Port Vacuum Check

EGR PORT VACUUM CHECK

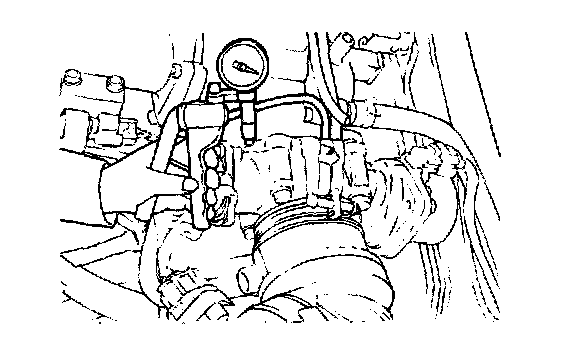

1. Disconnect the vacuum hose from the throttle body EGR vacuum nipple and connect a hand vacuum pump to the nipple.

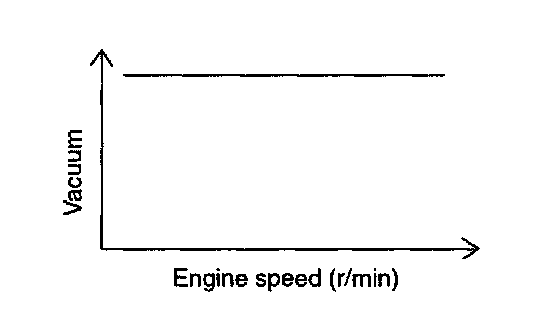

2. Start the engine and check to see that, after raising the engine speed by racing the engine, vacuum remains fairly constant.
