Fog/Driving Lamp: Service and Repair

REMOVAL AND INSTALLATION

1. Remove the battery negative(-) terminal.




2. Loosen the bolts(4) and fasteners(2) from the upper of bumper cover.

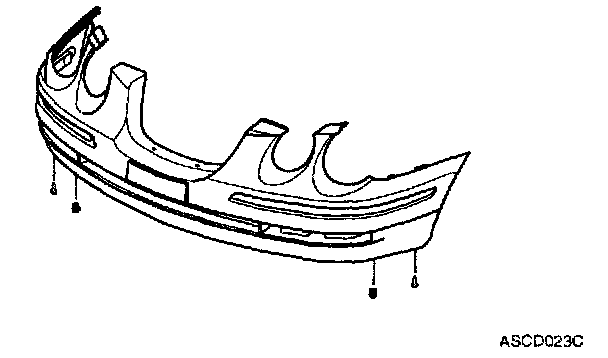

3. Loosen the screws(2) and fasteners(2) from the lower of bumper cover.




4. Loosen the screws(2) from the side of bumper cover.
5. Disconnect the connector of turn signal lamp from the back of bumper cover.

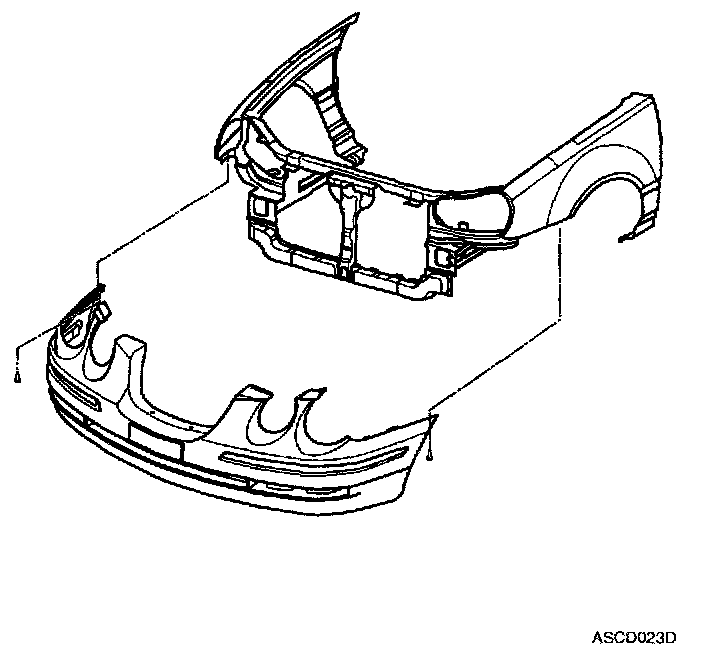

6. Remove the front bumper and energy absorber.

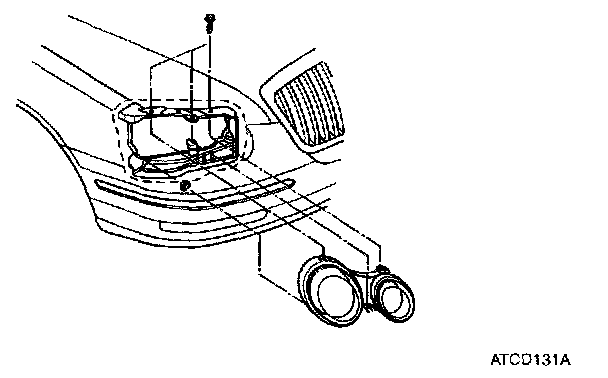

7. Loosen the bolts(3) and disconnect the connector of head lamp/front combination lamp.




8. Remove the head lamp/front combination lamp.
9. Installation is reverse of removal.
