Brake Lamp: Service and Repair

REMOVAL AND INSTALLATION

1. Remove the battery negative(-) terminal.
2. Remove the service cover from the trunk room.

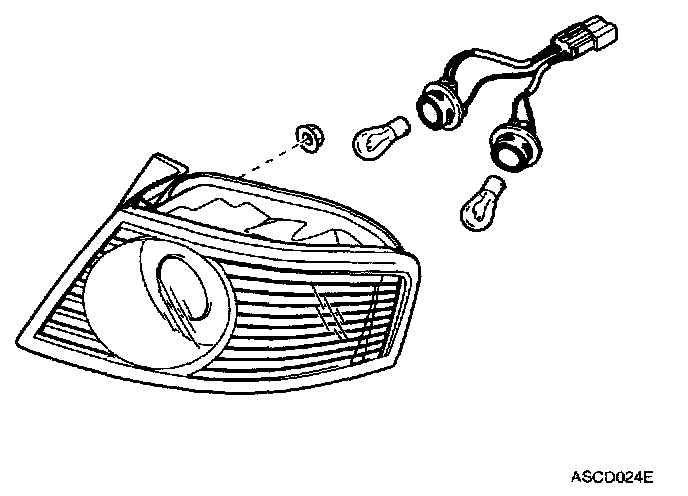

3. Loosen the nuts(4) of rear combination lamp(outer).
4. Disconnect the connector of rear combination lamp(outer).




5. Remove the rear combination lamp(outer).

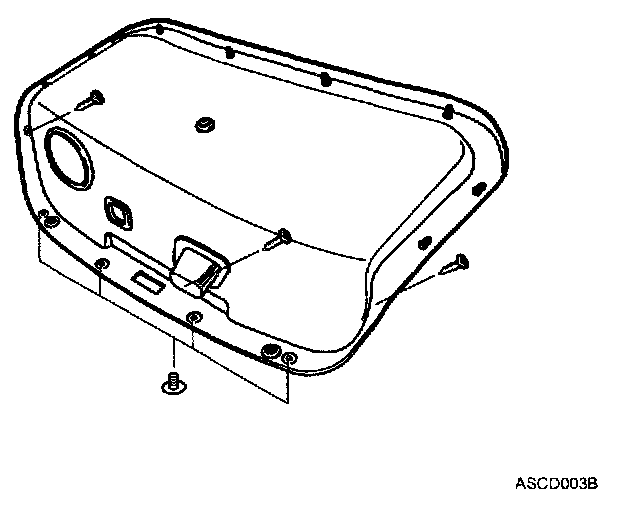

6. Loosen the fasteners(4) and screws(3) of trunk lid trim.

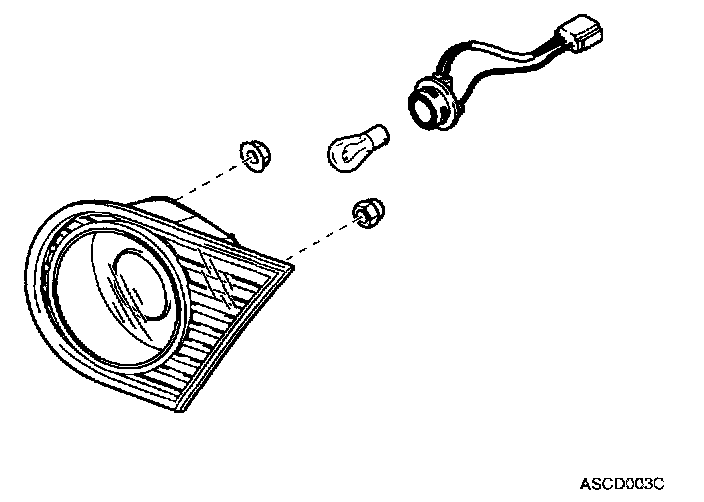

7. Loosen the nuts(4) of rear combination lamp(inner).
8. Disconnect the connector of rear combination lamp(inner).




9. Remove the rear combination lamp(inner).
10. Installation is reverse of removal.
