Instrument Cluster / Carrier: Service and Repair

REMOVAL AND INSTALLATION

1. Remove the negative(-) battery terminal.
2. Remove the crush pad plate after removing side mounting cover.

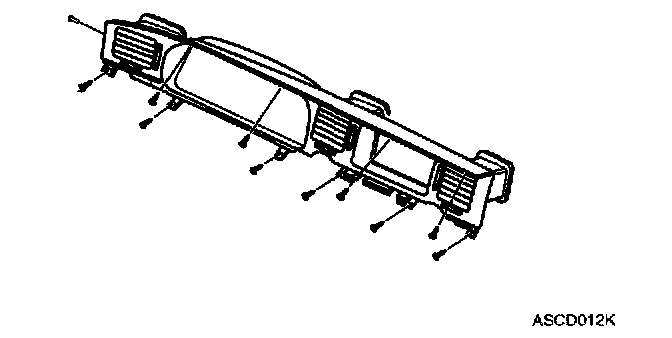

3. Remove the cluster facia panel after loosening the screw.

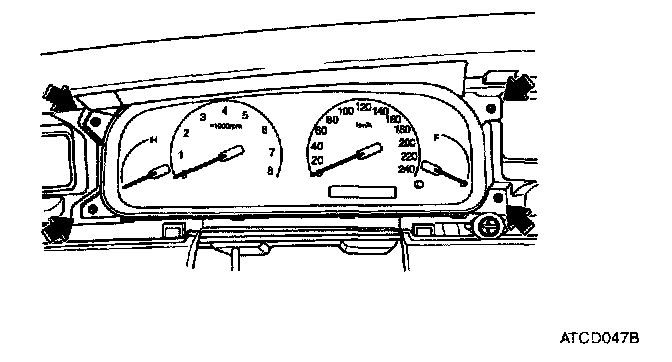

4. Remove the cluster after loosening screw.
5. Installation is reverse of removal.
