Condenser Fan: Testing and Inspection

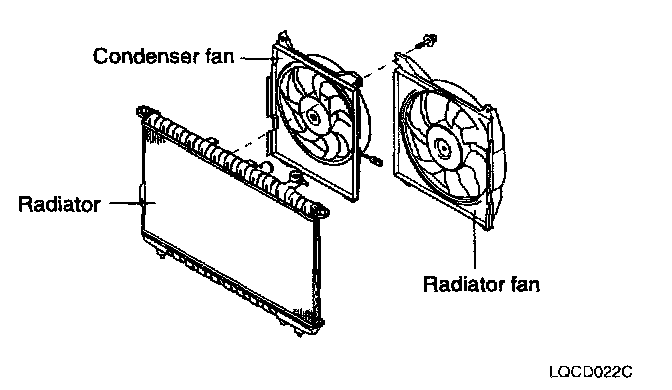

CONDENSER FAN

INSPECTION




1. Check the condenser fan for proper operation.




2. Check the harness connector.

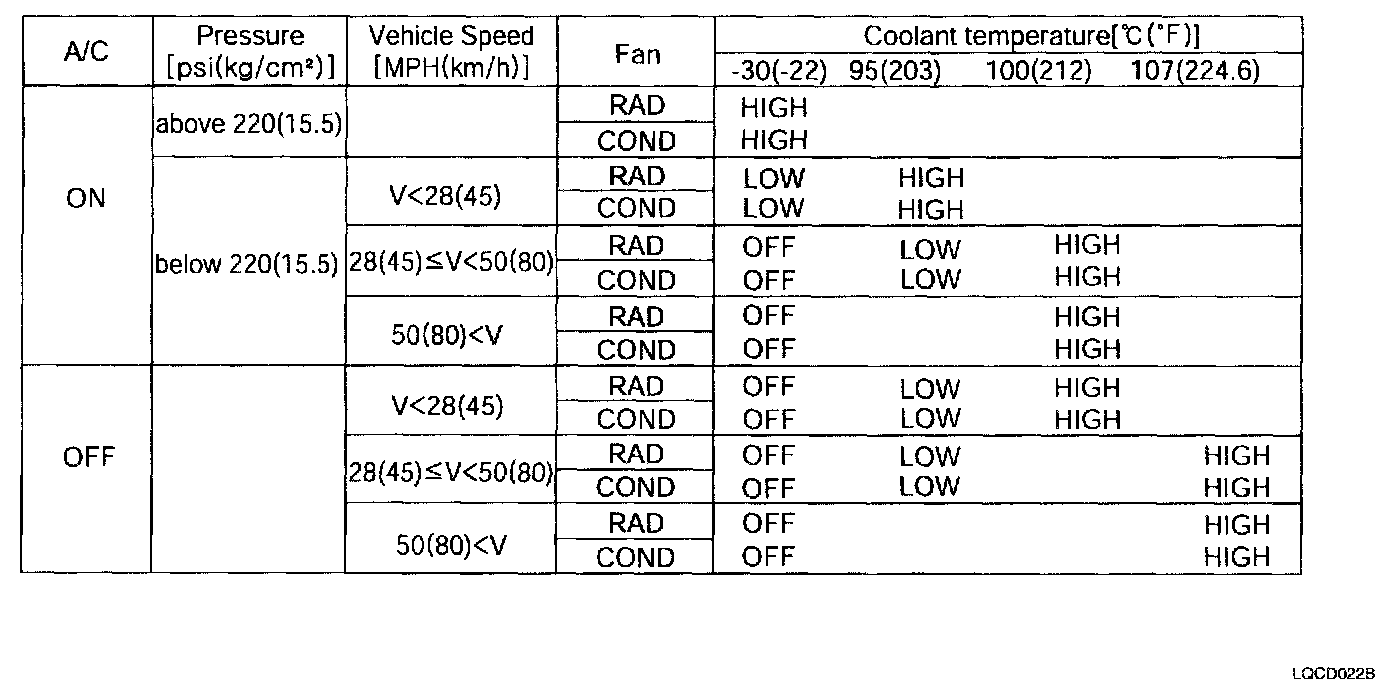

NOTE:
- Temperature tolerance : 5 °C (41 °F)
- Vehicle speed tolerance : 3 MPH(5 km/h)
- Both condenser and radiator are operated with high speed when coolant temperature failure.
- Compressor cut off tolerance : 115 °C ± 7 °C (239 °F ± 44.6 °F;

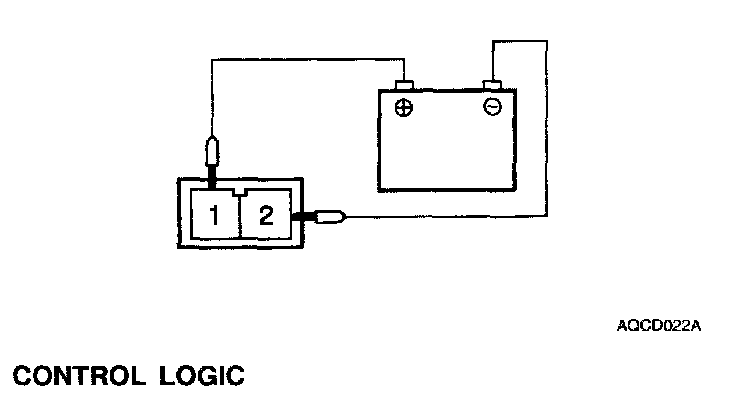

3. Check the condenser fan motor using battery voltage as shown.
