Home >> Kia >> 2006 >> Amanti V6-3.5L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Diagram Name >> Diagram O-2

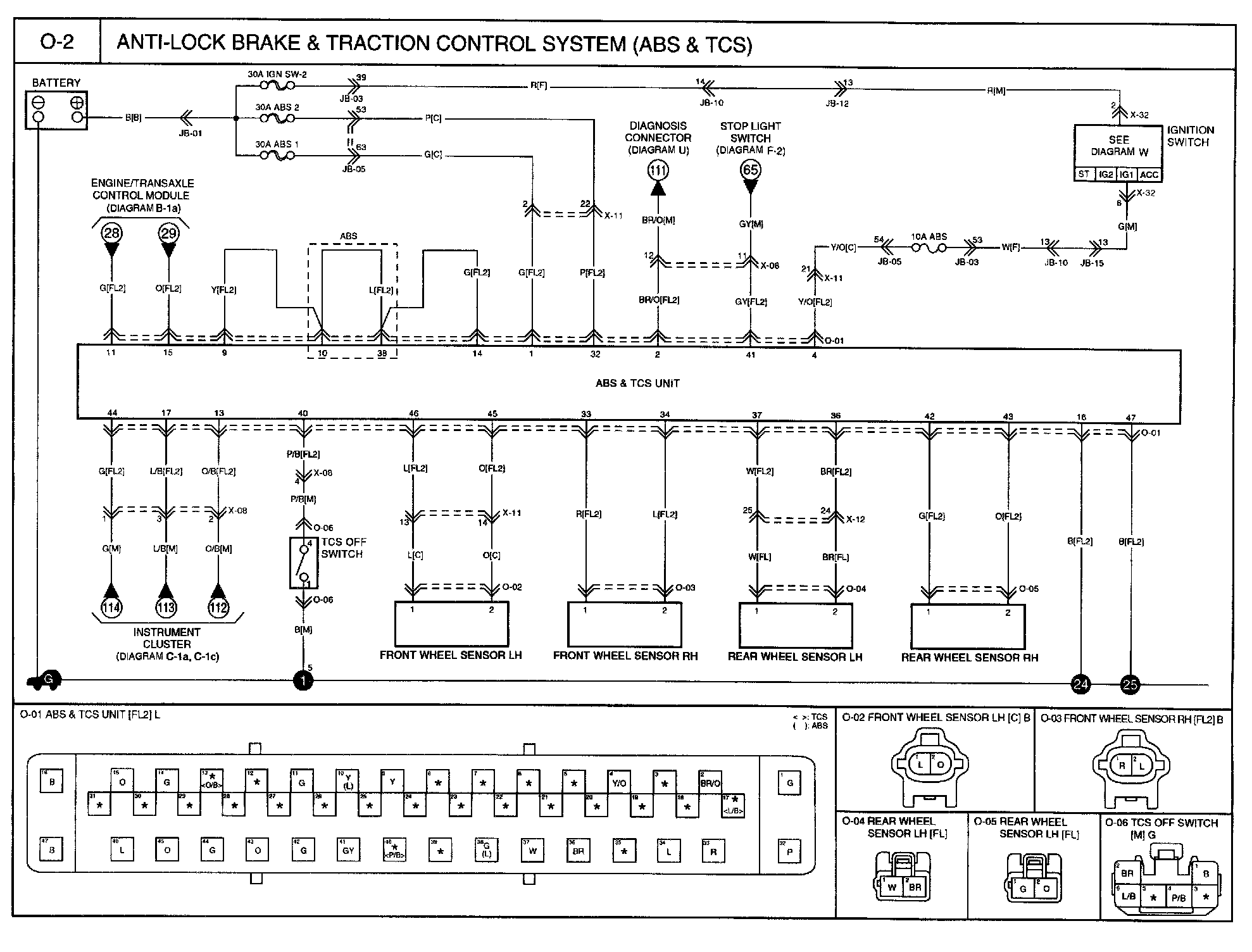

Diagram O-2

Diagram O-2:
