Home >> Kia >> 2006 >> Amanti V6-3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Multiple Junction Connector >> Common Connector >> X-06 - X-10

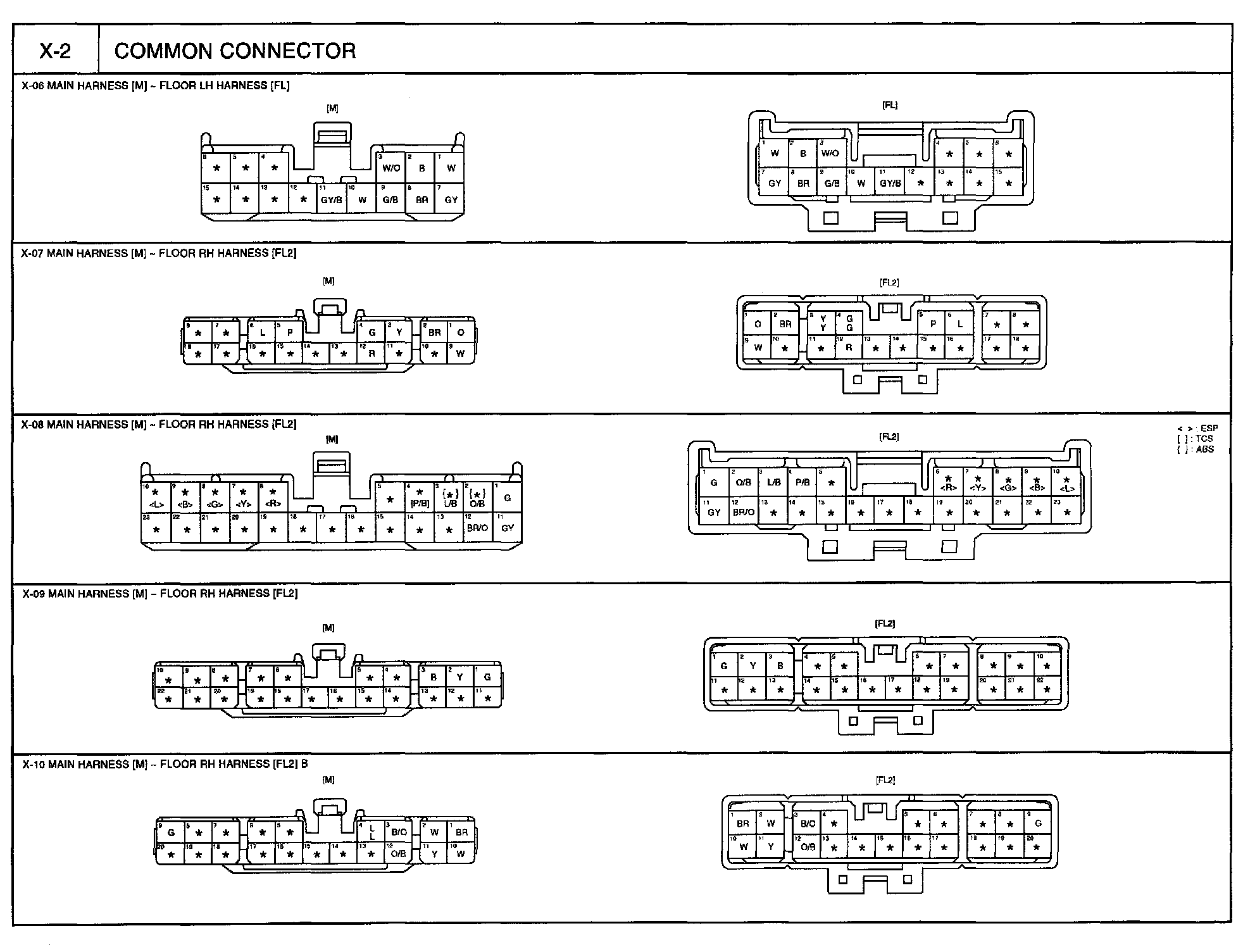

X-06 - X-10

X-06 - X-10:
