Rear Brake Disc Runout Check

REAR BRAKE DISC RUNOUT CHECK





1. Remove the caliper assembly to the carrier and suspend with a wire.
Tightening torque: 50 - 60 Nm (5.0 - 6.0 kg-m, 36 - 43 ft. lbs.)

NOTE: Do not remove the brake hose.

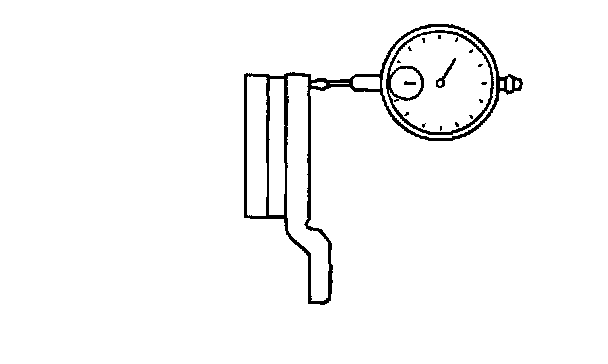

2. Place a dial gauge about 5 mm (0.2 inch) from the outer circumference of the brake disc, and measure the run out of the disc.
Brake disc run out
Limit: 0.03 mm (0.0012 inch) or less
