Front Brake Pad Check

FRONT BRAKE PAD CHECK

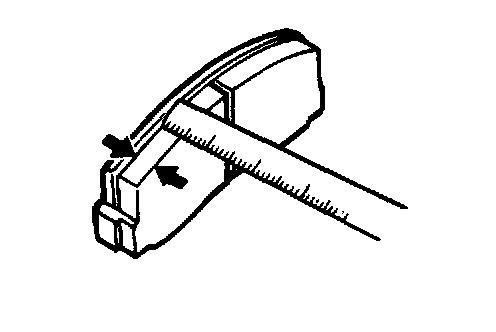

1. Check the pad wear. Measure the pad thickness and replace it. If it is less than the specified value.
Pad thickness
Specification: 10.5 mm (0.413 inch)
Service limit: 2.0 mm (0.079 inch)
2. Check that grease is applied, and the pad and backing metal are not damaged.
