Removal
REAR DISC BRAKEREMOVAL

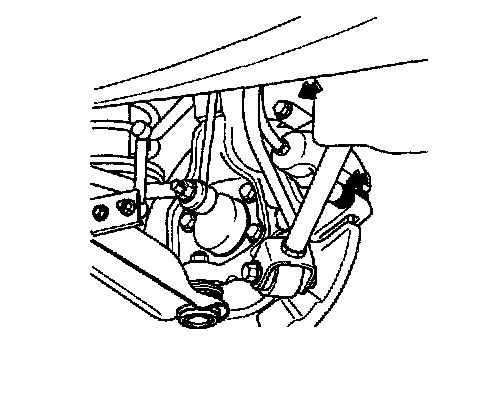

1. Remove the guide rod bolt, lift the caliper assembly up and suspend it with a wire.
2. Remove the following parts from the caliper support.
1) Pad assembly
2) Pad spring
3) Outer shim
REMOVAL
1. Remove the guide rod bolt, lift the caliper assembly up and suspend it with a wire.
2. Remove the following parts from the caliper support.
1) Pad assembly
2) Pad spring
3) Outer shim
