Removal
FRONT DISC BRAKEREMOVAL

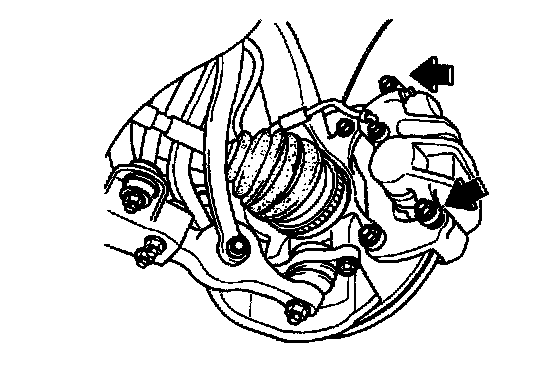

1. Remove the guide rod bolt, lift the caliper assembly up and suspend it with a wire.

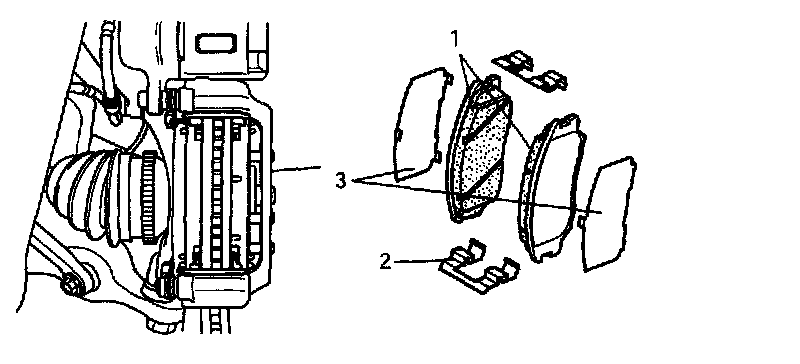

2. Remove the following parts from the caliper carrier.
1) Pad and wear sensor assembly
2) Pad spring
3) Outer shim
REMOVAL
1. Remove the guide rod bolt, lift the caliper assembly up and suspend it with a wire.
2. Remove the following parts from the caliper carrier.
1) Pad and wear sensor assembly
2) Pad spring
3) Outer shim
