Safety Concept

SAFETY CONCEPT





1) ABS

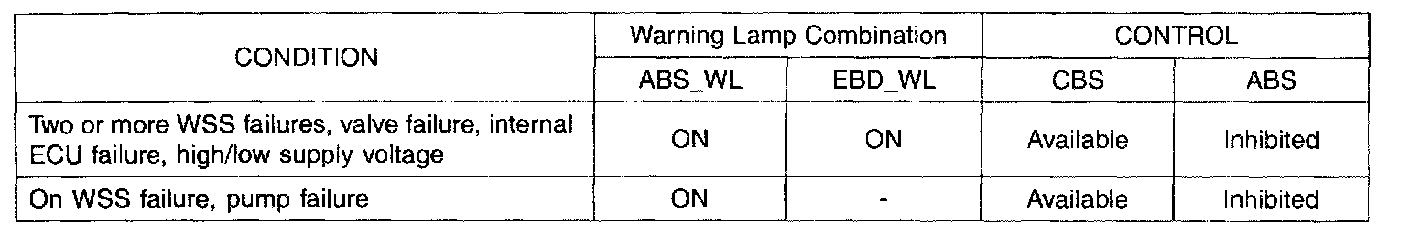

When any failures are occurred in the ABS system, the ABS ECU turns on the warning lamps and inhibits the control corresponding that as follows.
*) "-" means "Warning Lamp OFF"





2) TCS

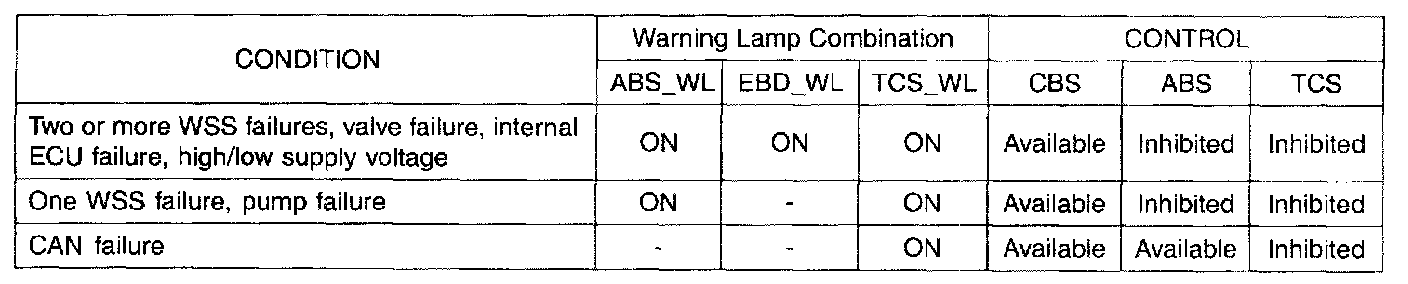

When any failures are occurred in the TCS system, the TCS ECU turns on the warning lamps and inhibits the control corresponding that as follows.
*) "-" means "Warning Lamp OFF"
