Warning Lamp & Function Lamp

WARNING LAMP & FUNCTION LAMP

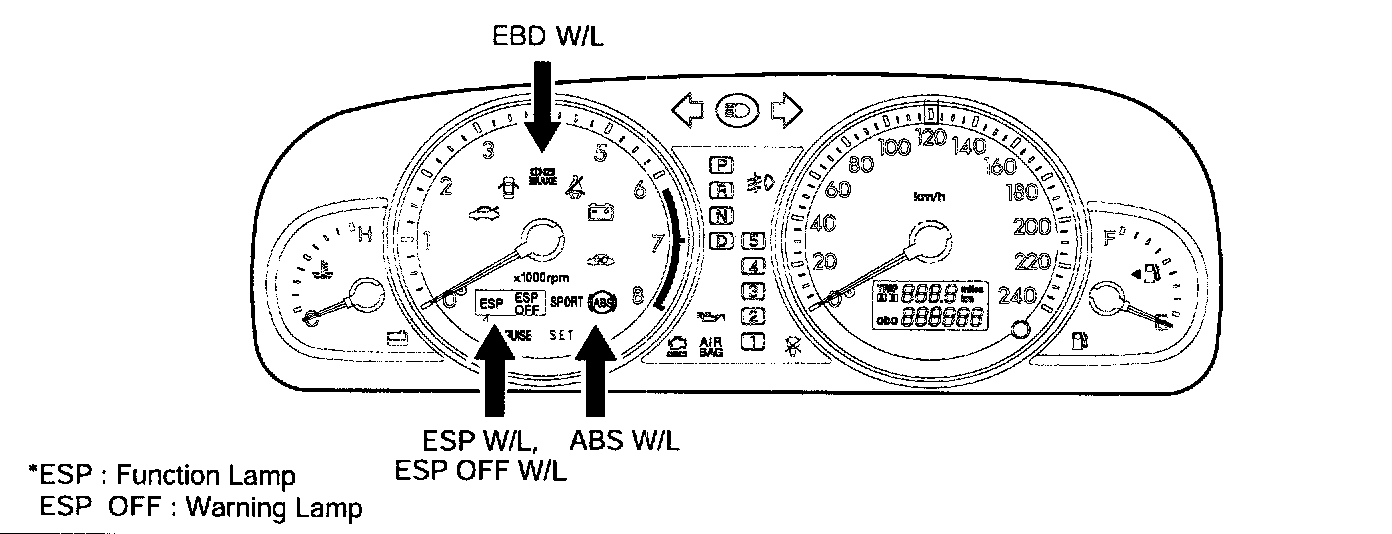

1. EBD warning lamp control
The EBD warning lamp indicates the operating condition of the EBD function. The EBD warning lamp is on:
^ During the initialization phase (3 seconds)
^ In the event of inhibition of EBD functions.
^ Depending on the warning lamp module, when the controller is switched off as long as voltage is applied at the ignition terminal (IG1).

2. ABS warning lamp control
The ABS warning lamp indicates the operating condition of the ABS function. The ABS warning lamp is on:
^ During the initialization phase (3 seconds)
^ In the event of inhibition of ABS functions
^ Depending on the warning lamp module, when the controller is switched off as long as voltage is applied at the ignition terminal (IG1).
^ During diagnostics.

3. TCS/ESP warning lamp control
The TCS/ESP warning lamp indicates the operating condition of the TCS/ESP function.
The TCS/ESP warning lamp is on:
^ During the initialization phase (3 seconds)
^ In the event of inhibition of TCS/ESP functions
^ During diagnostics.

4. TCS/ESP function lamp control
The TCS/ESP function lamp indicates the operating condition of the TCS/ESP function. The TCS/ESP function lamp is on:
^ During the initialization phase (3 seconds)

The TCS/ESP function lamp is blinking:
^ During TCS/ESP control
^ At the ESP off mode depending on ESP off switch, ESP control is available and ESP function lamp is blinking only when brake is turned on by driver.
