Rear Seat

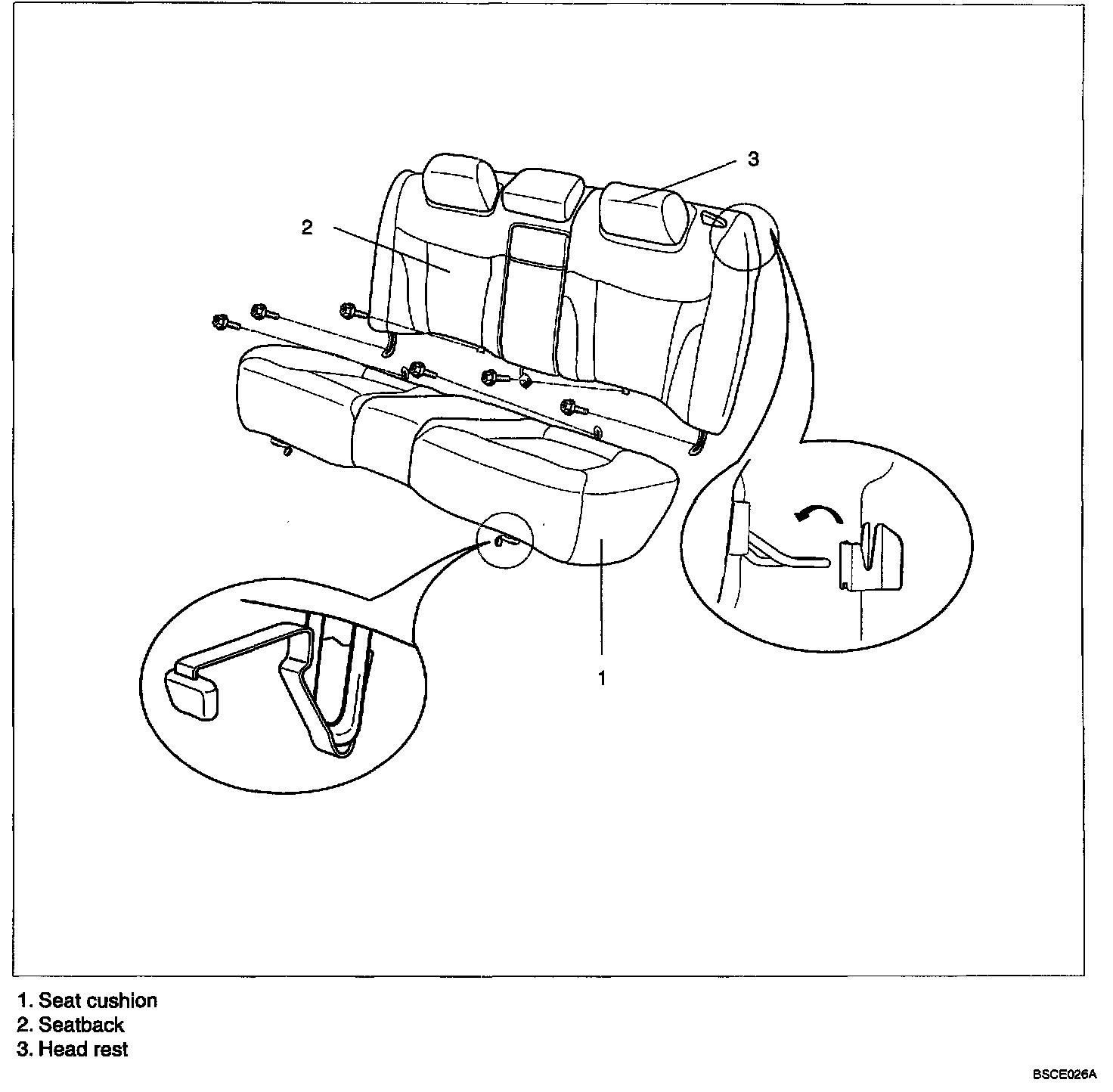

Rear Seat:

REMOVAL AND INSTALLATION

1. Remove rear seat cushion.

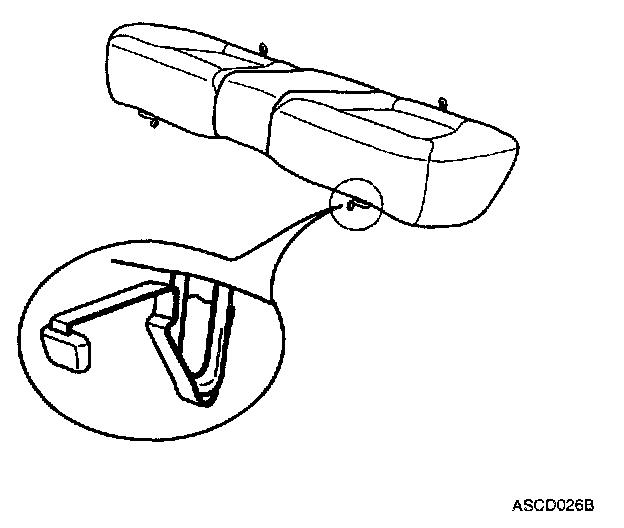

1. Release seat cushion stopper.

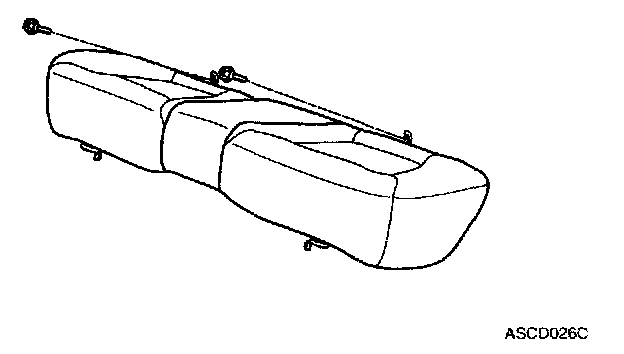

2. Remove seat cushion bolts(2).

Tightening torque:
17 - 26 N.m (1.7 - 2.6 Kg.m, 12.3 - 18.8 Ib.ft)

3. Disconnect seat cushion connector.

2. Remove rear seatback.

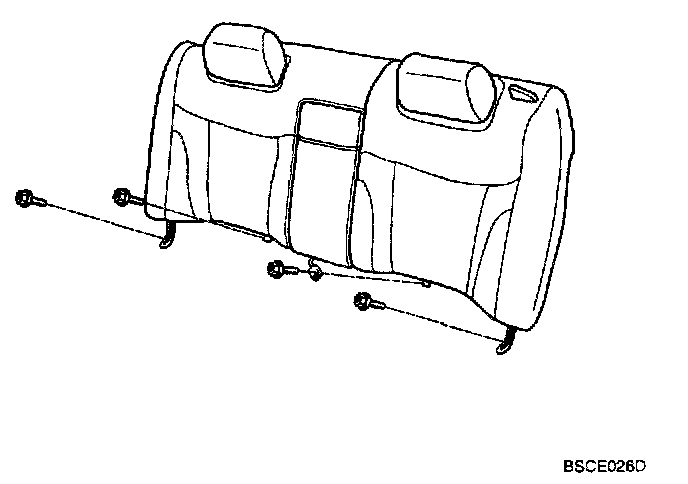

1. Remove seat back bolts(4).

Tightening torque:
17 - 26 N.m (1.7 - 2.6 Kg.m, 12.3 - 18.8 Ib.ft)

2. Disconnect seatback & airbag connector.

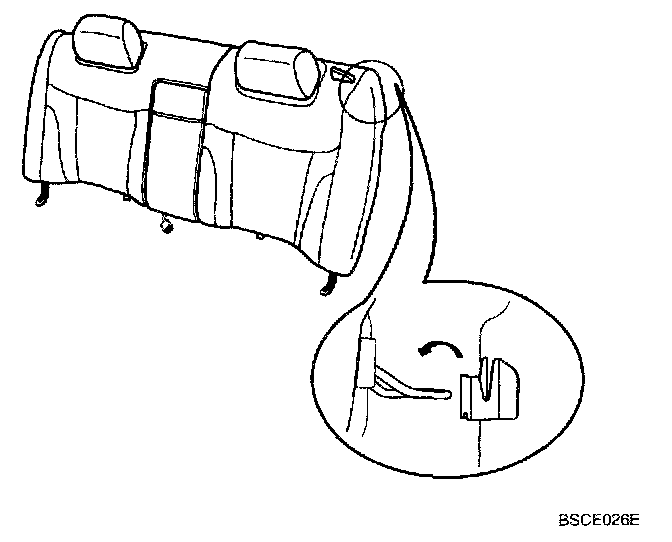

3. Release seatback stopper, and then remove seatback.

3. Install in reverse order of removal.
