Sunroof / Moonroof: Testing and Inspection

SUNROOF

INSPECTION

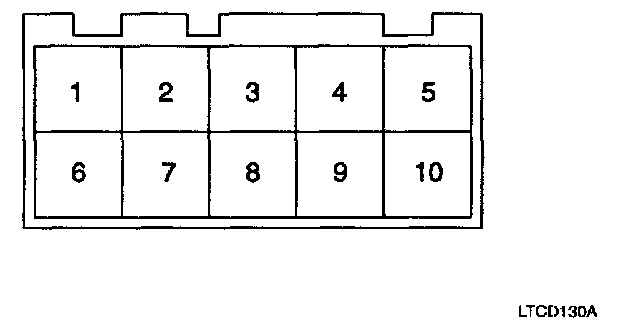

1. Apply the battery voltage to terminal 3, 6 and ground the terminal 1.

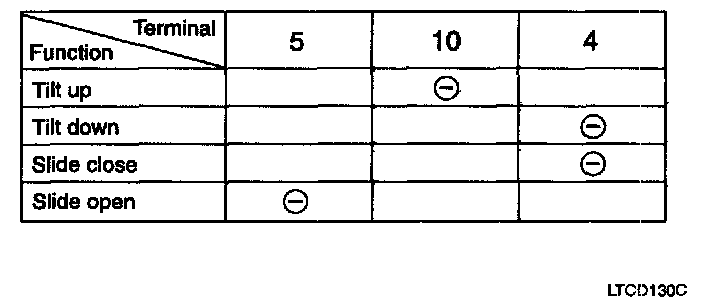

2. Ground the terminals, and check that the sunroof unit operates.

RESETTING THE SUNROOF

Whenever the vehicle battery is disconnected or discharged, or you use the emergency handle to operate the sunroof, you have to reset your sunroof system as follows:

1. Turn the ignition key to the ON position.

2. According to the position of the sunroof, do as follows.
1. In case that the sunroof has closed completely or been tilted.
: Press the TILT UP button for 1 second.
2. In case that the sunroof has slide-opened.
:Press and hold the CLOSE button for more than 5 seconds until the sunroof has closed completely. And then press the TILT UP button for 1 second.
3. Then, release it.
4. Press and hold the TILT UP button once again until the sunroof has returned to the original position of TILT UP after it is raised a little higher than the maximum TILT UP position.
5. Then, release it.
6. Press and hold the TILT UP button again until sunroof automatically is performing the following : Tilt down -> Slide open -> Slide close.
When this is complete, the sunroof system is reset.
