Overhaul

DISASSEMBLY

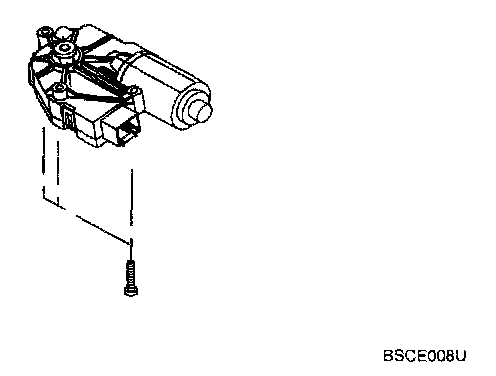

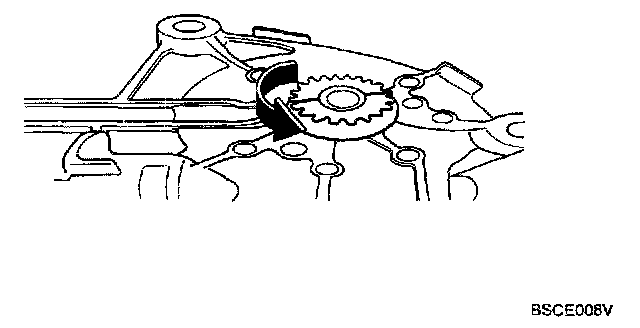

1. Remove motor.

CAUTION: When removing the motor, the guide assembly should always be in the fully closed position.




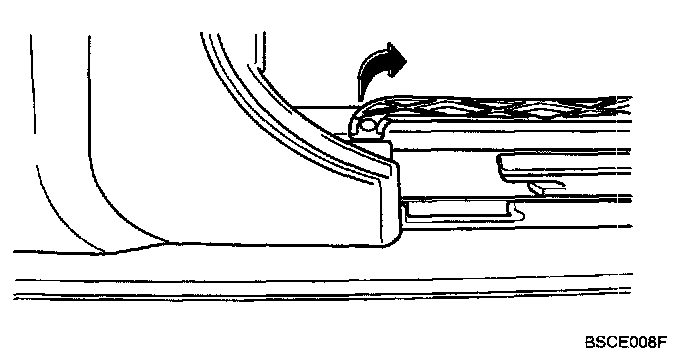

2. Remove drip link.

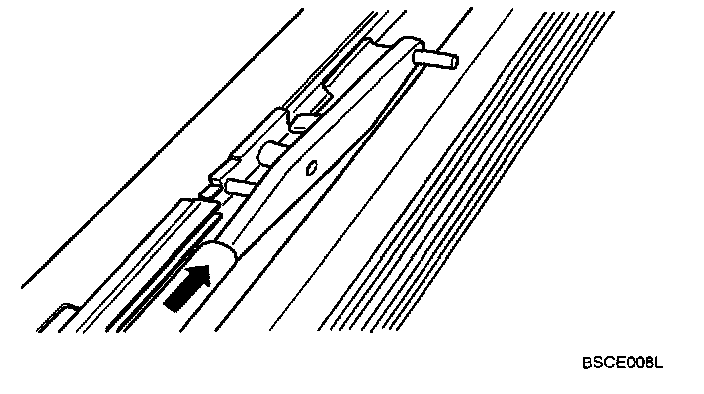

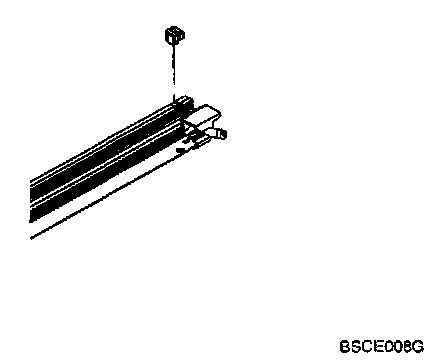

3. Remove stopper.

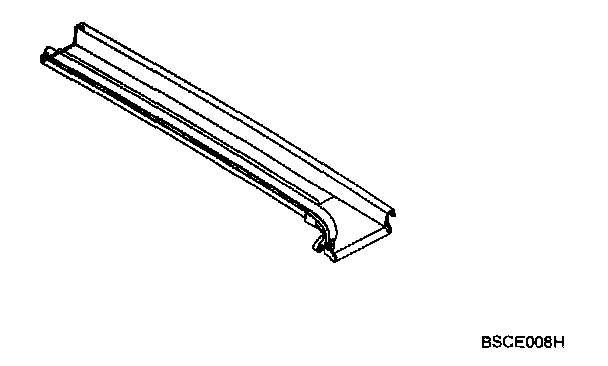

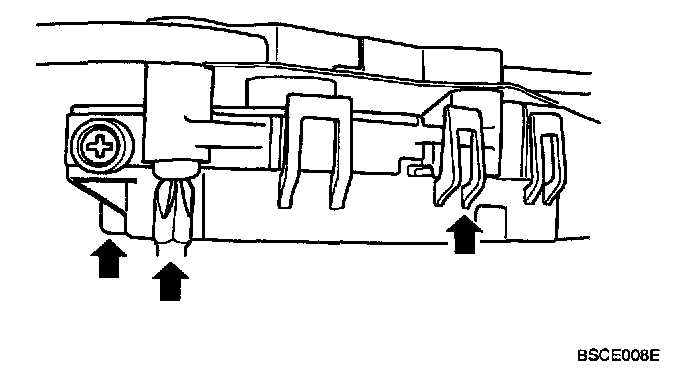

4. Remove drip rail.

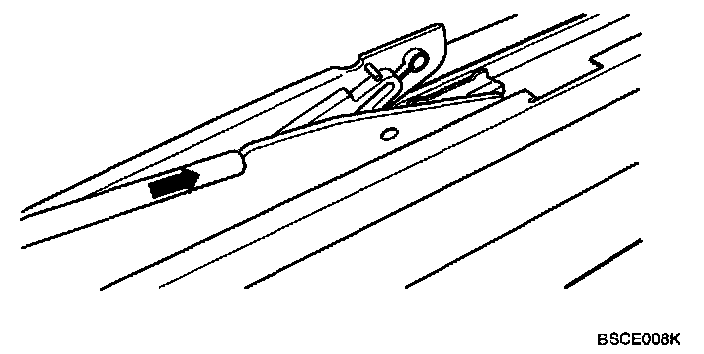

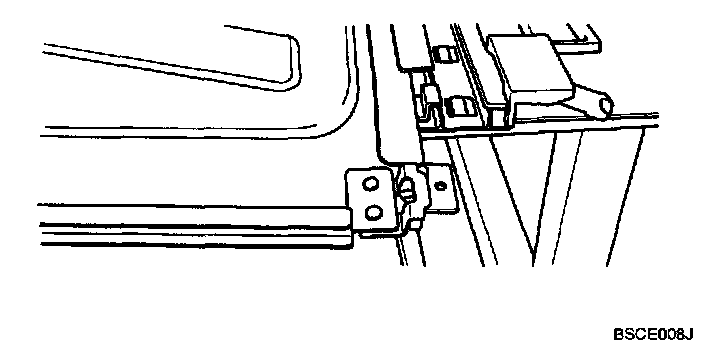

5. Remove sunshade.

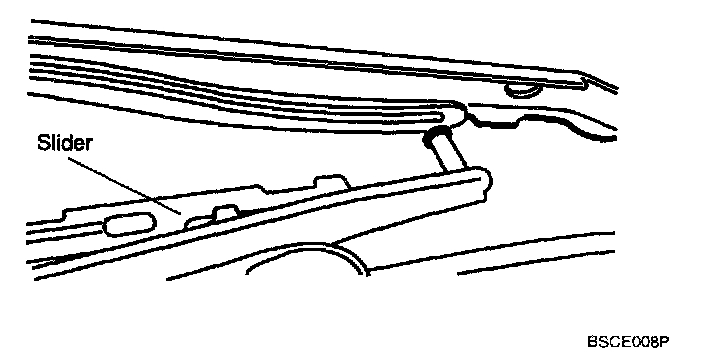

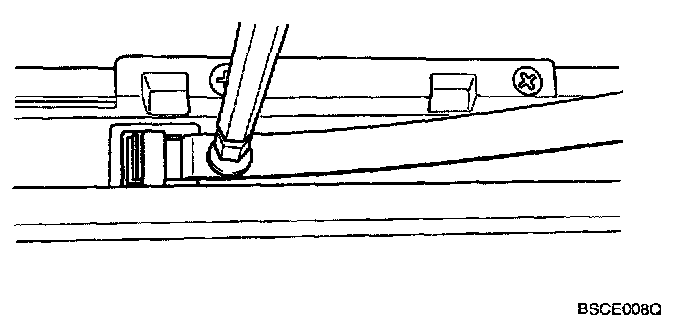

6. Remove slider.

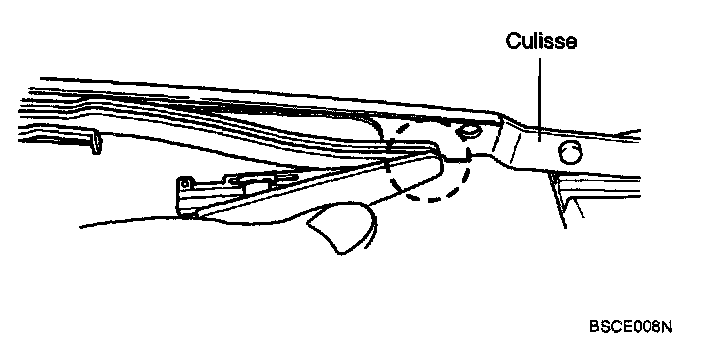

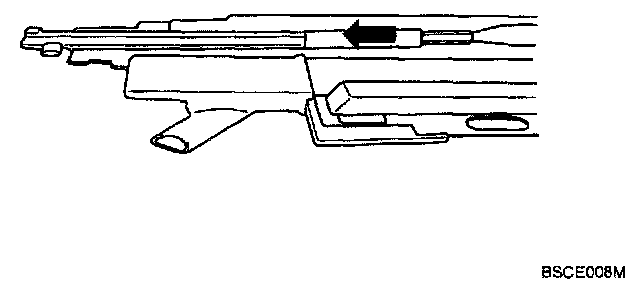

7. Remove culisse and slider.




8. Remove deflector.

REASSEMBLY

1. Install in reverse order of removal.

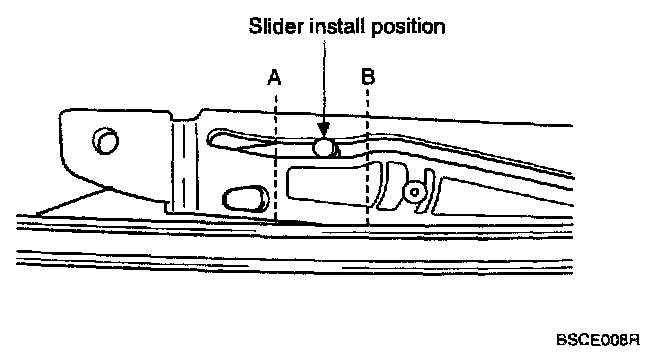

2. Align the position of slider when installing the motor.

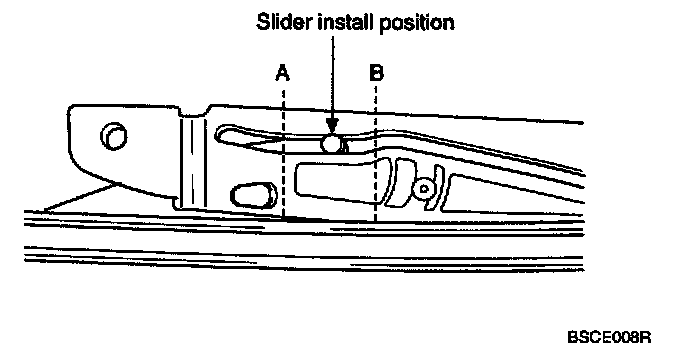

: Be sure to align the center 'A' and 'B'.

3. In case that "TILT" doesn't operate when pressing TILT switch after the sunroof is closed on vehicle, refer to the following procedures.




1. Remove sunroof motor.




2. Adjust the motor to the stopping point, pressing the close switch.




3. Install motor after adjusting the position of slide as shown in the figure.
4. Initialize motor according to the way of initialization.
