Removal and Replacement

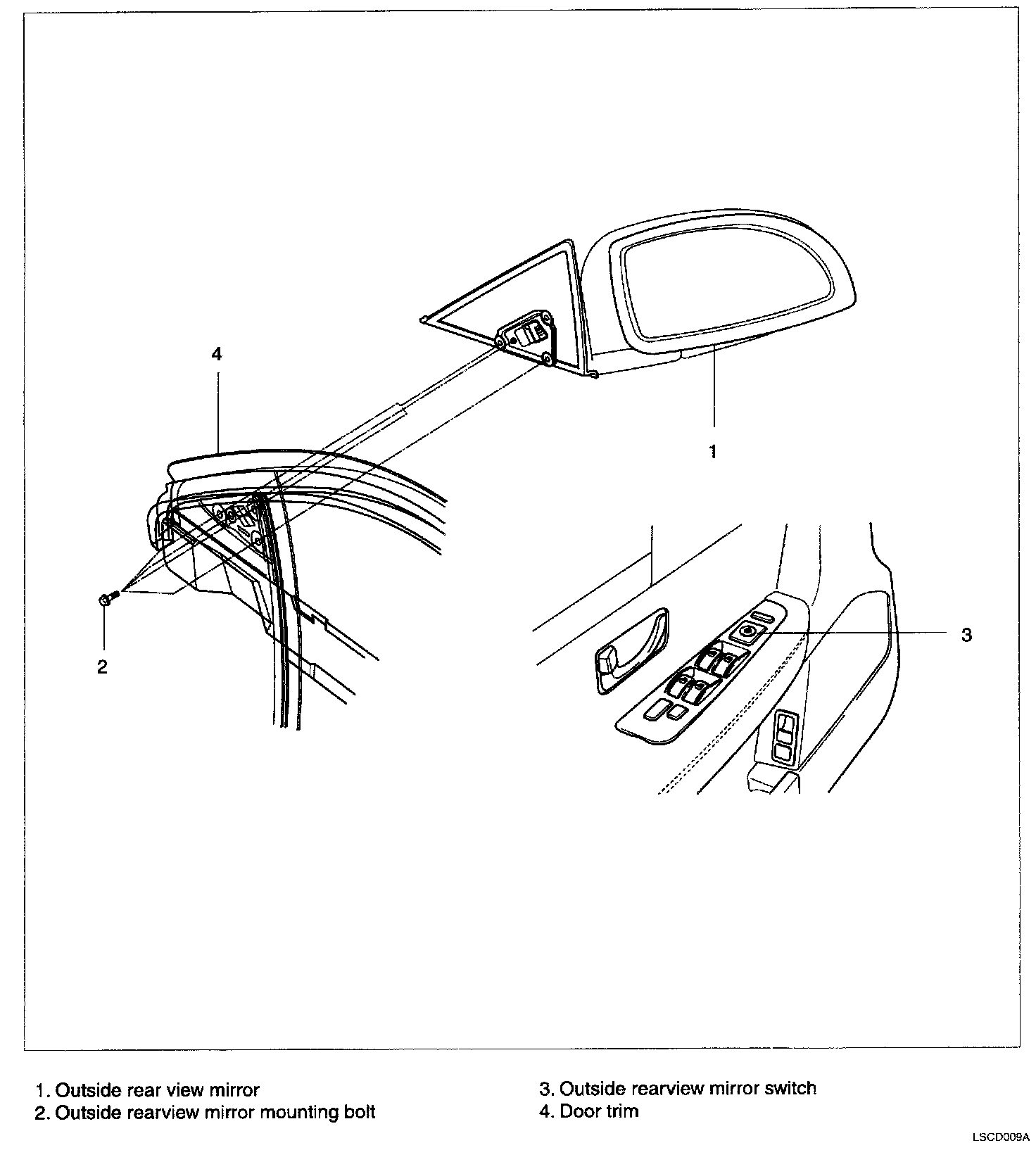

Outside Rear View Mirror:

REMOVAL AND INSTALLATION

1. Disconnect negative battery terminal.

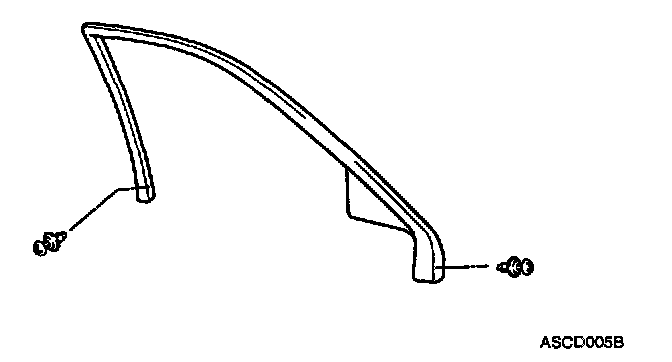

2. Remove door frame inner cover.

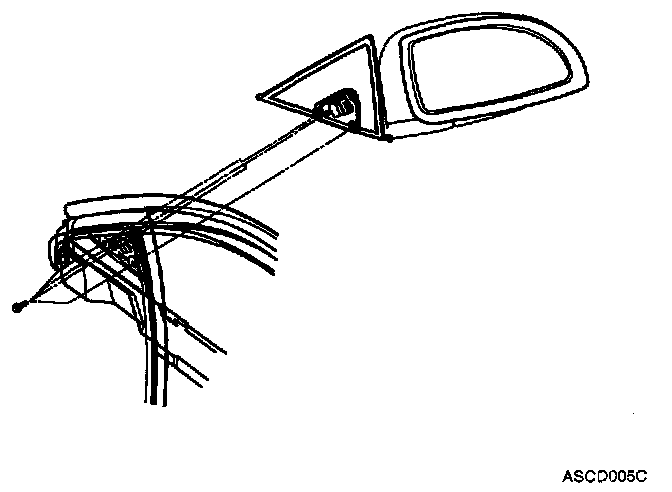

3. Remove outside rearview mirror.

1. Remove outside rearview mirror screws(3).

Tightening torque:
7 - 11 N.m (0.7 - 1.1 Kg.m, 5.1 - 8.0 Ib.ft)

2. Remove outside rearview mirror clip(1).
3. Disconnect mirror connector.

4. Install in reverse order of removal.
