Keyless Entry Transmitter: Testing and Inspection

TRANSMITTER CODE SAVING METHOD

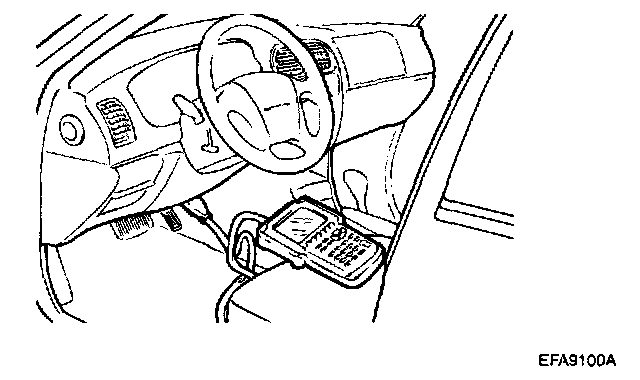

1. To store transmitter code, connect Hi-scan adapter to the OBD connector (16 pin) in driver side crash pad lower panel, turn the power on Hi-scan.
2. Select "Amanti" and then do "CODE SAVING".




3. After selecting "CODE SAVING" menu, button "ENTER" key, then the screen will be shown as above.

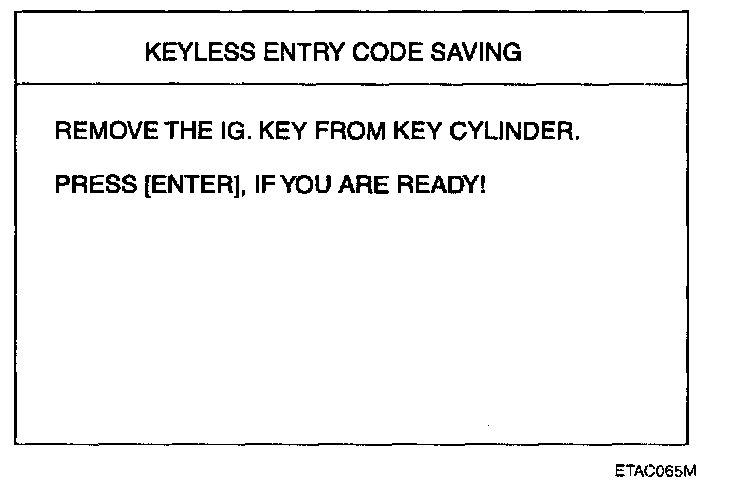

4. After removing the ignition key from key cylinder, push "ENTER" key to proceed to the next mode for code saving.

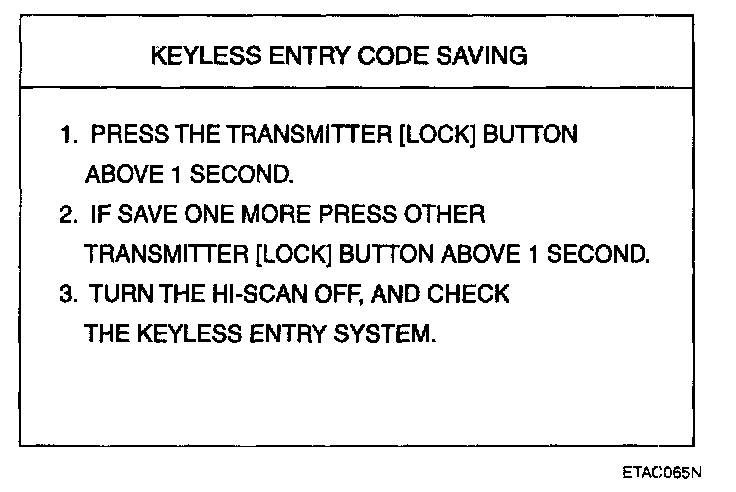

5. Follow steps 1 to 3 and then code saving is completed.

NOTE: If button is pushed twice, code saving procedure wilt be finished when the first transmitter code saving.

6. Disconnect Hi-scan adapter from OBD connector and then check the function of transmitter.

NOTE: Once the coding procedure is finished, the operator has to push the door lock button of each coded transmitter to check transmitters are operational, a door lock / unlock action is done.
