Front Door Striker: Adjustments

DOOR STRIKER

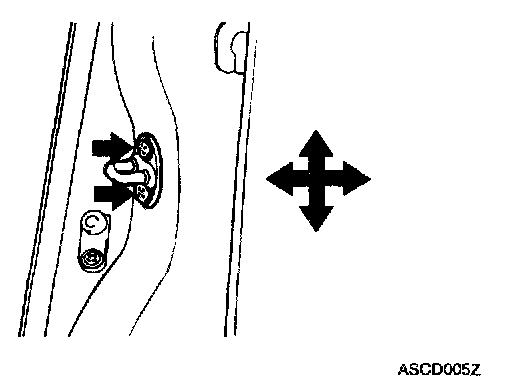

1. Check that the door can be closed easily and properly. If there is a problem, loosen the striker mounting bolts and adjust the door by moving the striker vertically or horizontally.

Tightening torque:
17 - 22 N.m (1.7 - 2.2 Kg.m, 12.3 - 15.9 Ib.ft)

2. Adjust the rear offset of the door to the body by moving the striker horizontally.
