Electronic Stability Program (ESP) System

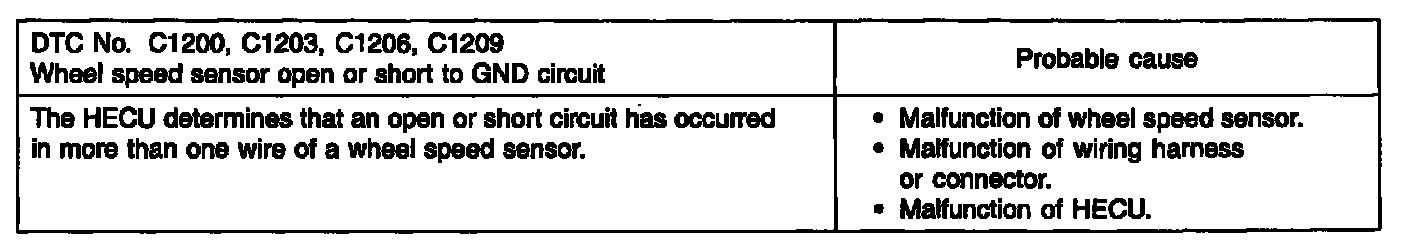

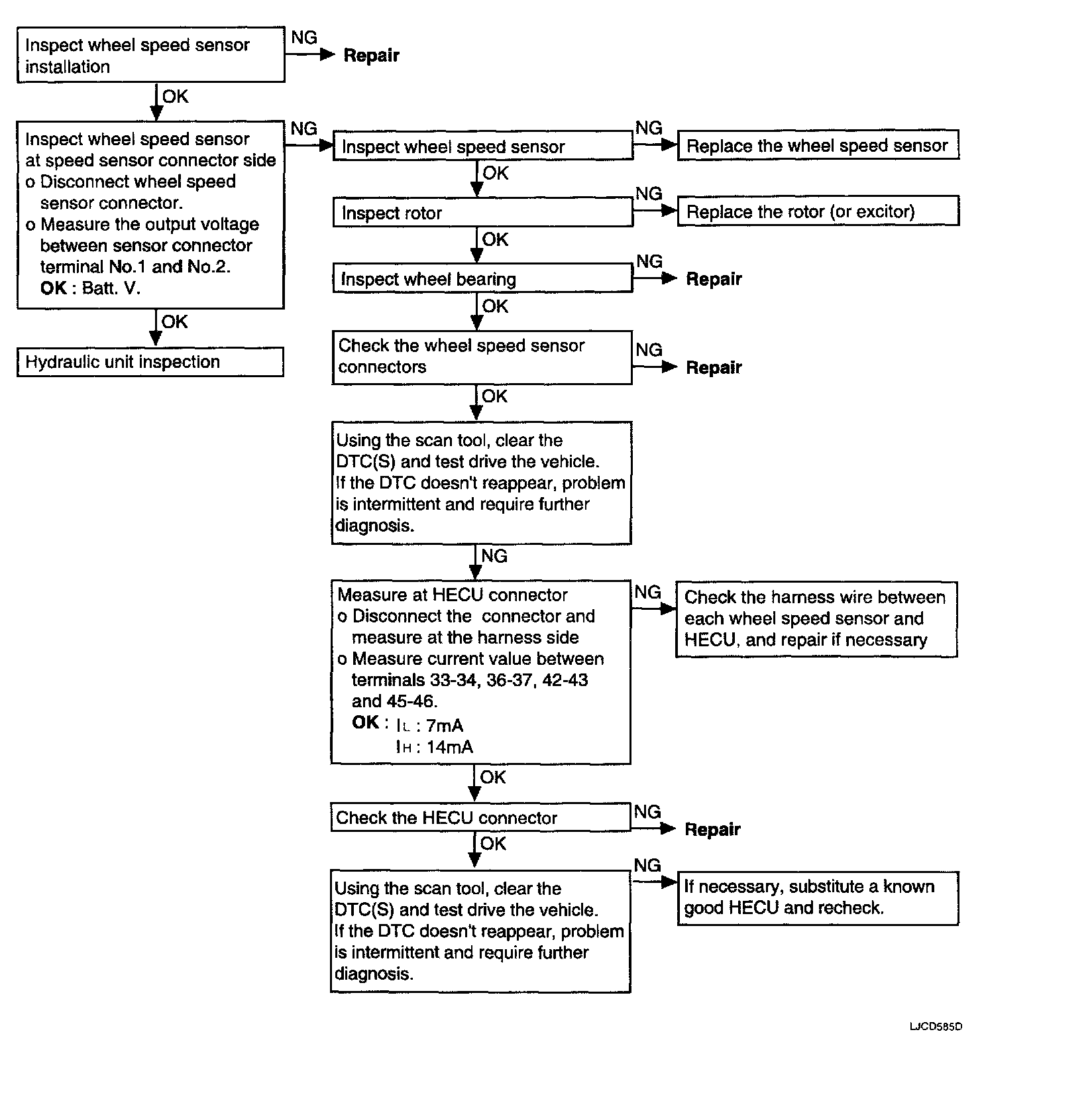

WHEEL SPEED SENSOR OPEN OR SHORT








NOTE:

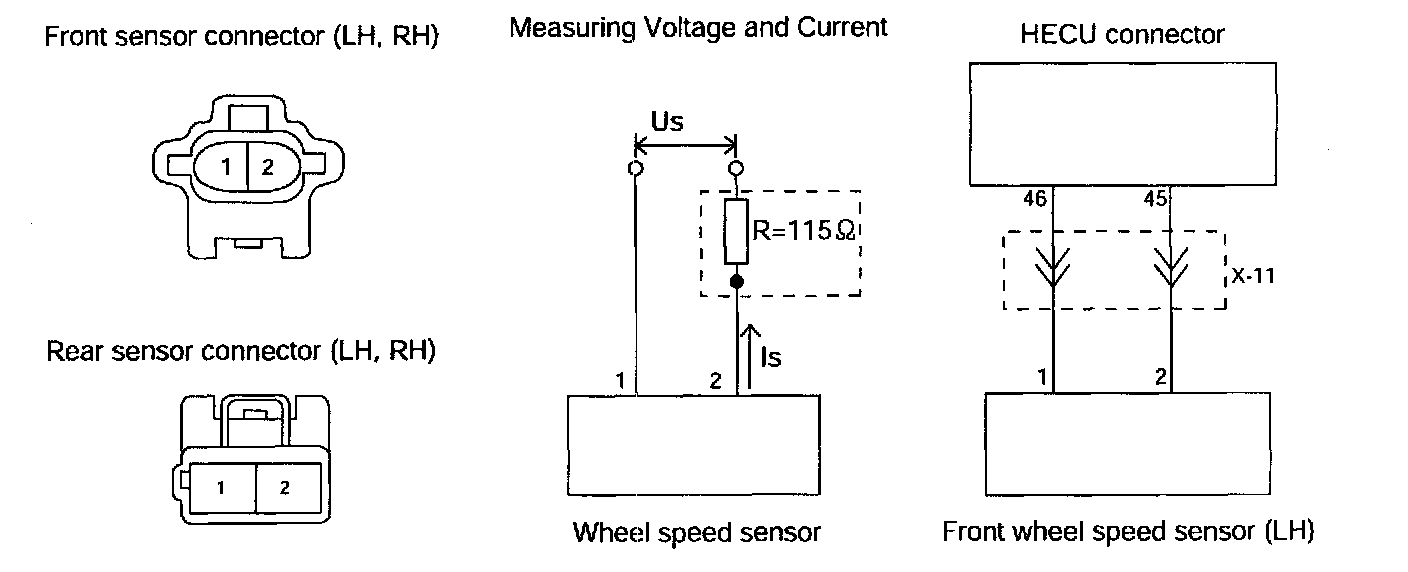

^ When measuring sensor current and operating voltage value, be sure to install resistance (R=115 Ohms) at active wheel sensor to prevent sensor damaging.
^ Be sure to remove resistance (R=115 Ohms) from sensor wiring harness after measuring, or ABS warning lamp will be turned ON.
