B2502

DTC B2502 Telltale Lamp Failure

DESCRIPTION

The Telltale Lamp circuit consists of the Telltale Lamp and the SRSCM. SRSCM set the above DTC that the Telltale Lamp failure is detected.

DTC Detecting Condition:

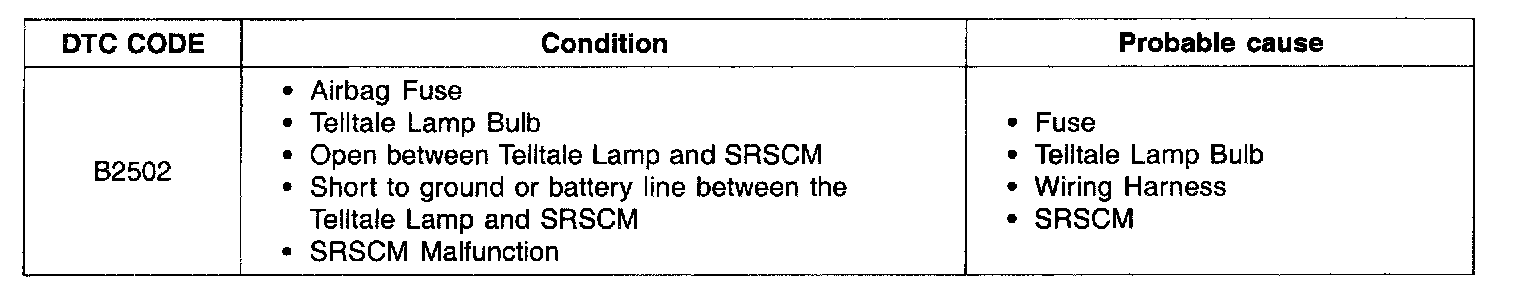

DTC DETECTING CONDITION

Schematic Diagram:

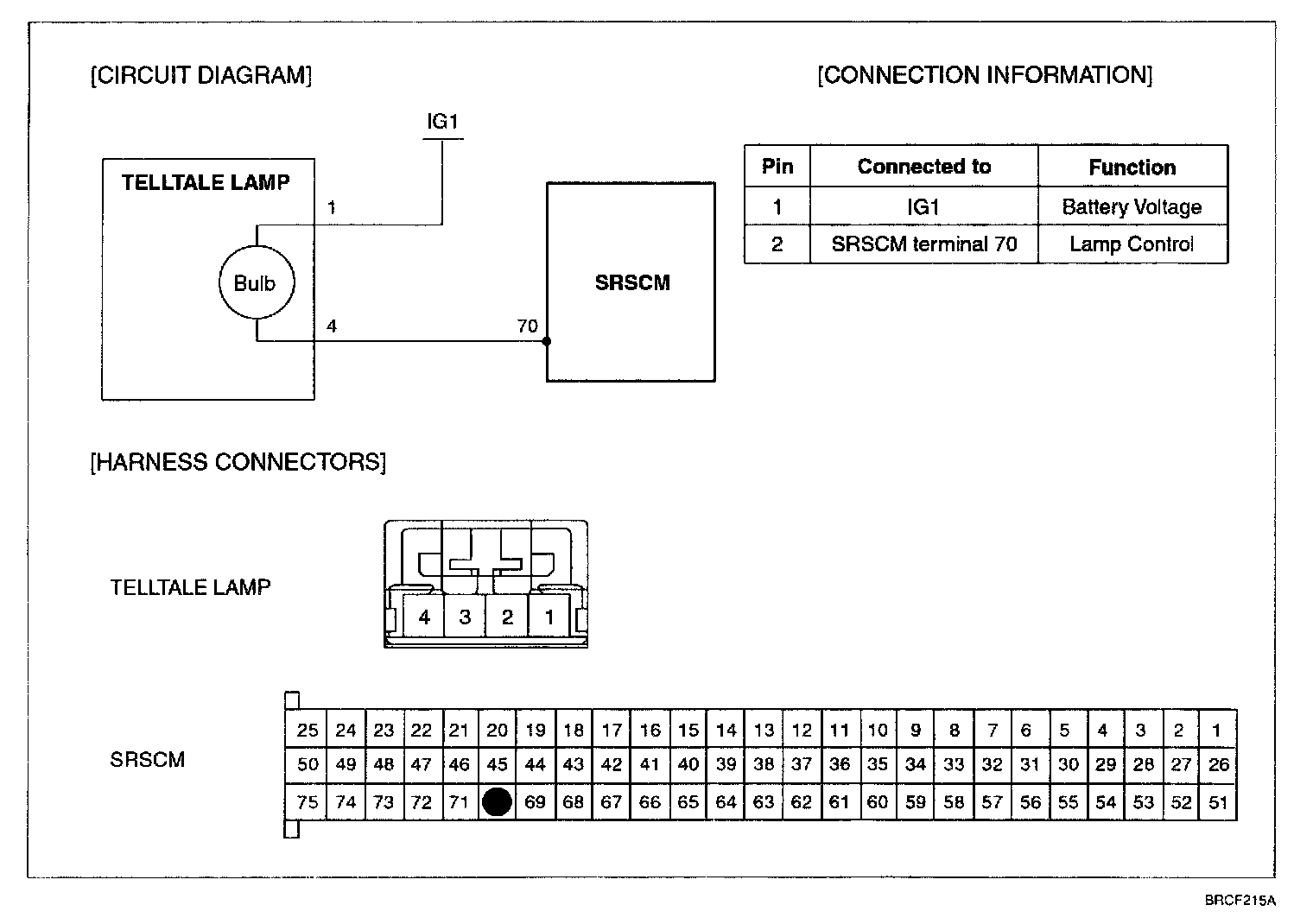

SCHEMATIC DIAGRAM

Step 1 - 3:

Step 4 - 6:

Step 7 - 8:

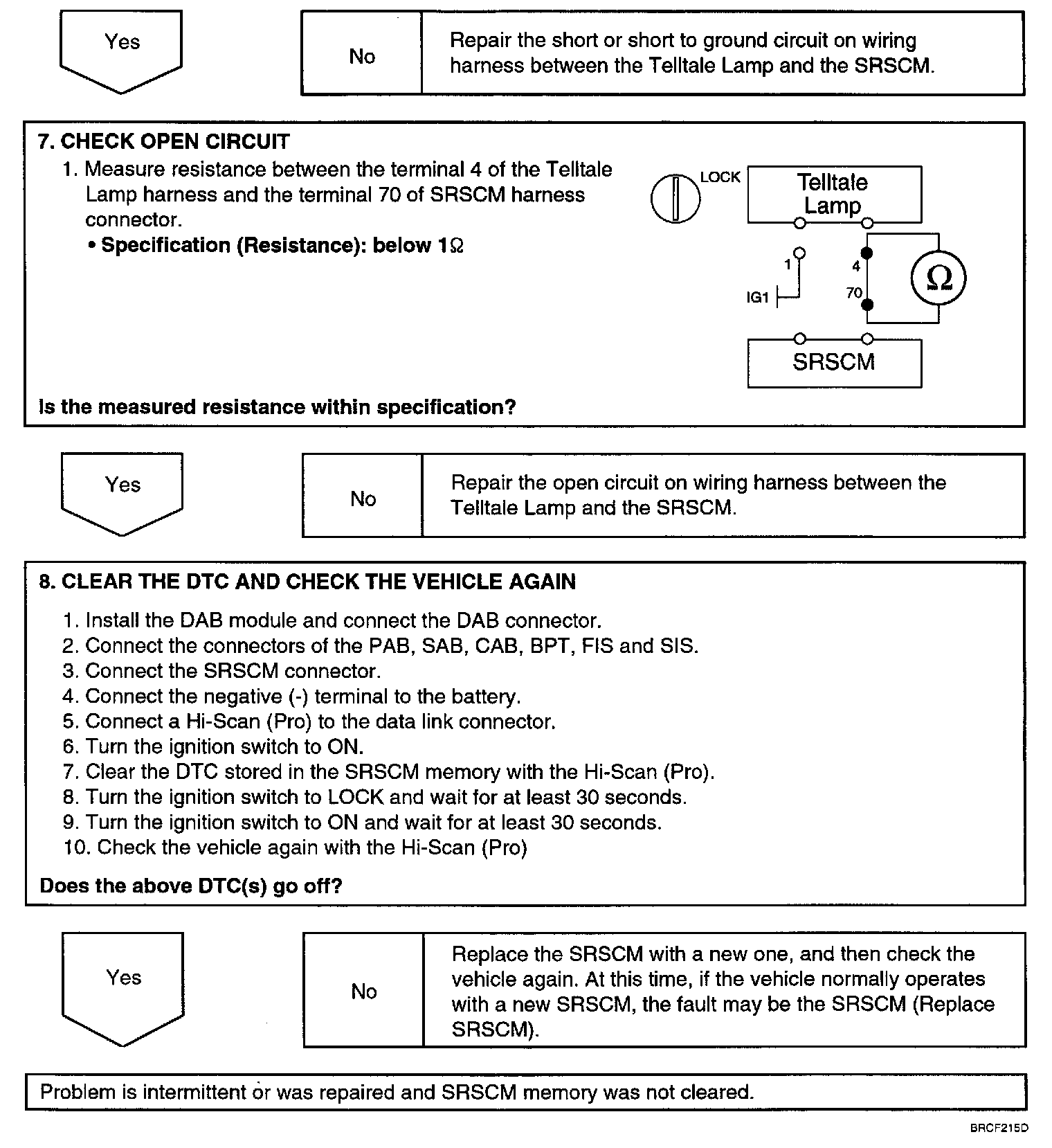

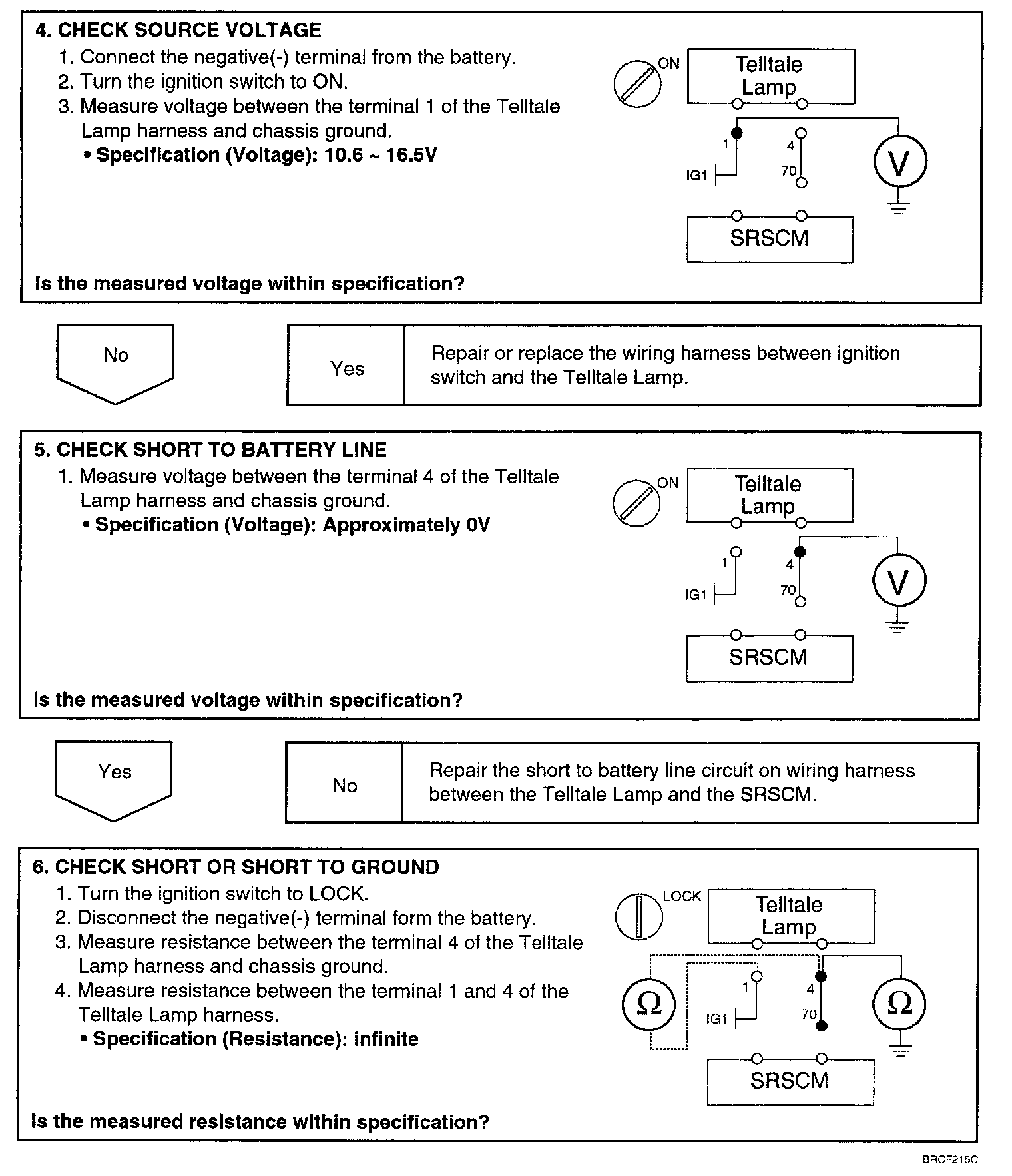

INSPECTION PROCEDURE
