B1487

DTC B1487 (2nd Stage) Passenger Airbag Circuit Short to Ground

DESCRIPTION

The Passenger Airbag circuit consists of the SRSCM and the Passenger Airbag (PAB) which has two squib circuits. The SRSCM sets above DTC(s) if it detects short to ground on the PAB circuit.

DTC Detecting Condition:

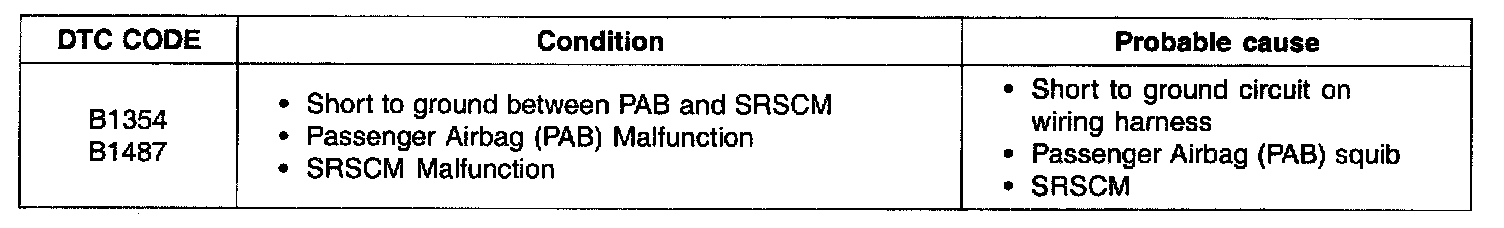

DTC DETECTING CONDITION

Schematic Diagram:

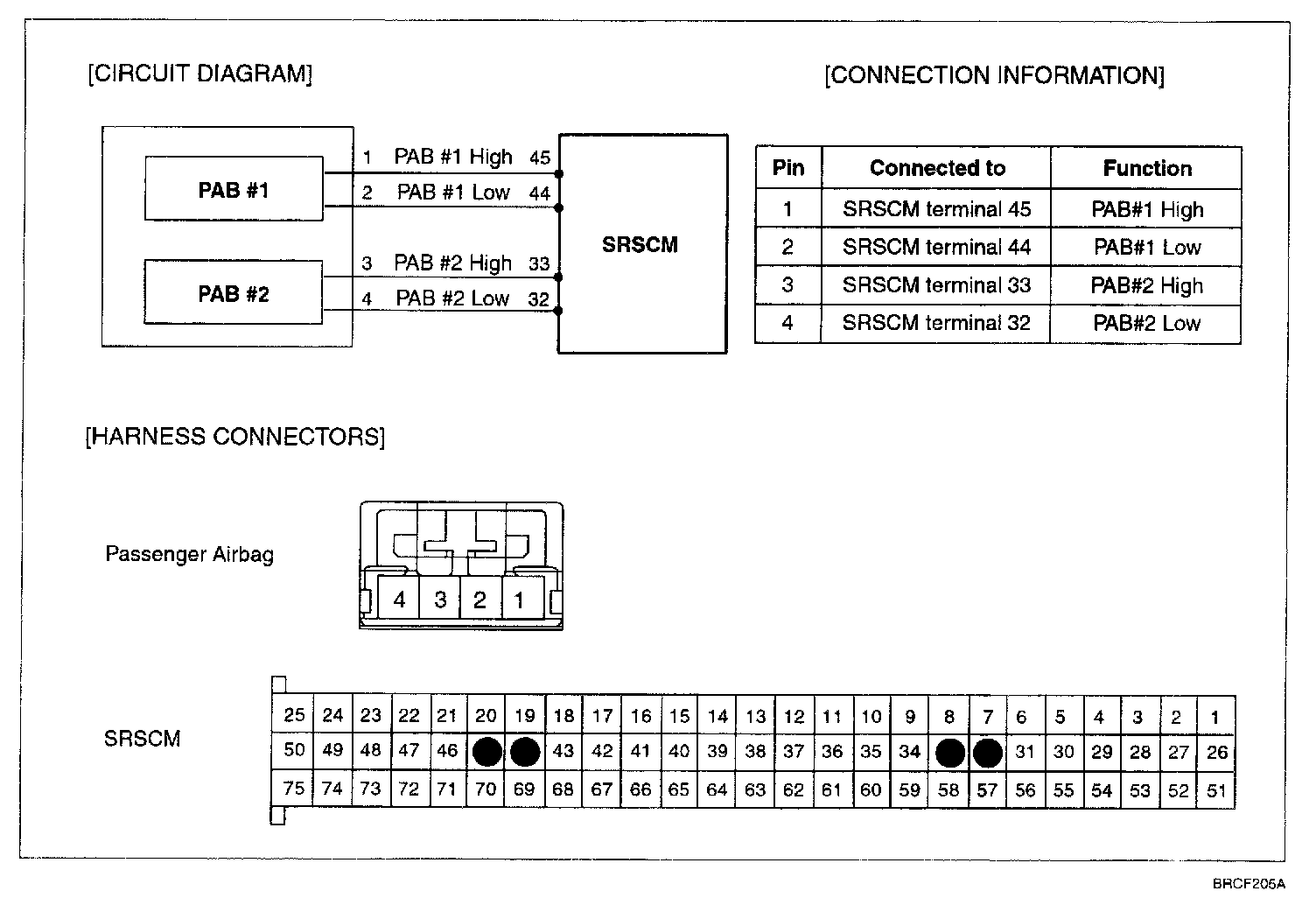

SCHEMATIC DIAGRAM

Step 1 - 3:

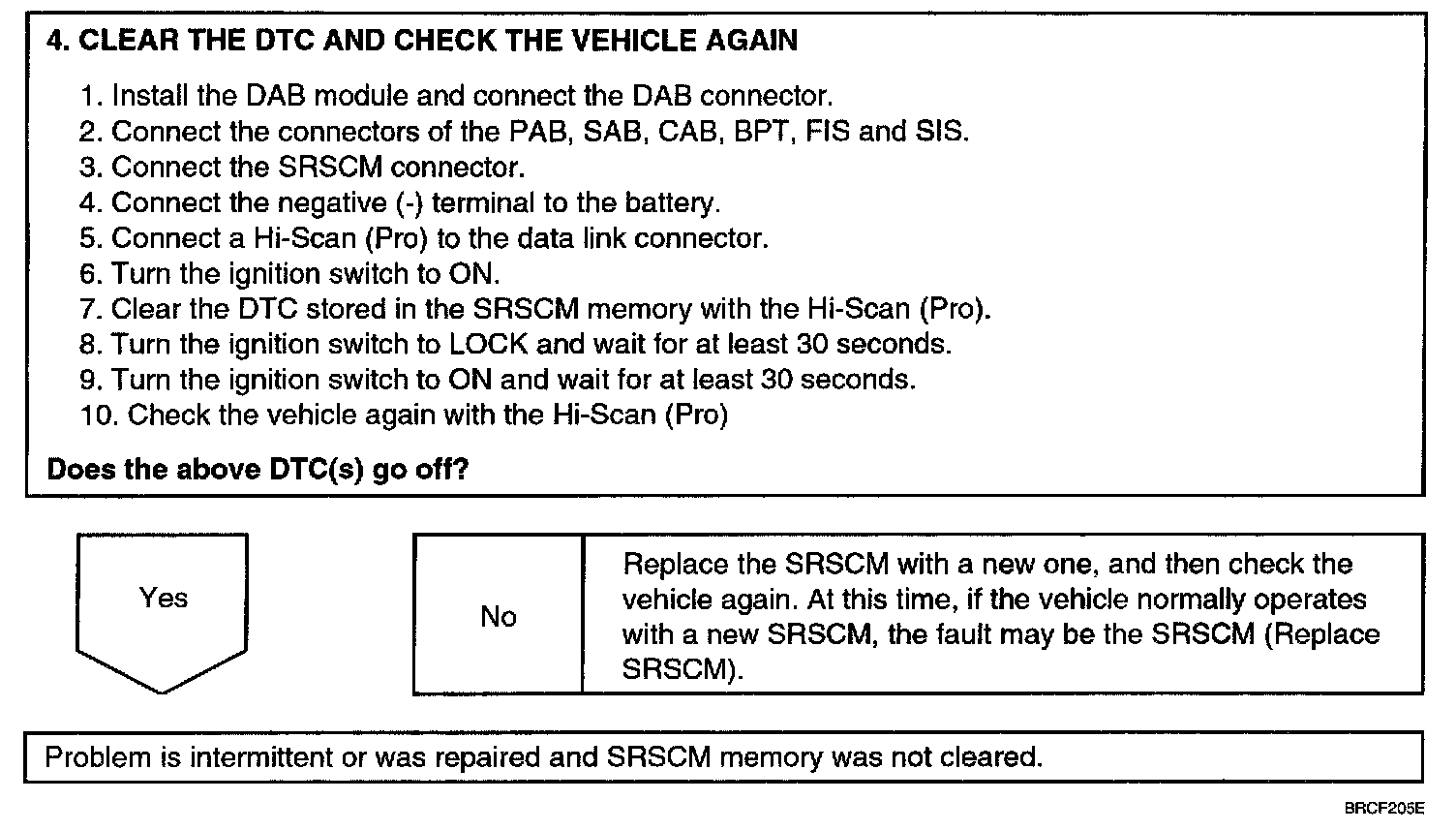

Step 4:

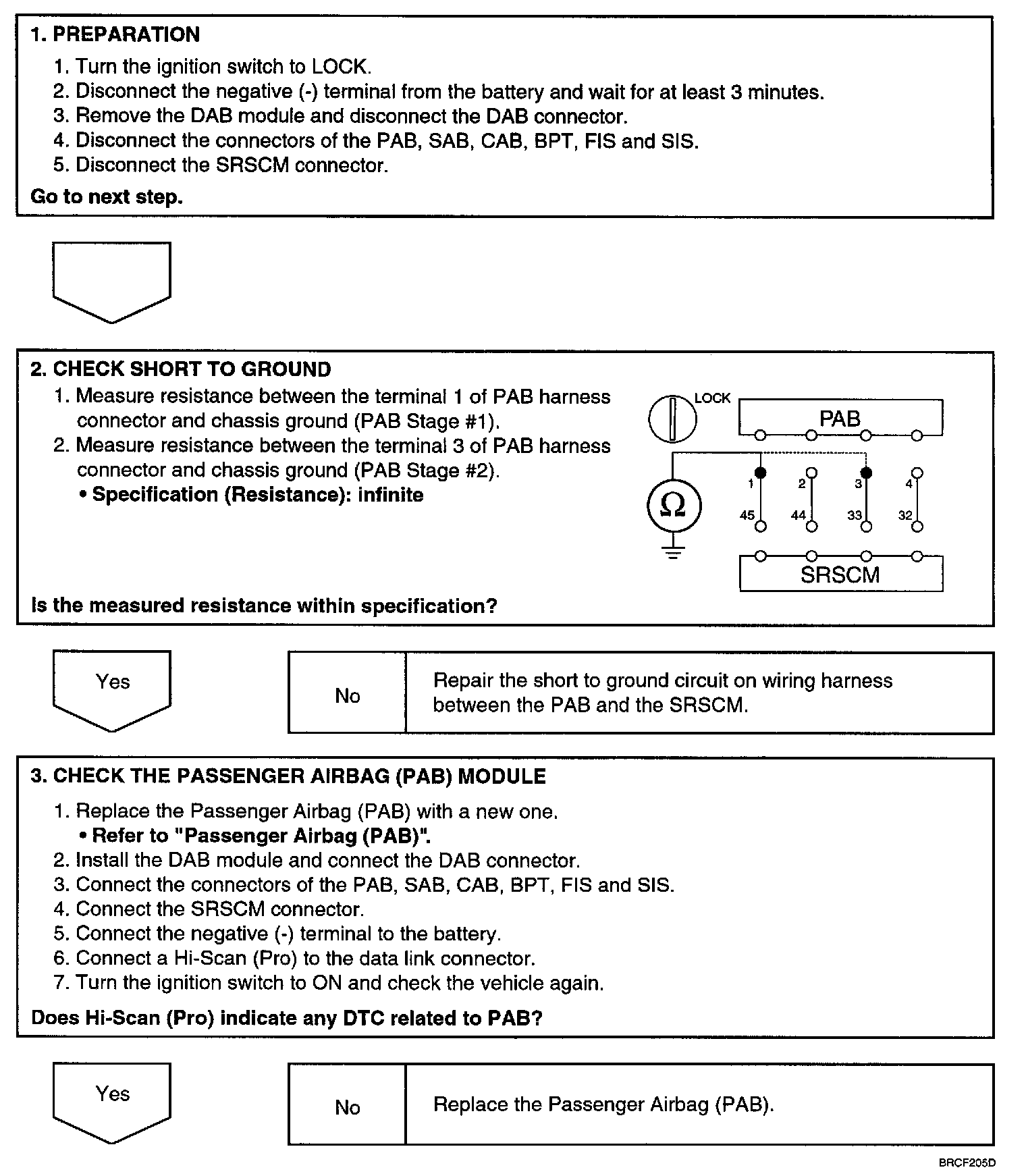

INSPECTION PROCEDURE
