B1475

DTC B1475 Curtain Airbag [Driver] Circuit Short to Ground

DESCRIPTION

The Curtain Airbag circuit consists of the SRSCM and two Curtain Airbags (CAB). The SRSCM sets above DTC(s) if it detects short to ground on the CAB circuit.

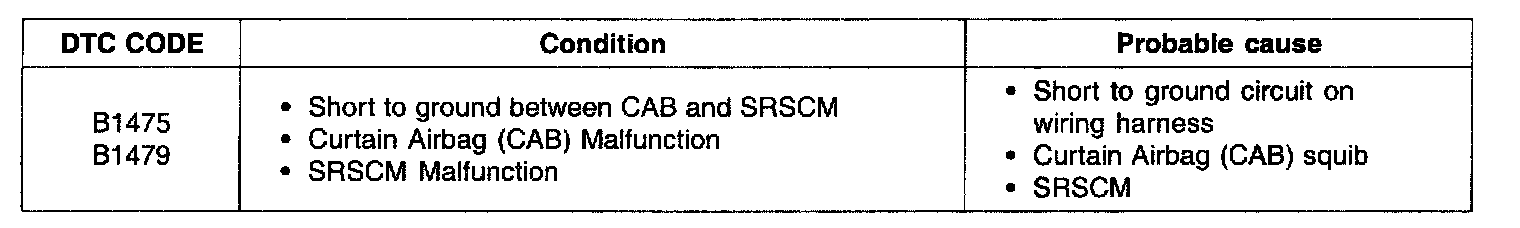

DTC Detecting Condition:

DTC DETECTING CONDITION

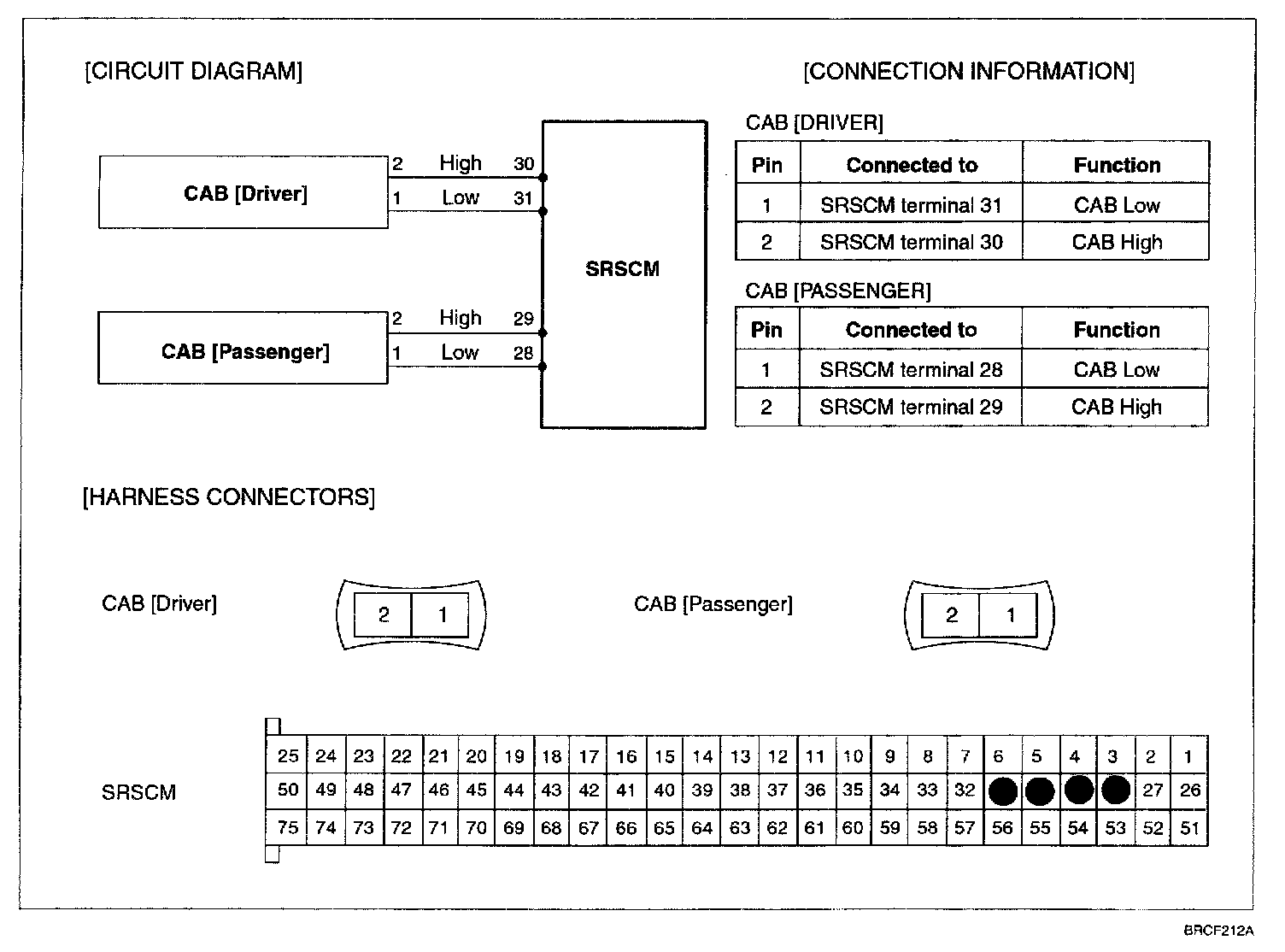

Schematic Diagram:

SCHEMATIC DIAGRAM

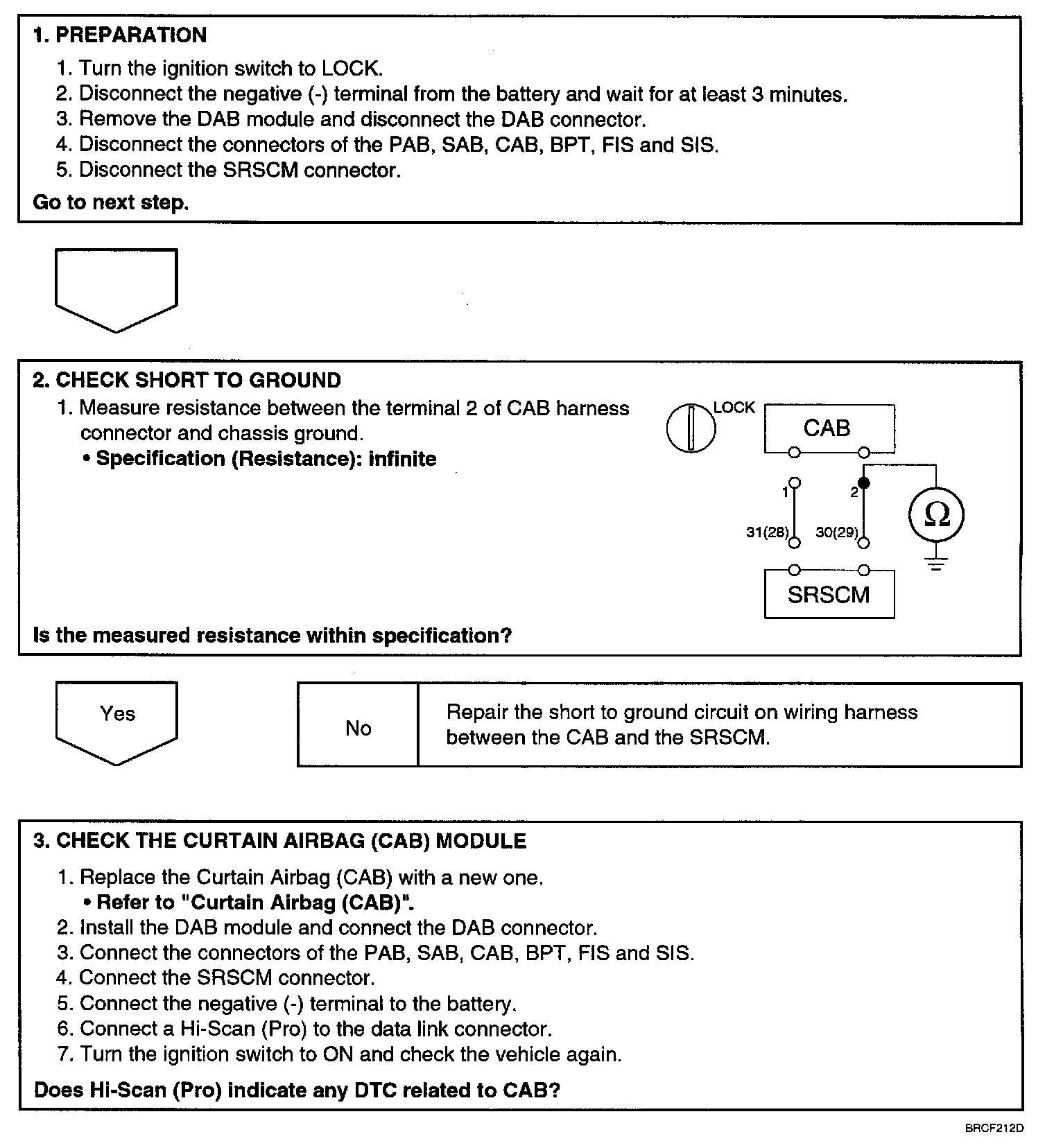

Step 1 - 3:

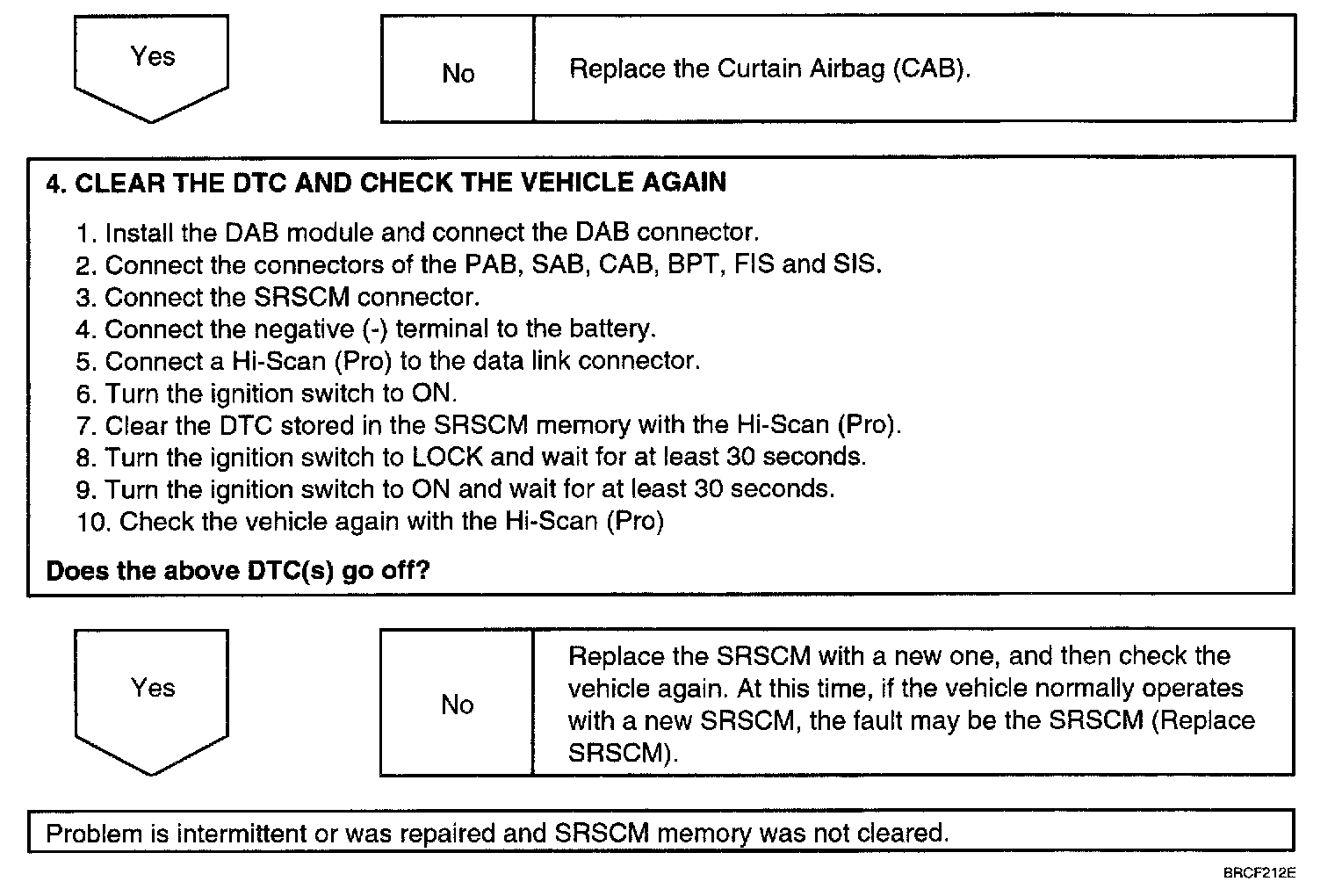

Step 4:

INSPECTION PROCEDURE
