B1446

DTC B1446 Passenger Occupant Classification (OC) Circuit Short to Battery Line or No Response

DESCRIPTION

The passenger detecting system consists of the SRSCM and the Passenger OC sensor. The SRSCM sets above DTCs if it detects short to battery line on the Passenger OC circuit.

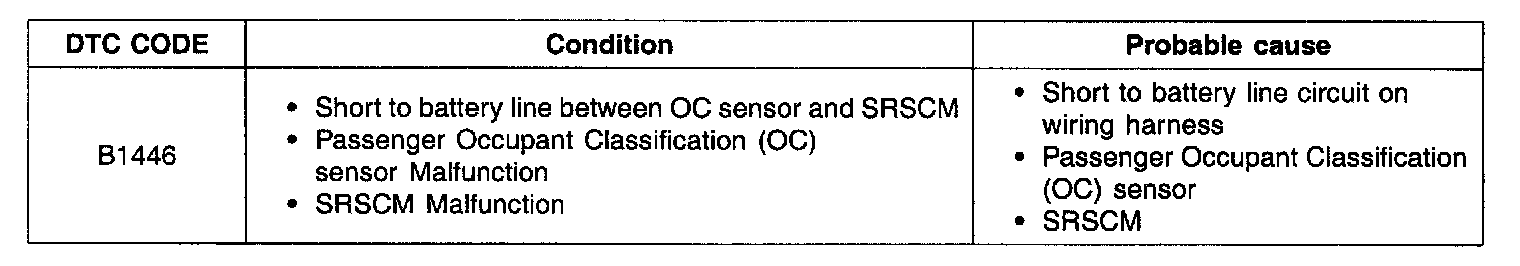

DTC Detecting Condition:

DTC DETECTING CONDITION

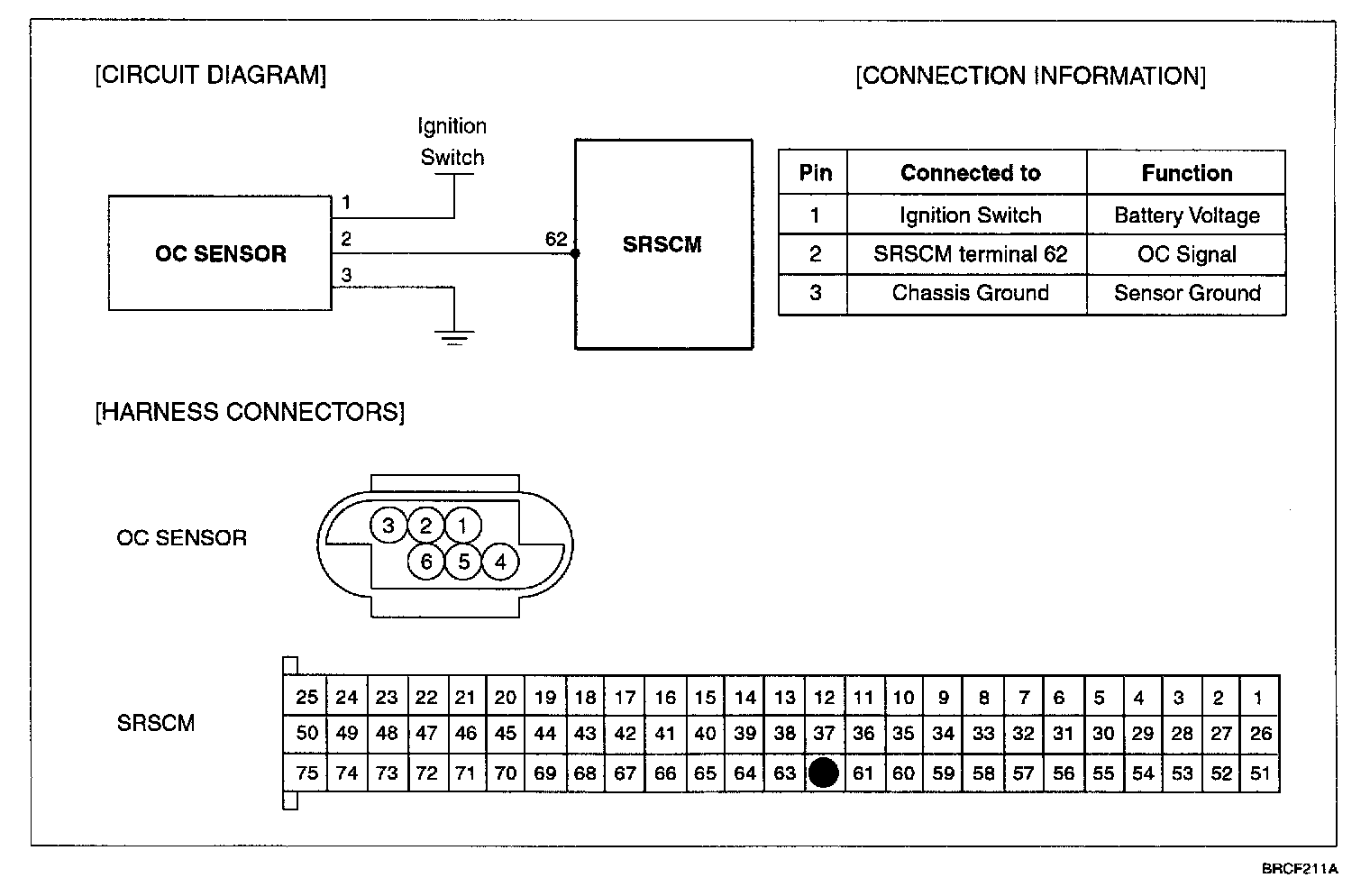

Schematic Diagram:

SCHEMATIC DIAGRAM

Step 1 - 3:

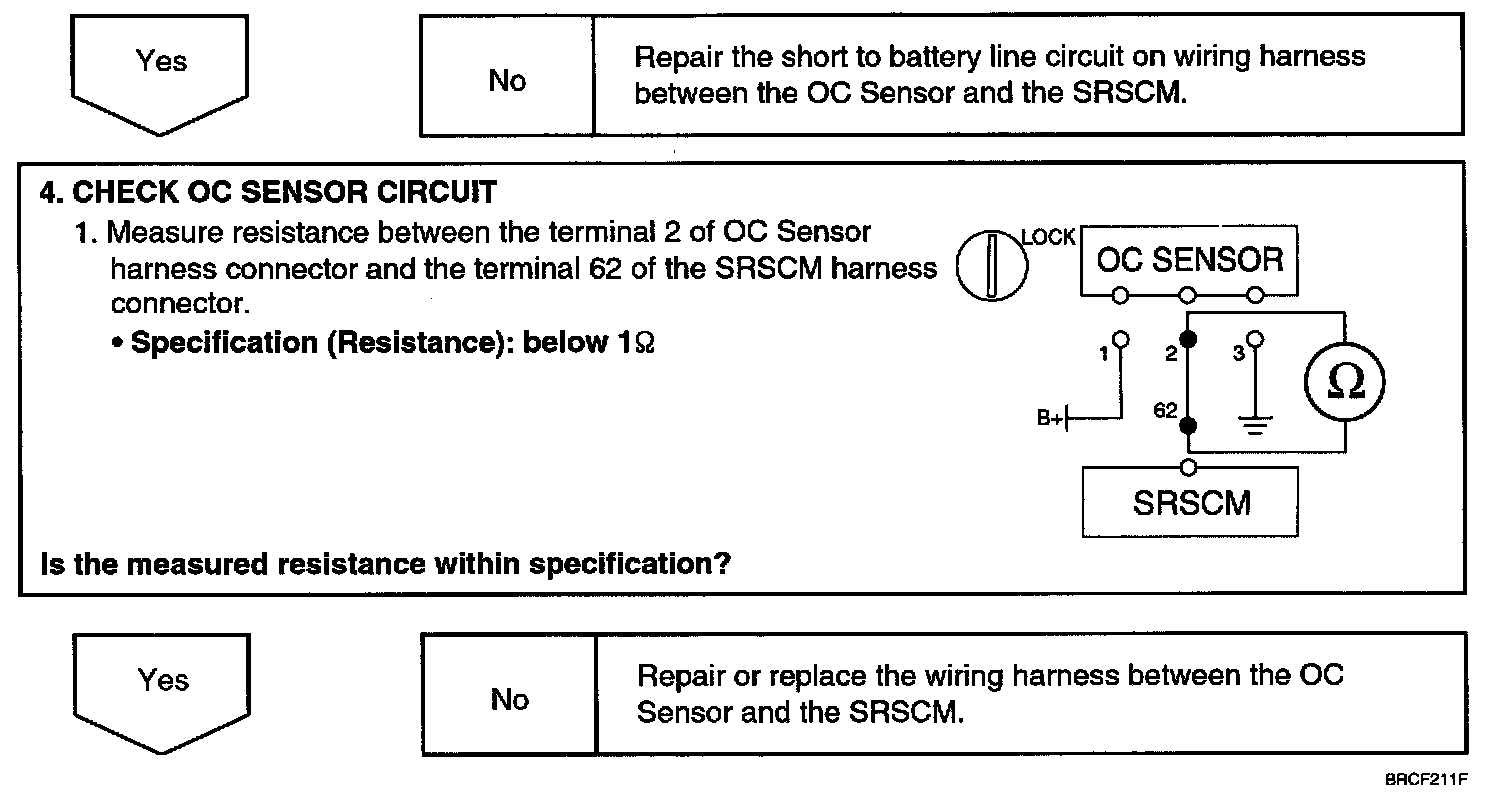

Step 4:

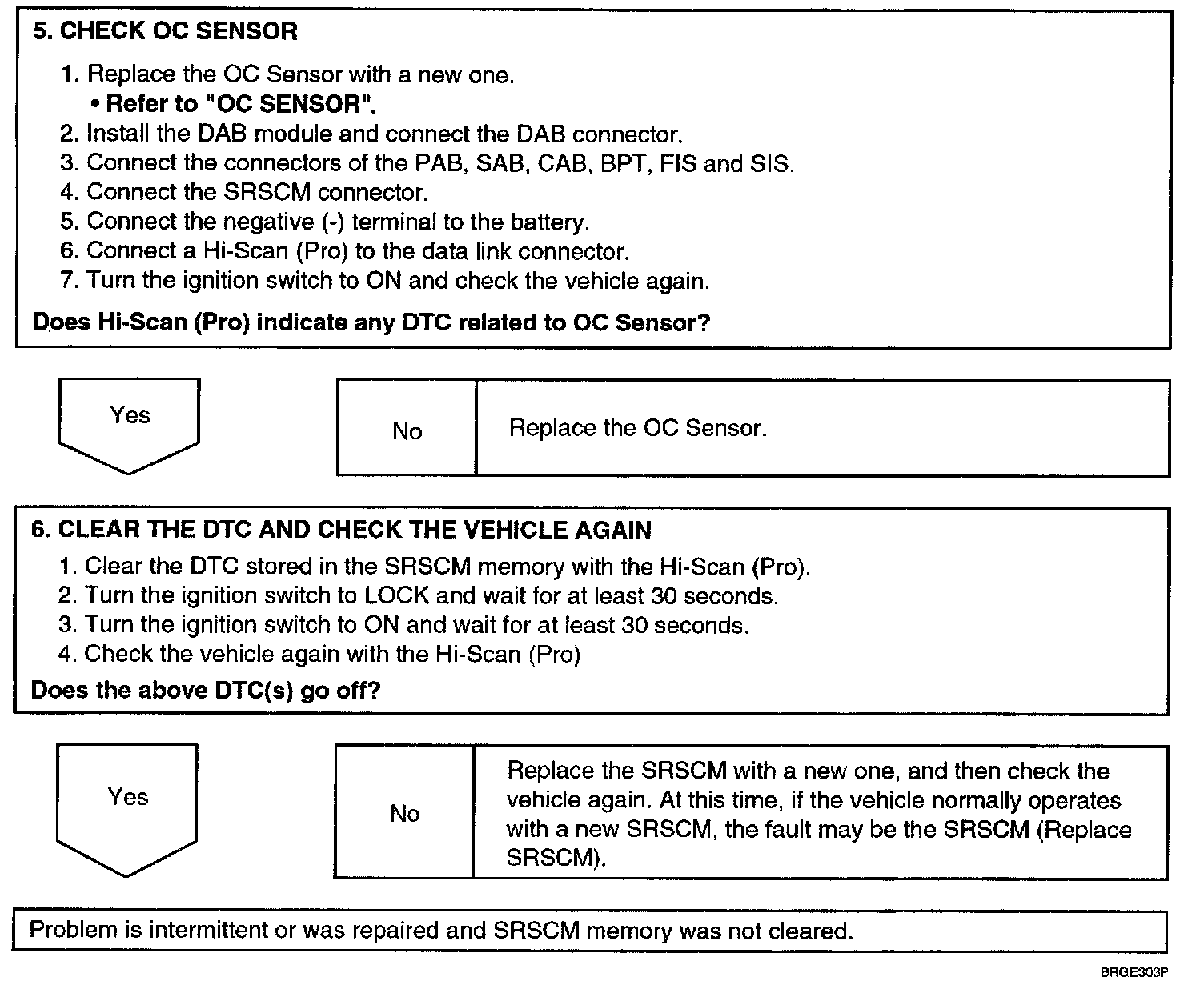

Step 5 - 6:

INSPECTION PROCEDURE
