B1404

DTC B1404 Side Impact Sensor [Passenger] Circuit Short to Ground

DESCRIPTION

The Side Impact Sensor circuit consists of the SRSCM and two Side Impact Sensors (SIS). The SRSCM sets above DTC(s) if it detects short to ground on the SIS circuit.

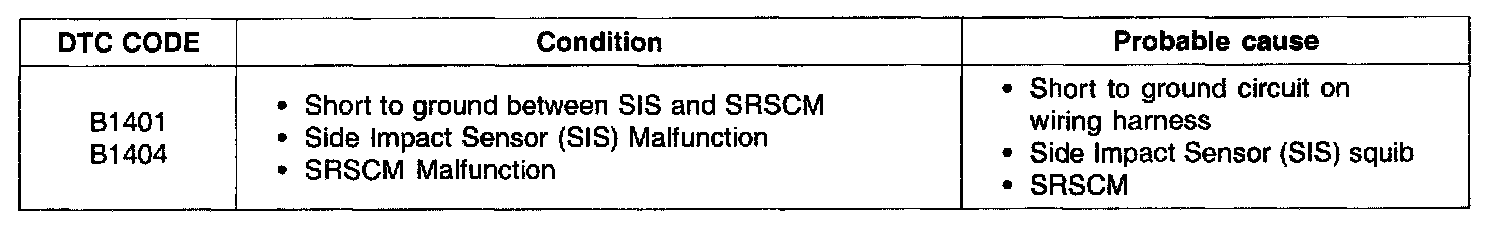

DTC Detecting Condition:

DTC DETECTING CONDITION

Schematic Diagram:

SCHEMATIC DIAGRAM

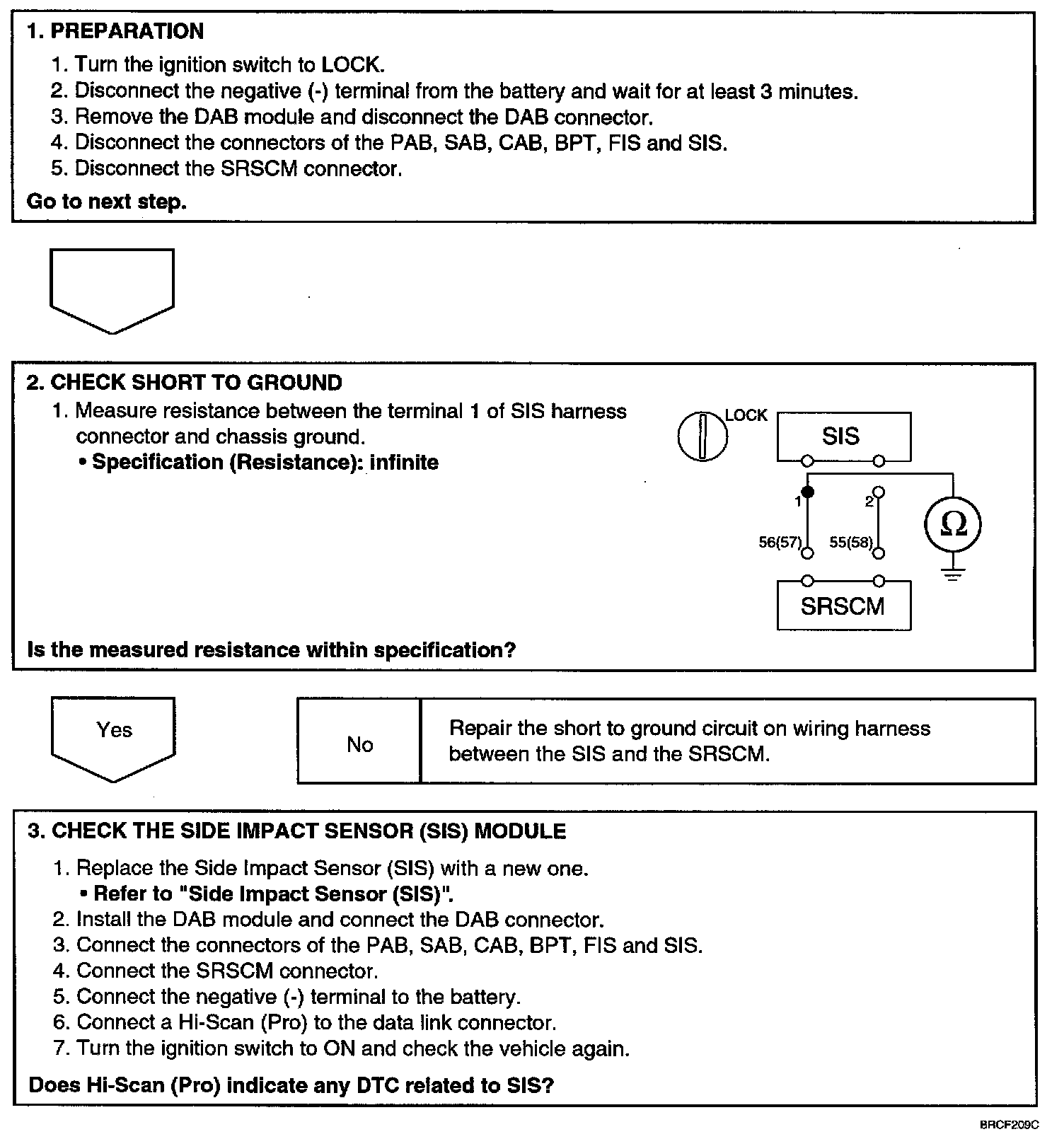

Step 1 - 3:

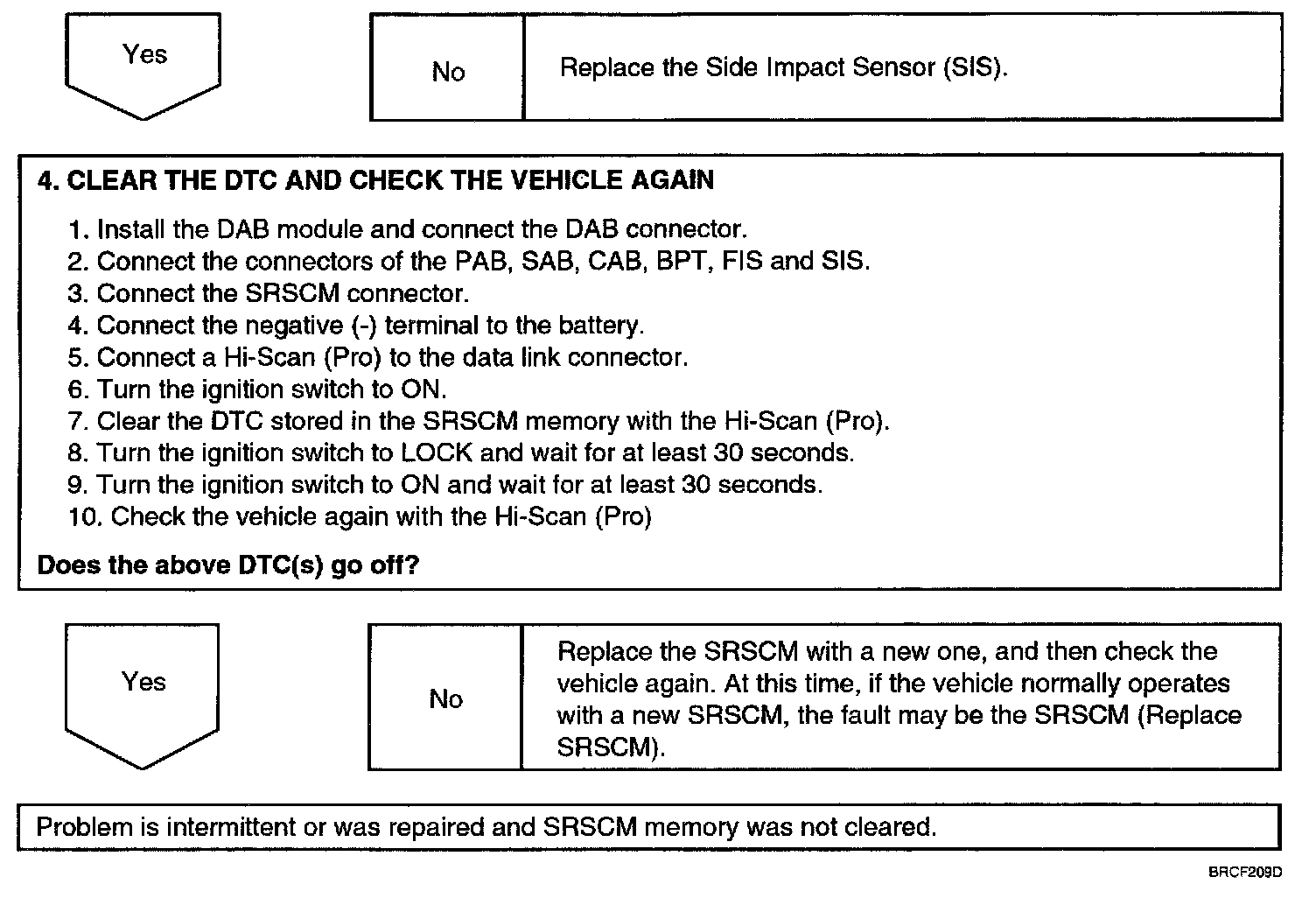

Step 4:

INSPECTION PROCEDURE
