B1402

DTC B1402 Side Impact Sensor [Driver] Circuit Short to Battery Line

DESCRIPTION

The Side Impact Sensor circuit consists of the SRSCM and two Side Impact Sensors (SIS). The SRSCM sets above DTC(s) if it detects short to battery line on the SIS circuit.

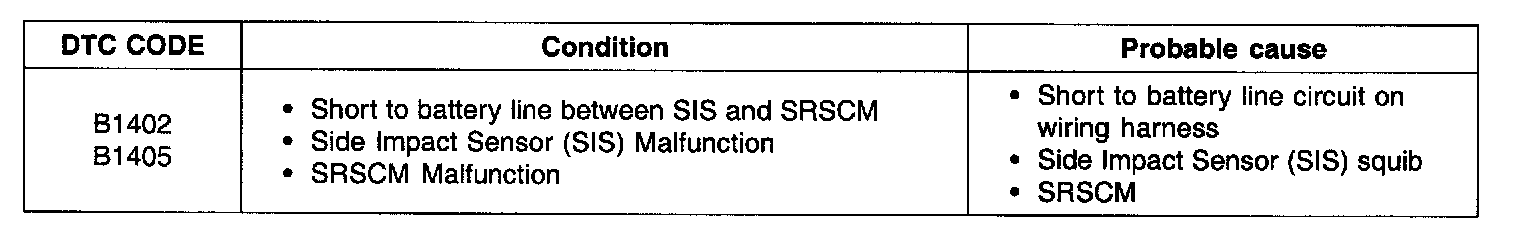

DTC Detecting Condition:

DTC DETECTING CONDITION

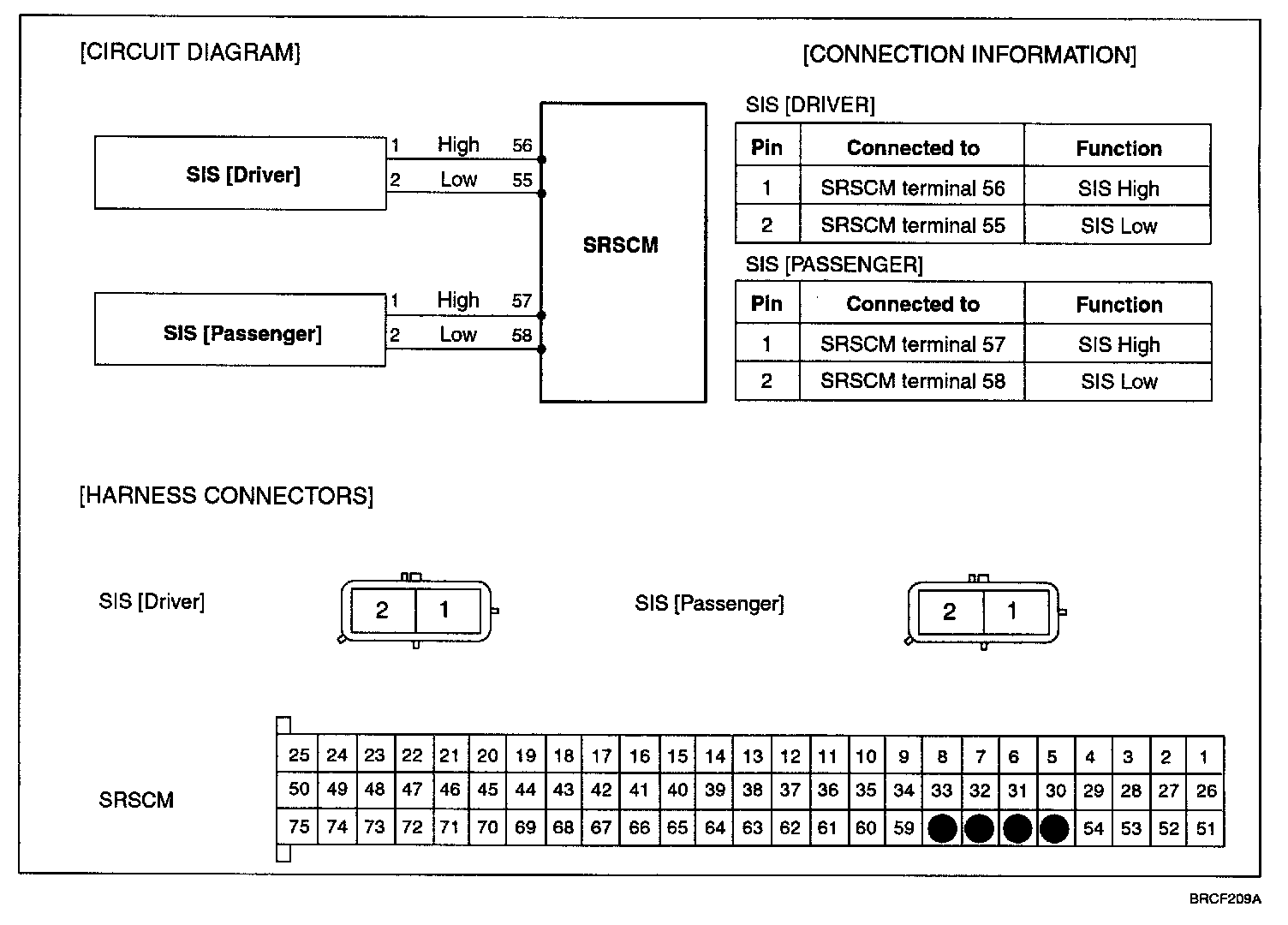

Schematic Diagram:

SCHEMATIC DIAGRAM

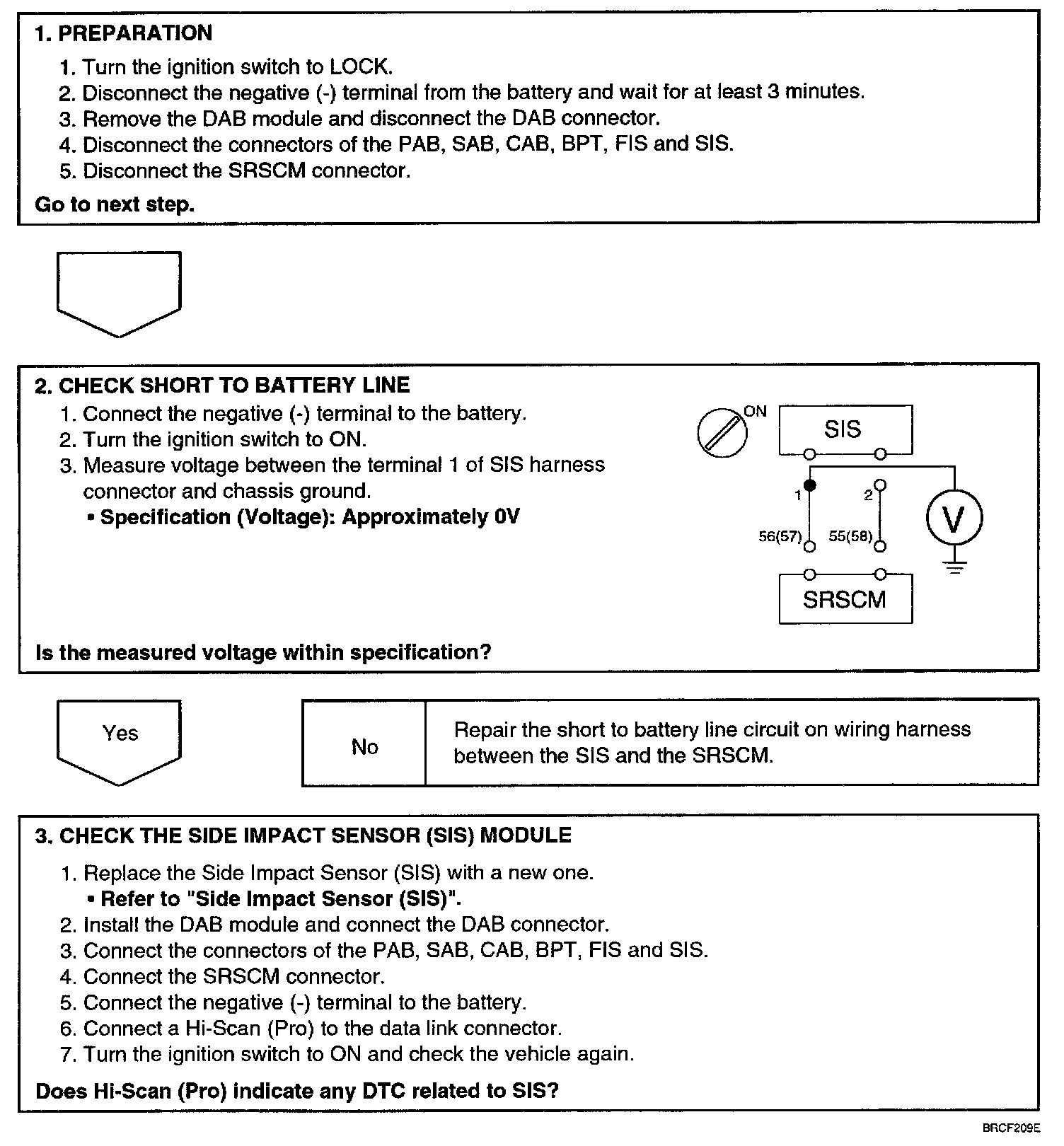

Step 1 - 3:

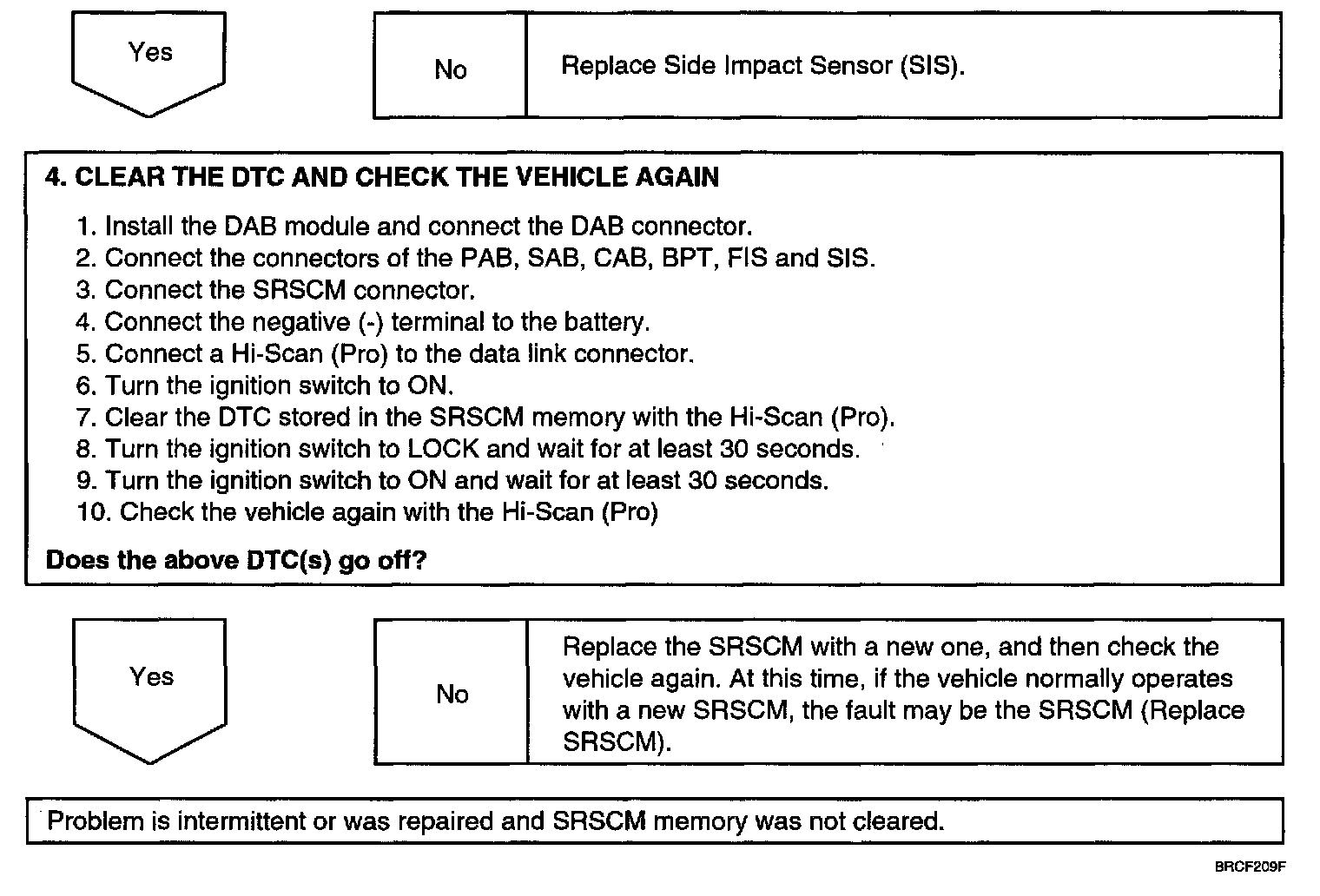

Step 4:

INSPECTION PROCEDURE
