B1389

DTC B1389 Seat Track Position Sensor [Driver] Defect

DESCRIPTION

The Seat Track Position Sensor (STPS) circuit consists of the SRSCM and two STPS. The SRSCM sets above DTC(s) if it detects the STPS fault. The "Seat Forward" status currently represents a seat position in which the deployment of the second stage airbag is prohibited.

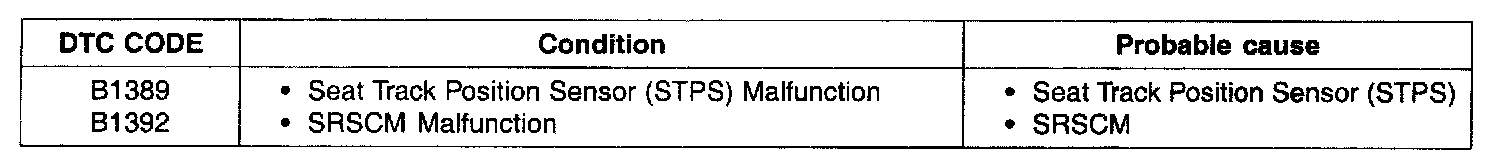

DTC Detecting Condition:

DTC DETECTING CONDITION

Specification:

SPECIFICATION

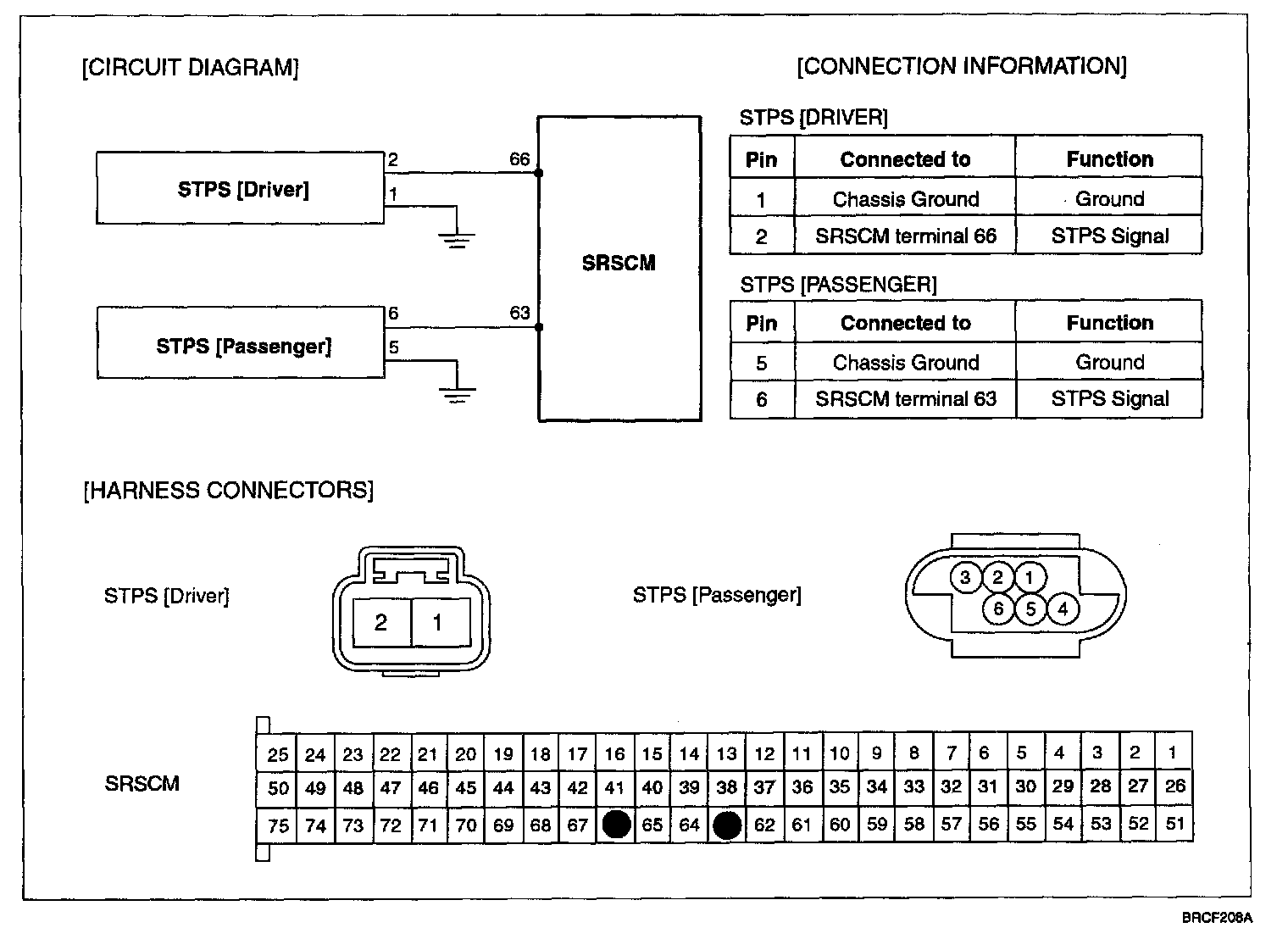

Schematic Diagram:

SCHEMATIC DIAGRAM

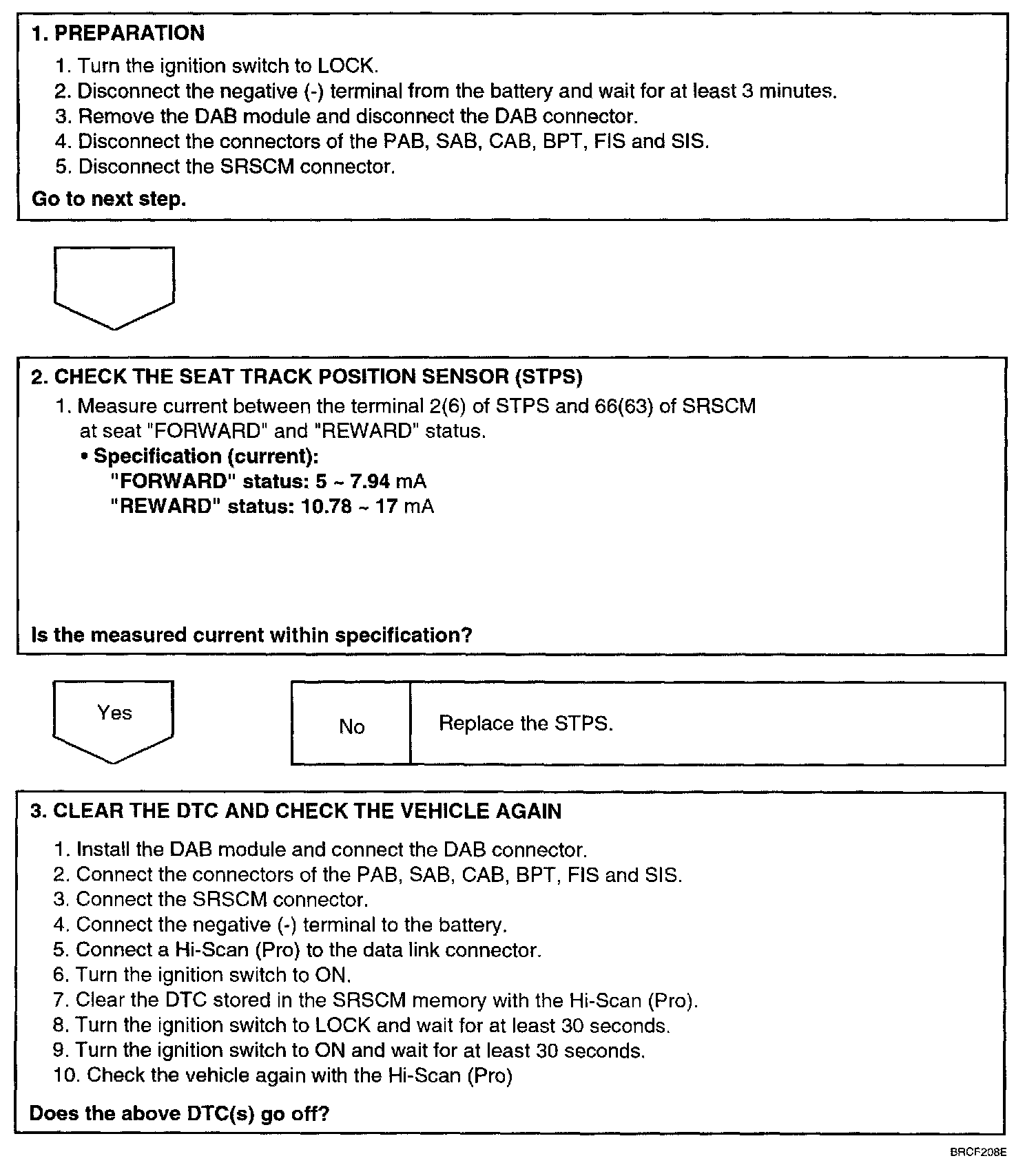

Step 1 - 3:

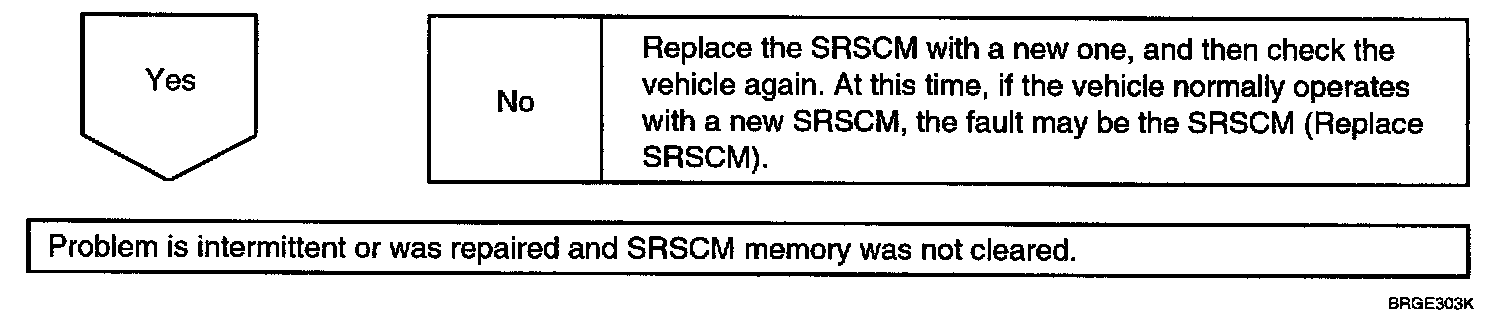

Step 3 Continued:

INSPECTION PROCEDURE
