B1381

DTC B1381 Side Airbag [Front-Driver] Circuit Short to Battery Line

DESCRIPTION

The Front Side Airbag circuit consists of the SRSCM and two Side Airbags (SAB). The SRSCM sets above DTC(s) if it detects short to battery line on the SAB circuit.

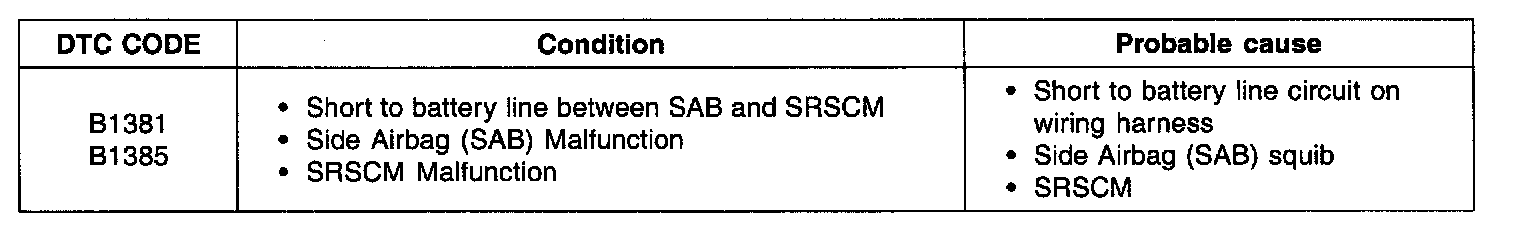

DTC Detecting Condition:

DTC DETECTING CONDITION

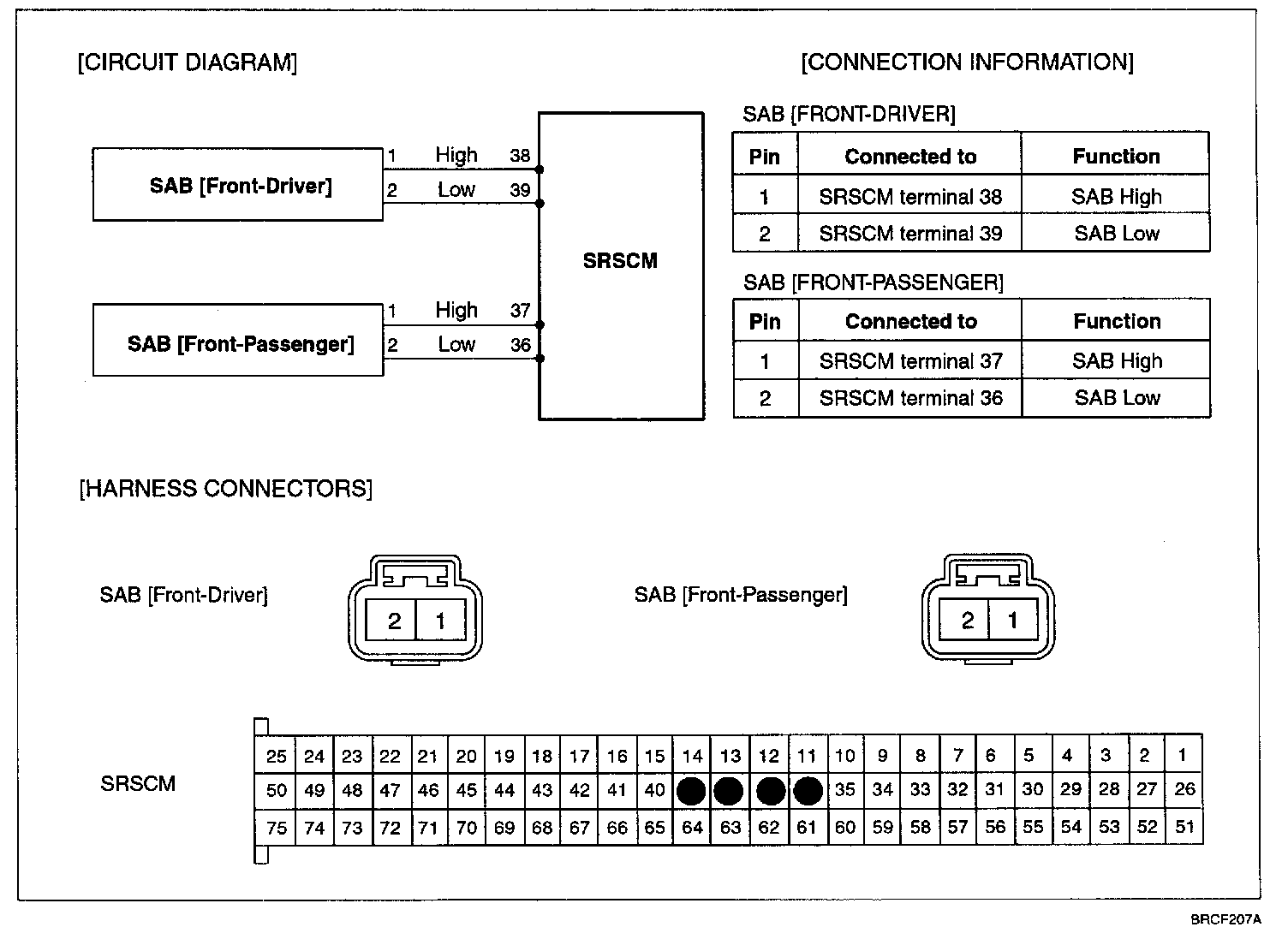

Schematic Diagram:

SCHEMATIC DIAGRAM

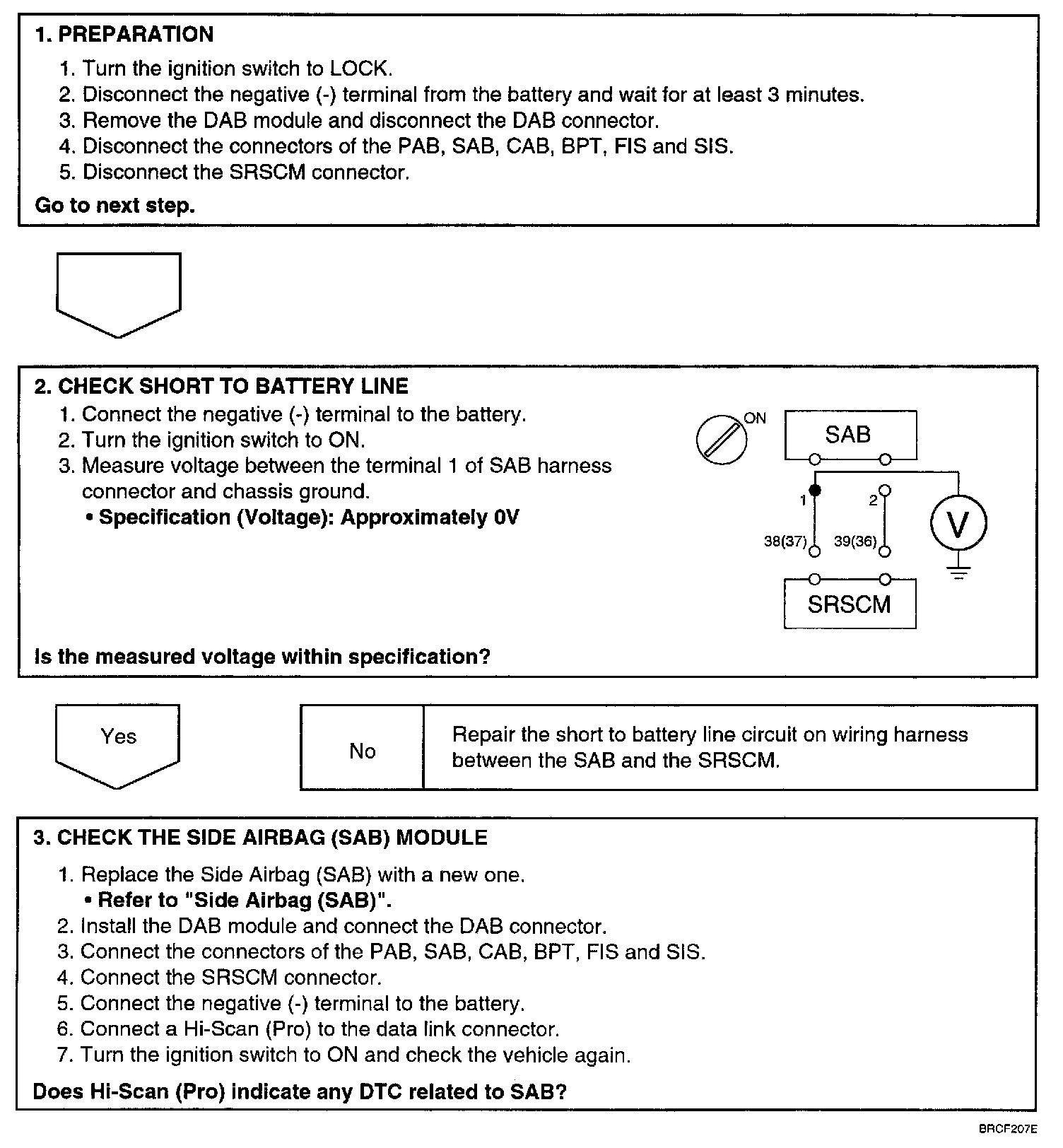

Step 1 - 3:

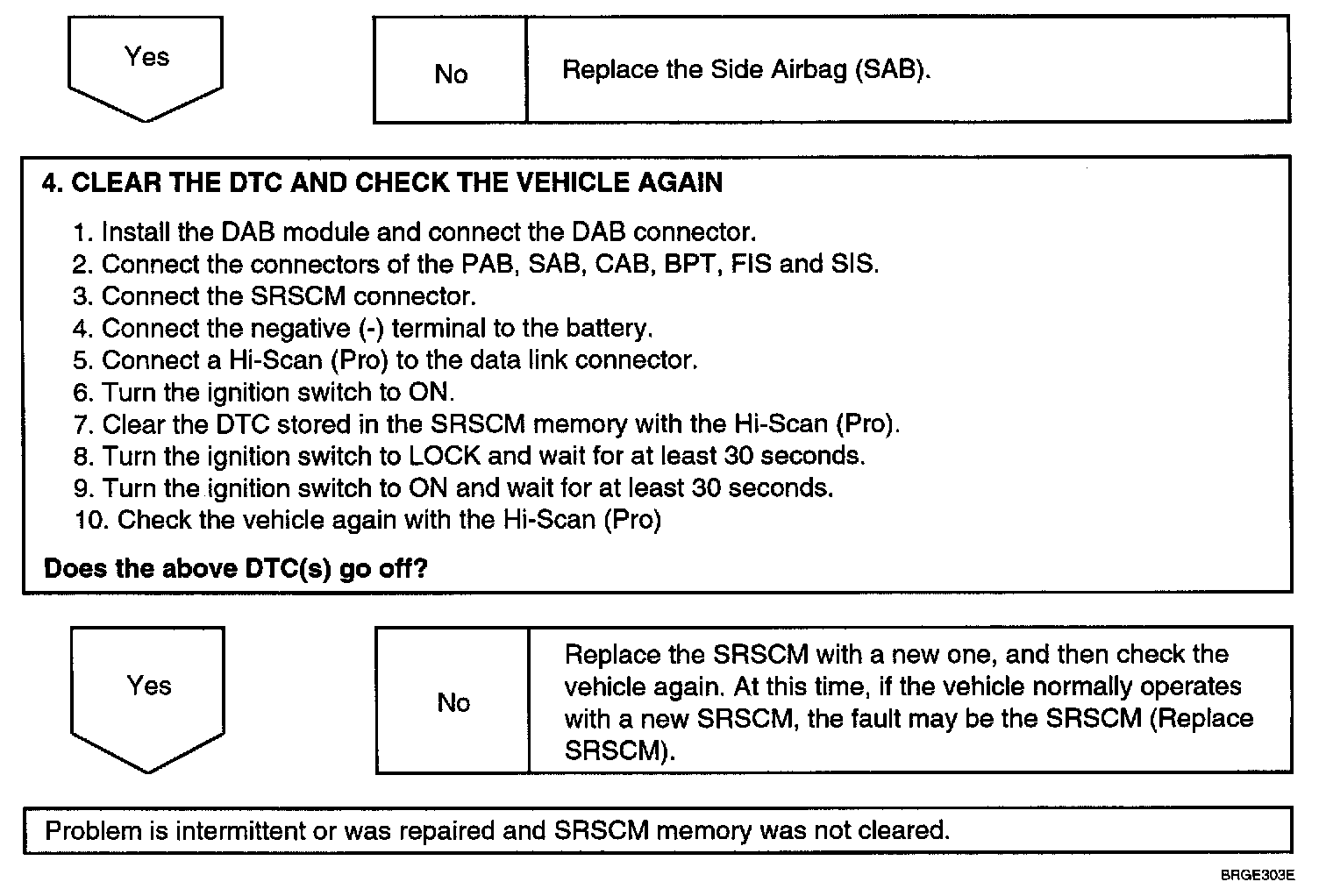

Step 4:

INSPECTION PROCEDURE
