B1370

DTC B1370 Seat Belt Pretensioner [Front-Passenger] Circuit Short to Battery Line

DESCRIPTION

The Side Airbag circuit consists of the SRSCM and two Seat Belt Pretensioners (BPT). The SRSCM sets above DTC(s) if it detects short to battery line on the BPT circuit.

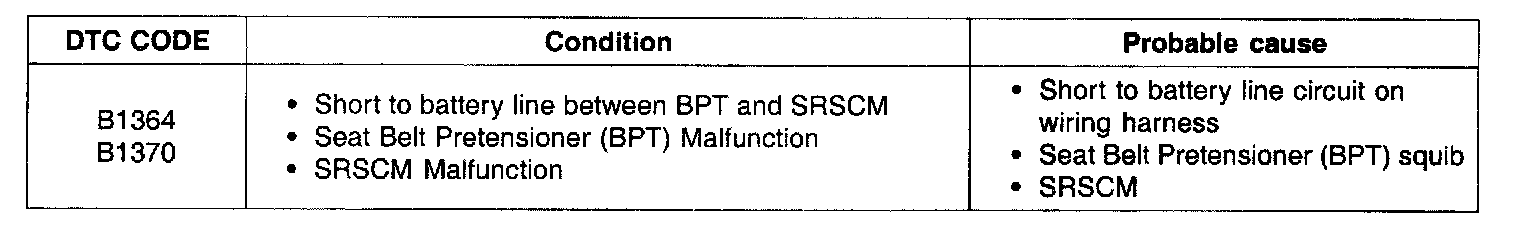

DTC Detecting Condition:

DTC DETECTING CONDITION

Schematic Diagram:

SCHEMATIC DIAGRAM

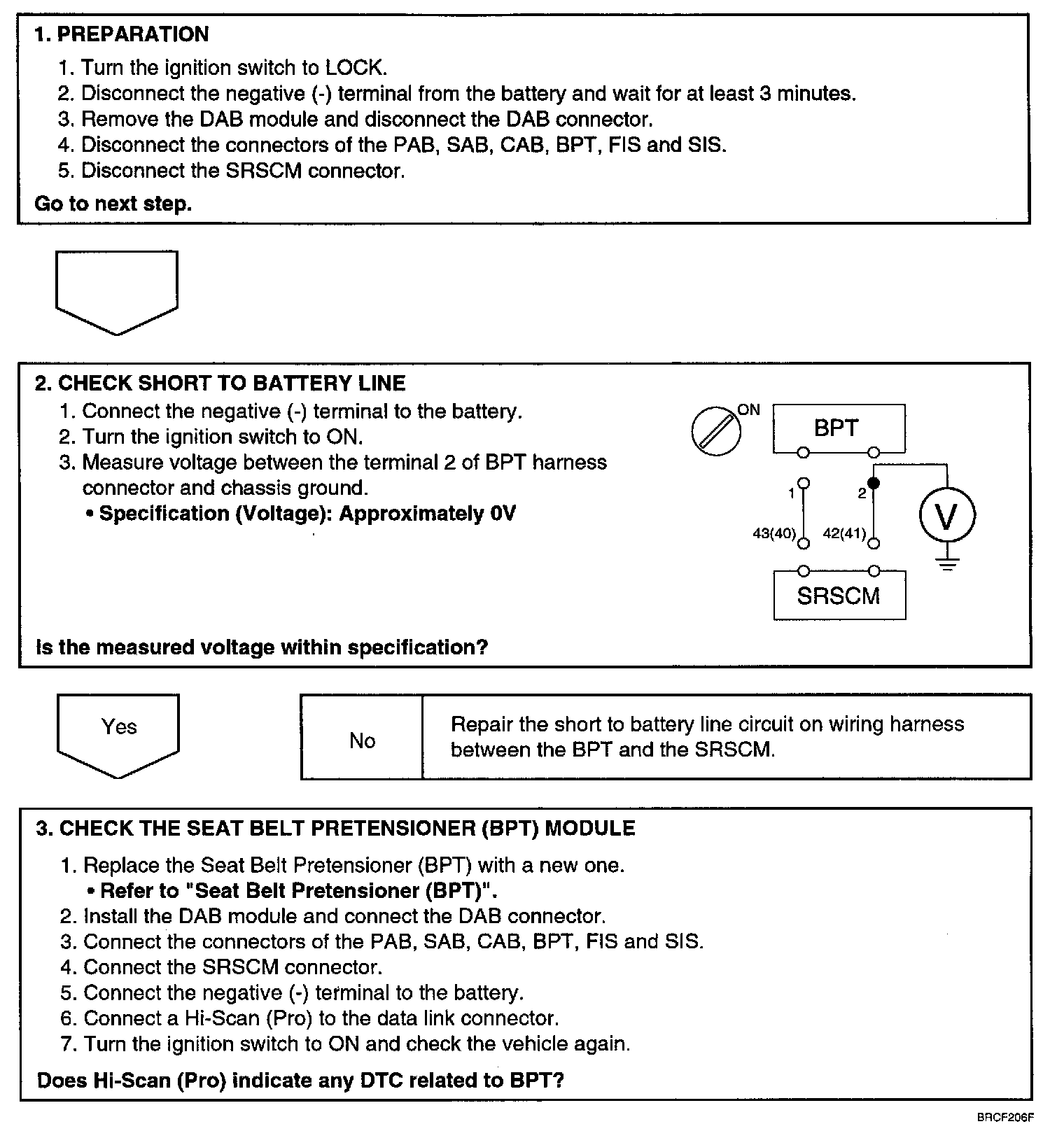

Step 1 - 3:

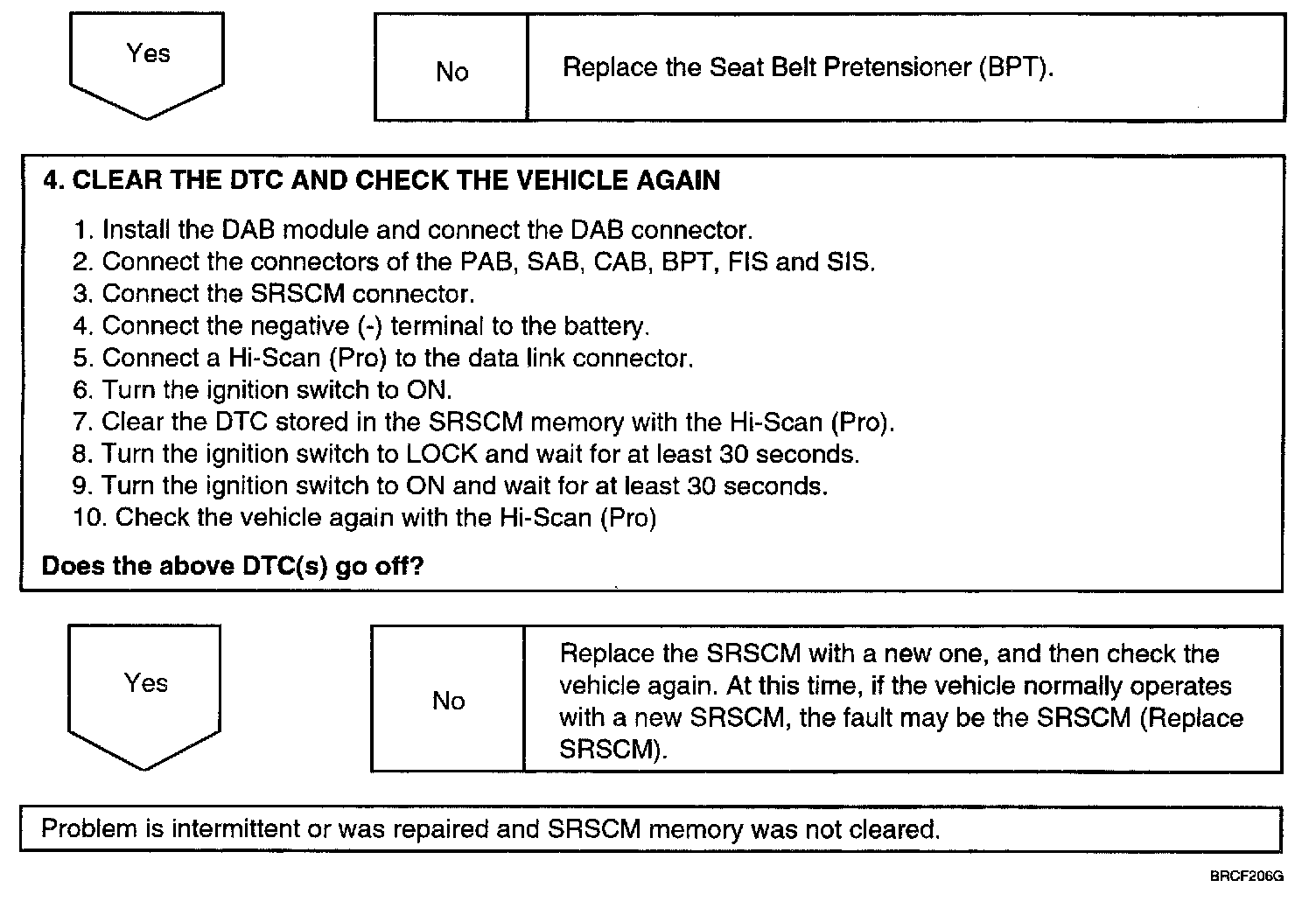

Step 4:

INSPECTION PROCEDURE
