DTC B1353 (1st Stage) Passenger Airbag Resistance too Low

DESCRIPTION

The Passenger Airbag circuit consists of the SRSCM and the Passenger Airbag (PAB) which has two squib circuits. The SRSCM sets above DTC(s) if it detects that the resistance of PAB squib is too high or low.

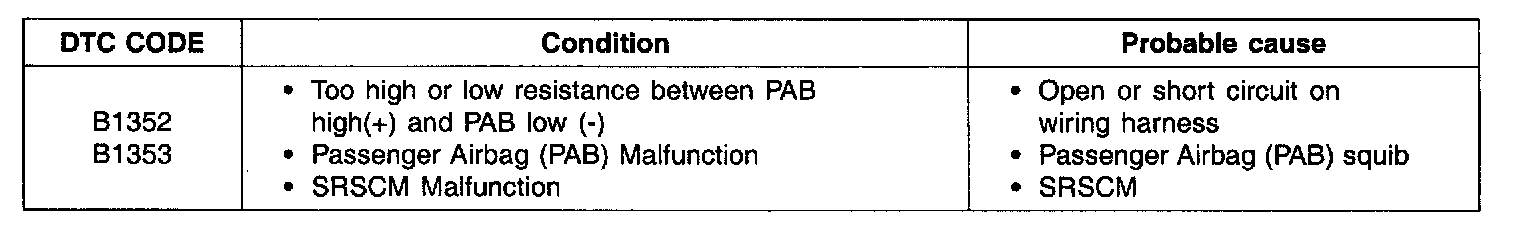

DTC Detecting Condition:

DTC DETECTING CONDITION

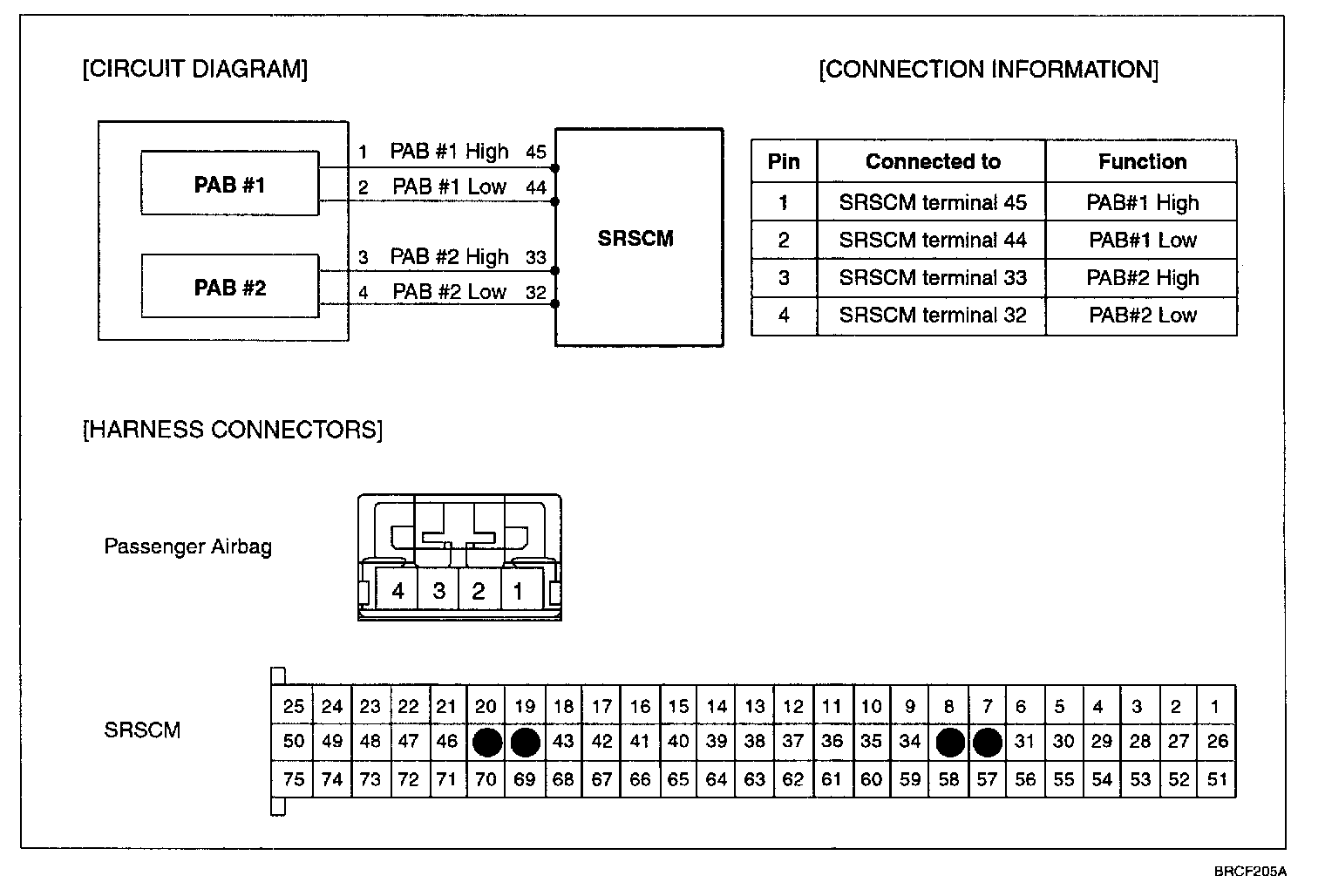

Schematic Diagram:

SCHEMATIC DIAGRAM

Step 1 - 3:

Step 4 - 5:

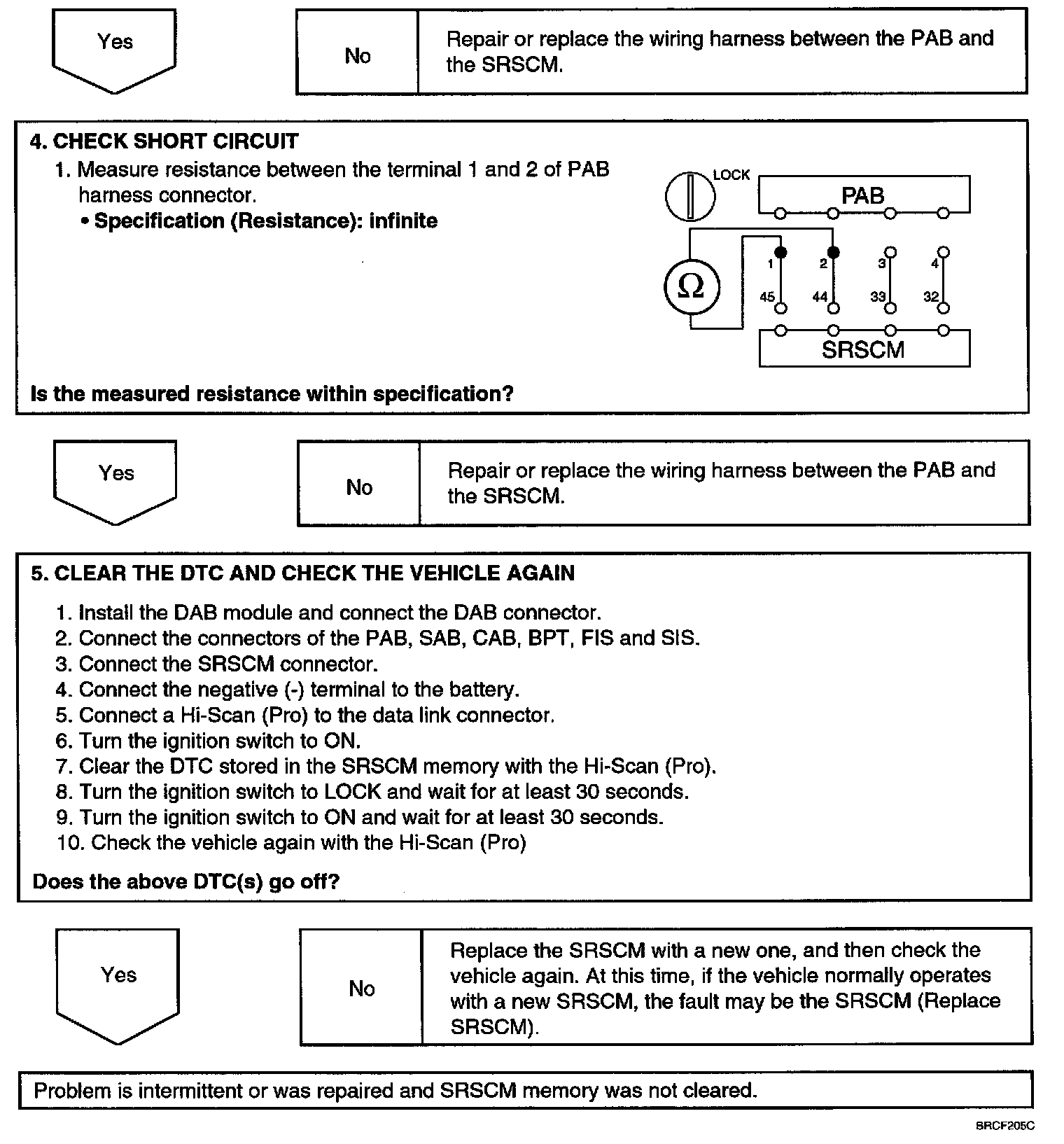

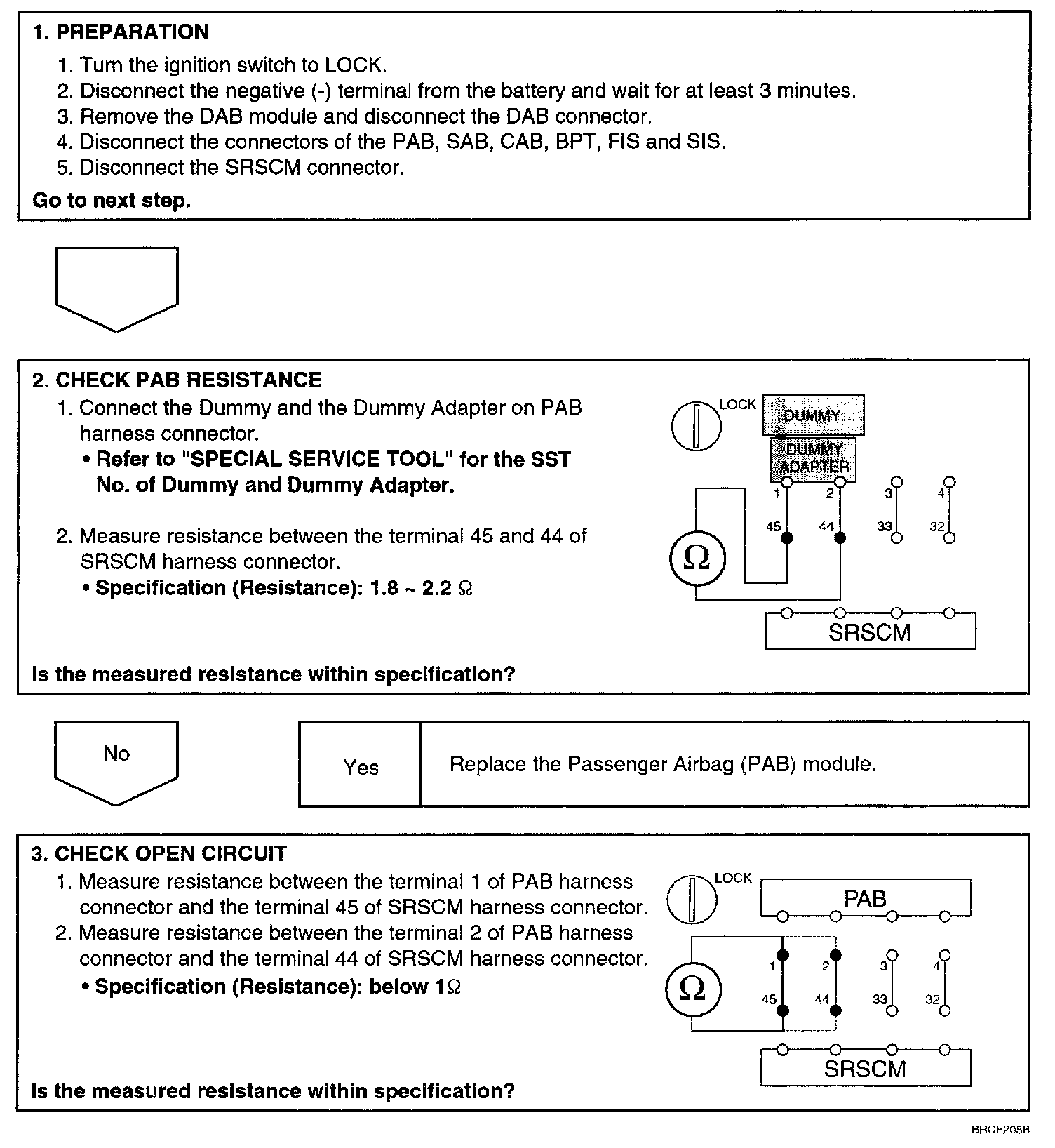

INSPECTION PROCEDURE

WARNING: NEVER attempt to measure the circuit resistance of the airbag module (squib) even if you are using the specified tester, otherwise the module may deploy accidentally.
