B1333

DTC B1333 Front Impact Sensor [Passenger] Defect

DESCRIPTION

The detecting system for frontal crash consists of the SRSCM and two Front Impact Sensors (FIS). The SRSCM sets above DTC(s) if it detects that any FIS is defective or there is communication error between any FIS and the SRSCM.

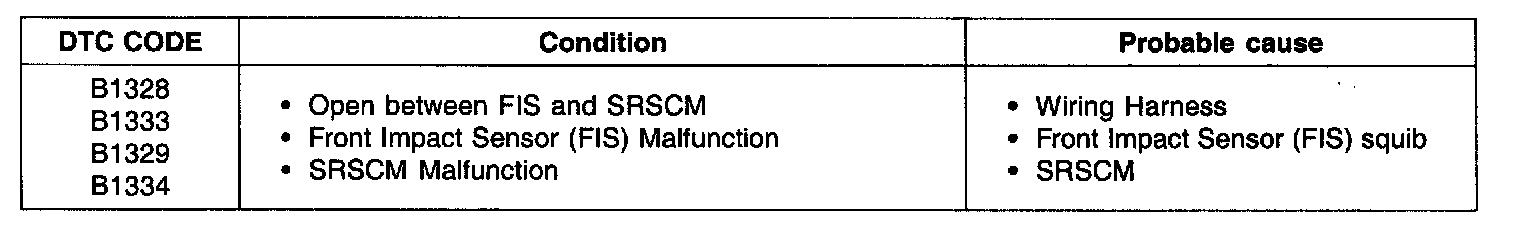

DTC Detecting Condition:

DTC DETECTING CONDITION

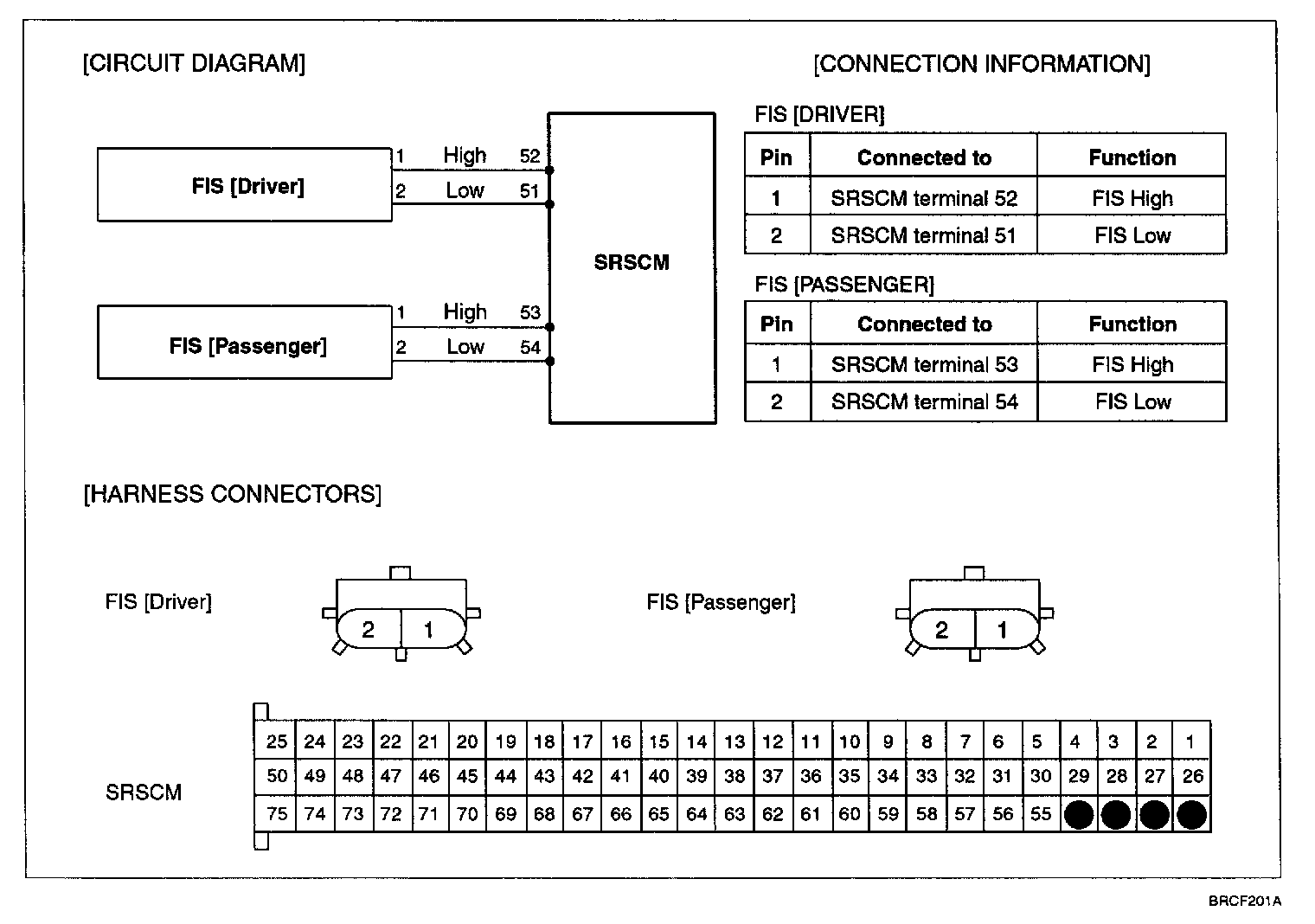

Schematic Diagram:

SCHEMATIC DIAGRAM

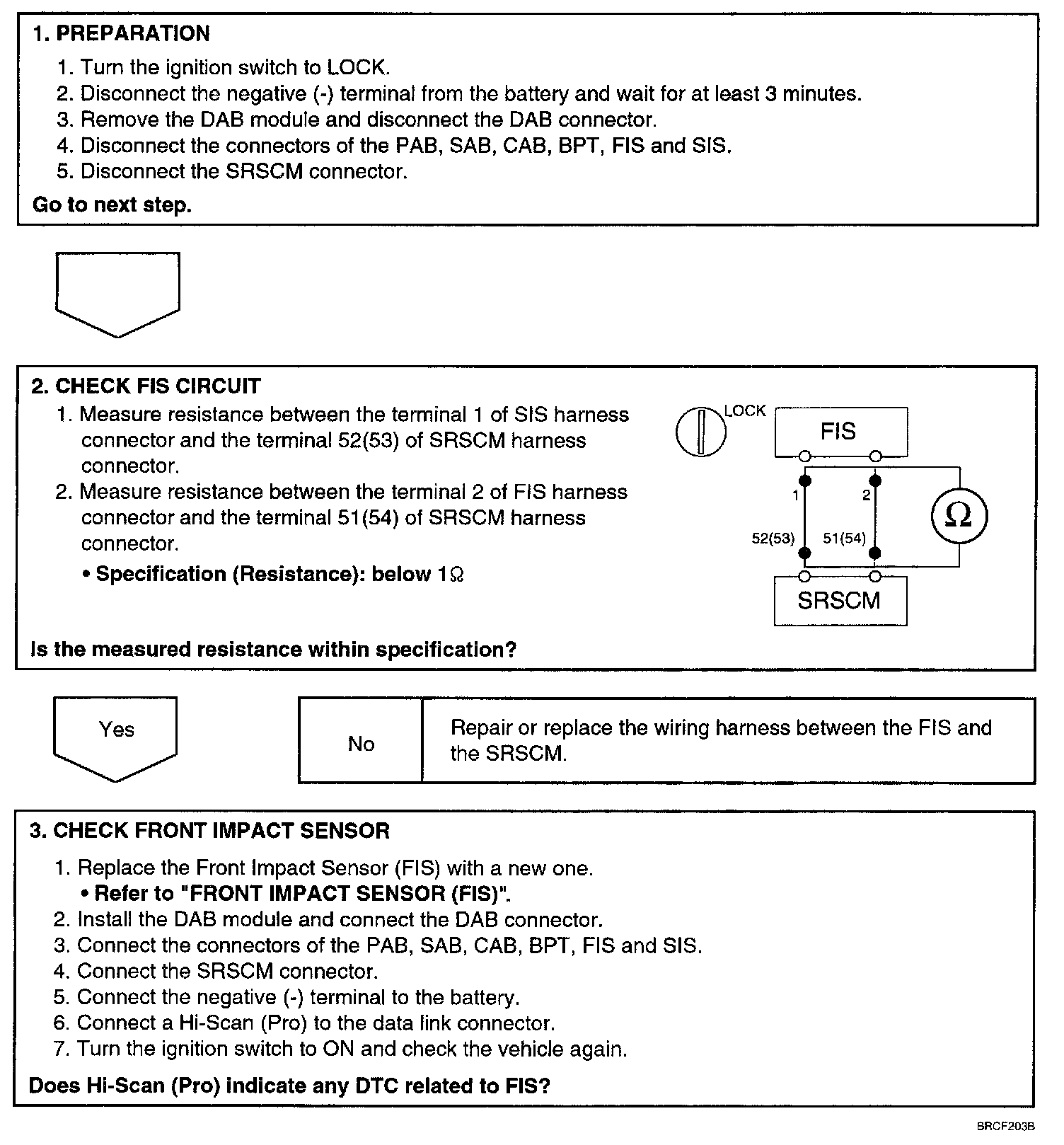

Step 1 - 3:

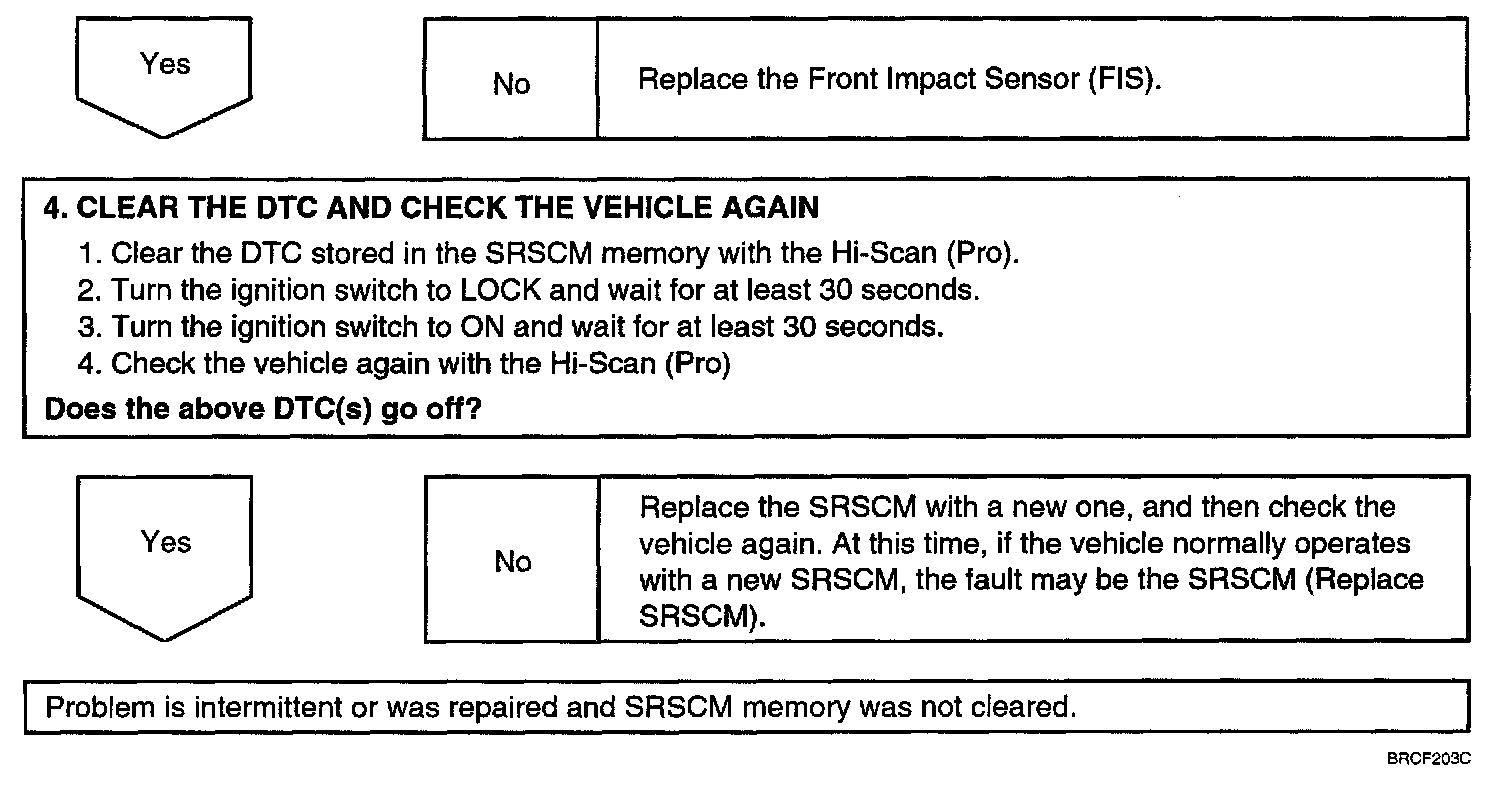

Step 4:

INSPECTION PROCEDURE
