B1327

DTC B1327 Front Impact Sensor [Driver] Circuit Short to Battery Line

DESCRIPTION

The Front Impact Sensor circuit consists of the SRSCM and two Front Impact Sensors (FIS). The SRSCM sets above DTC(s) if it detects short to battery line on the FIS circuit.

DTC Detecting Condition:

DTC DETECTING CONDITION

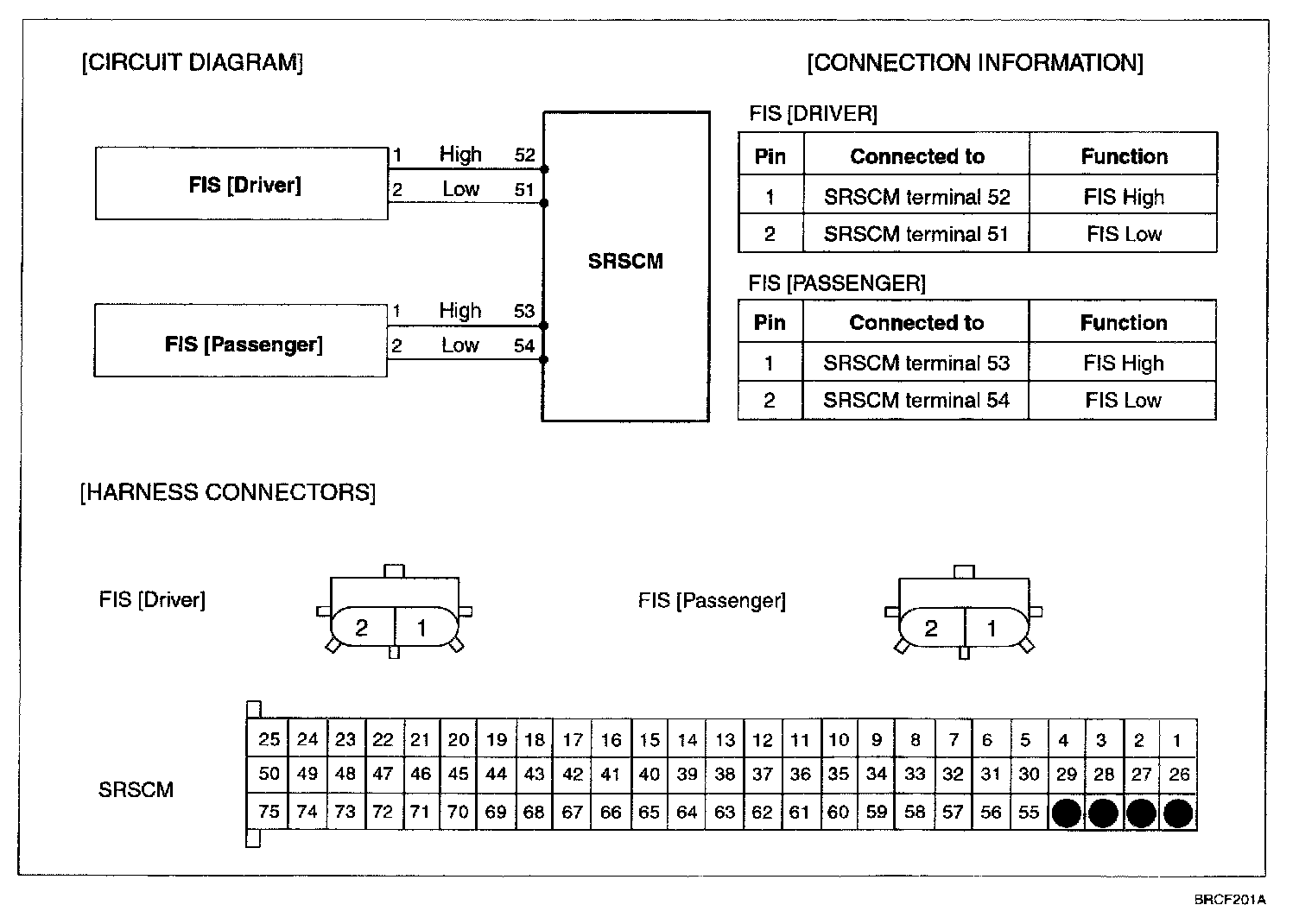

Schematic Diagram:

SCHEMATIC DIAGRAM

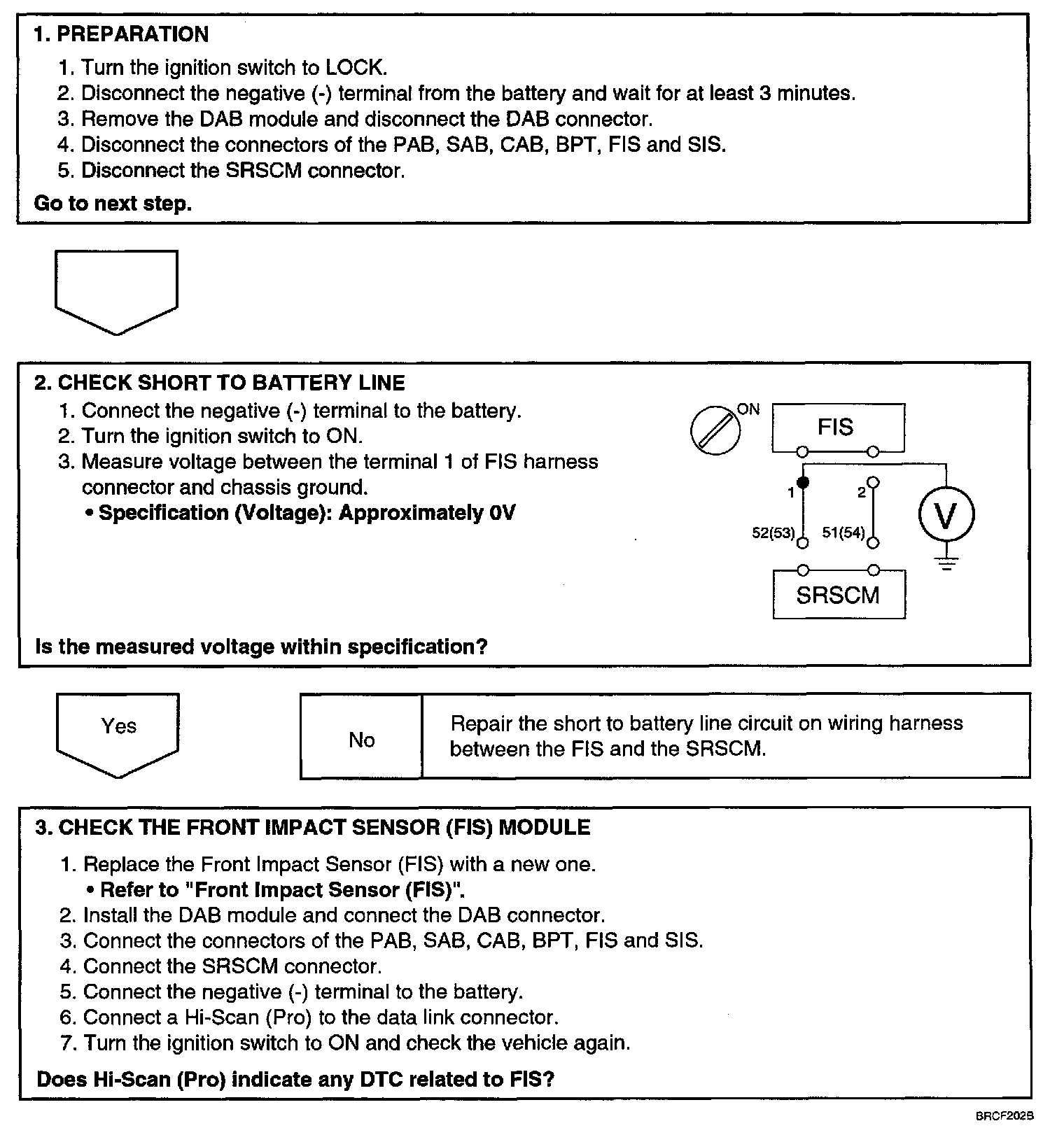

Step 1 - 3:

Step 4:

INSPECTION PROCEDURE
