B1326

DTC B1326 Front Impact Sensor [Driver] Circuit Short to Ground

DESCRIPTION

The Front Impact Sensor circuit consists of the SRSCM and two Front Impact Sensors (FIS). The SRSCM sets above DTC(s) if it detects short to ground on the FIS circuit.

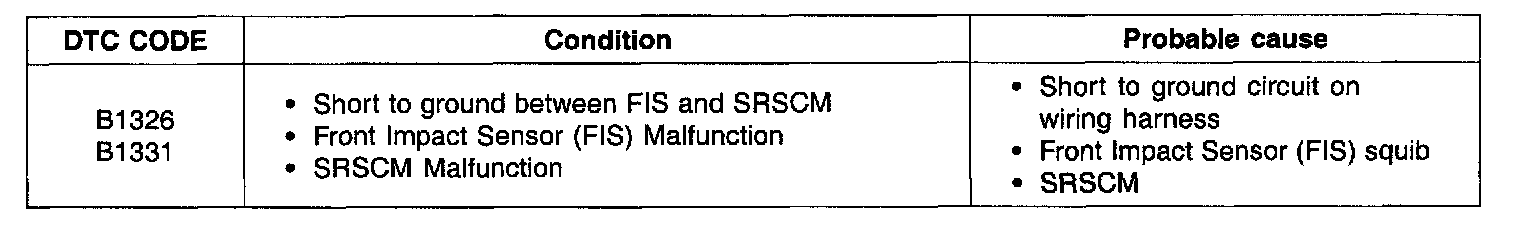

DTC Detecting Condition:

DTC DETECTING CONDITION

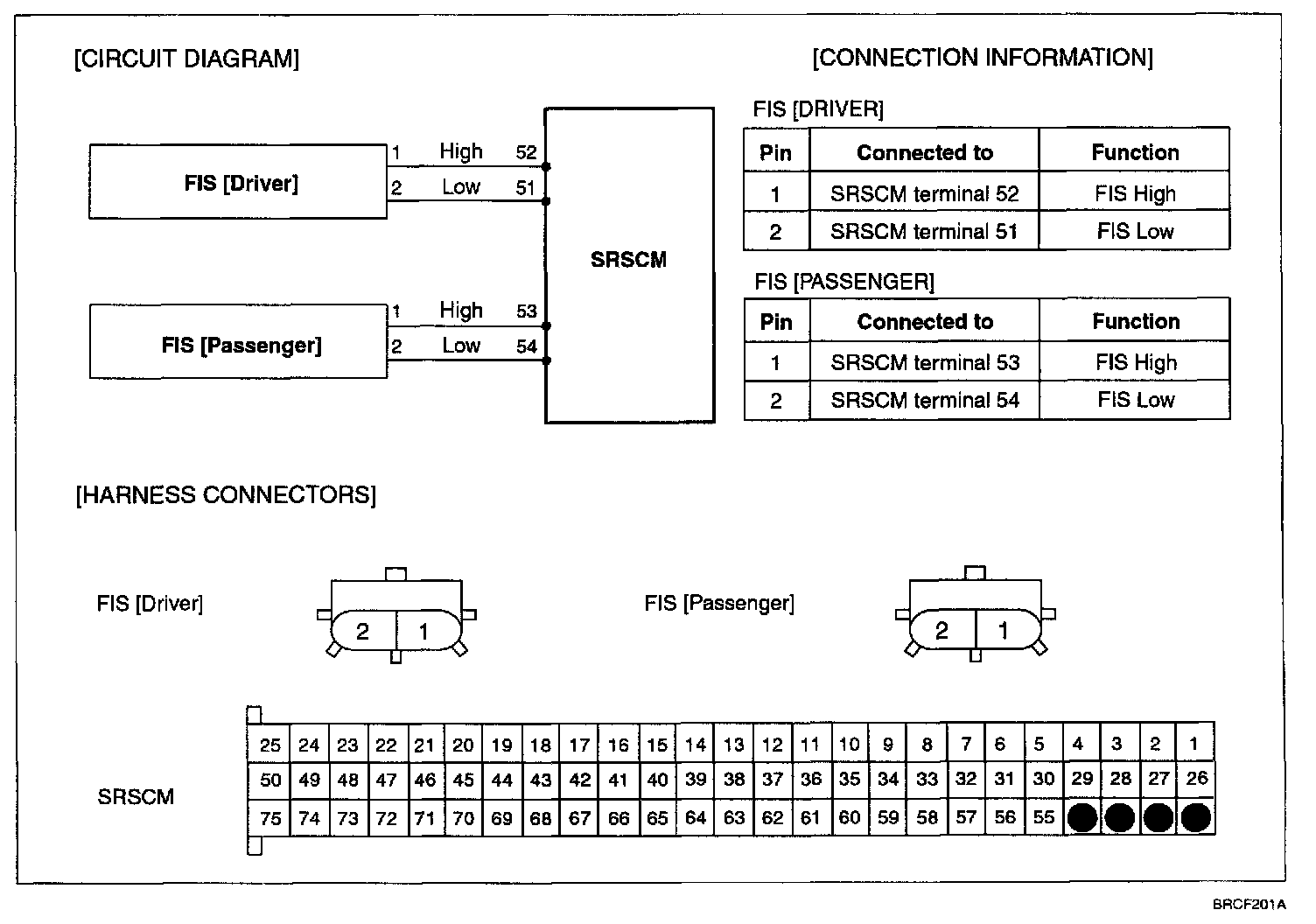

Schematic Diagram:

SCHEMATIC DIAGRAM

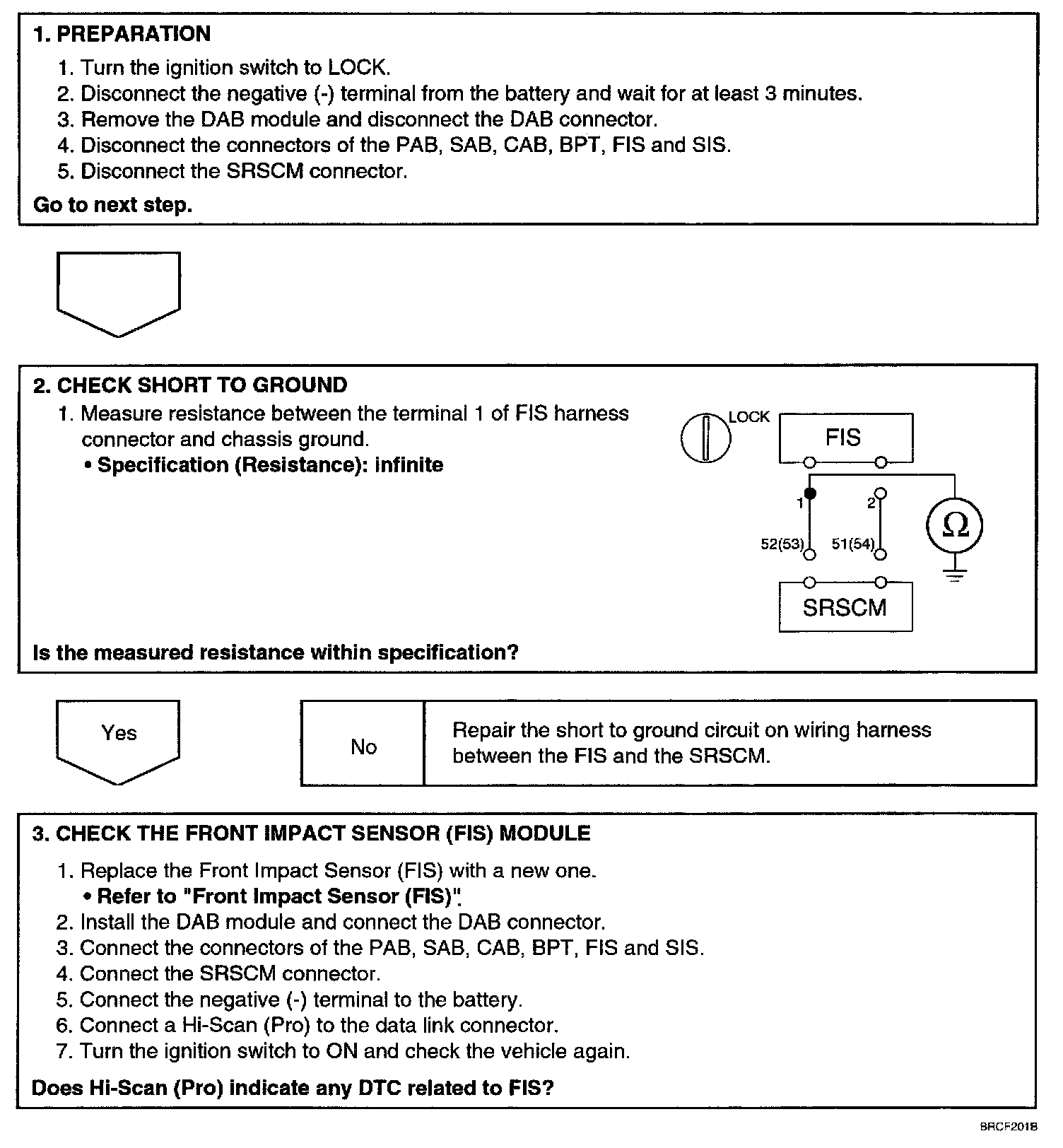

Step 1 - 3:

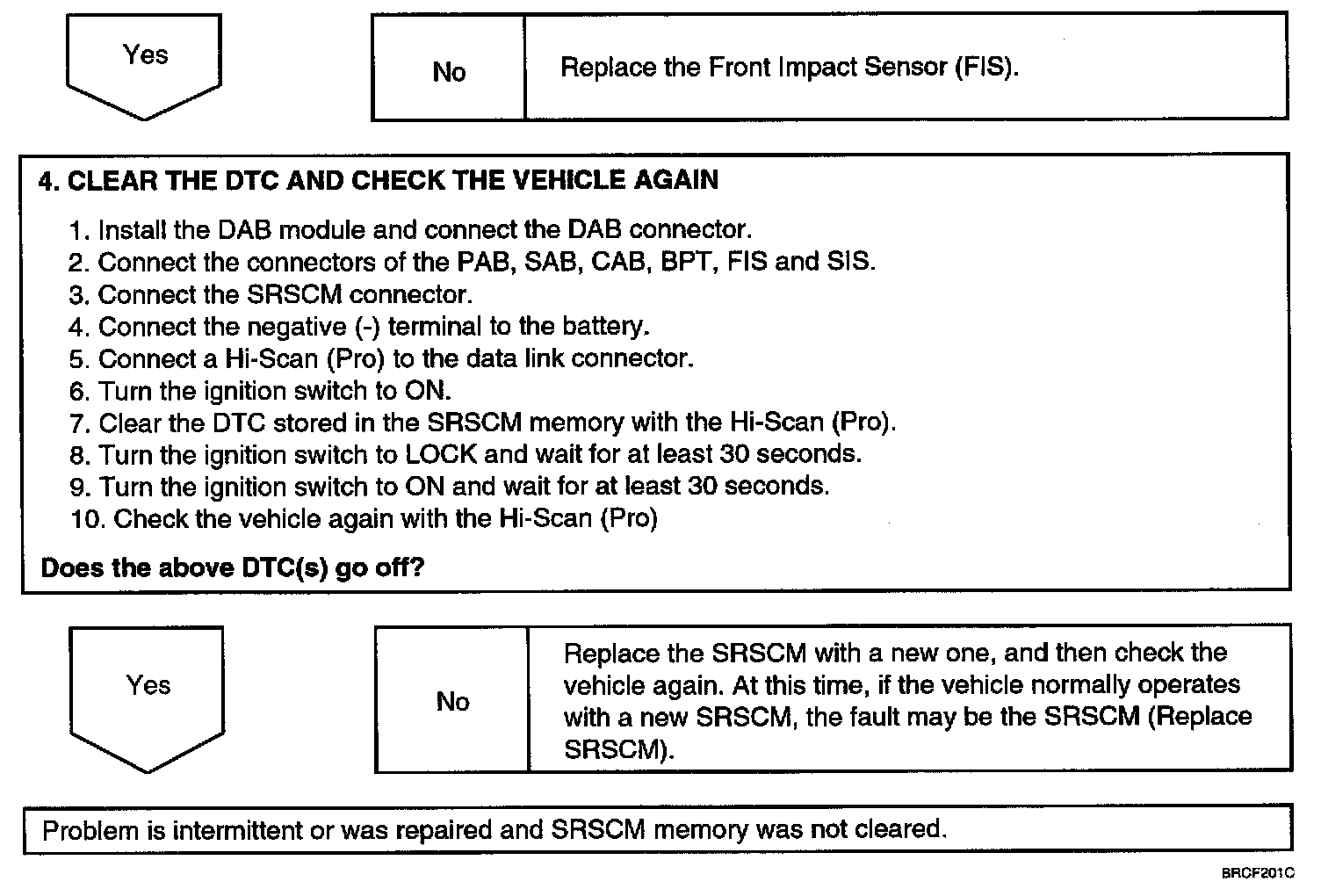

Step 4:

INSPECTION PROCEDURE
