B1103

DTC B1103 Communication Voltage too Low

DESCRIPTION

The SRSCM can communicate any extra devices such as FIS, SIS if battery voltage is greater than 10.6 V. If battery voltage drops less than 10.6 V, SRSCM continuously monitors external devices and if there is an any fault occurred from external devices such as FIS and SIS then SRSCM will set above DTC.

DTC Detecting Condition:

DTC DETECTING CONDITION

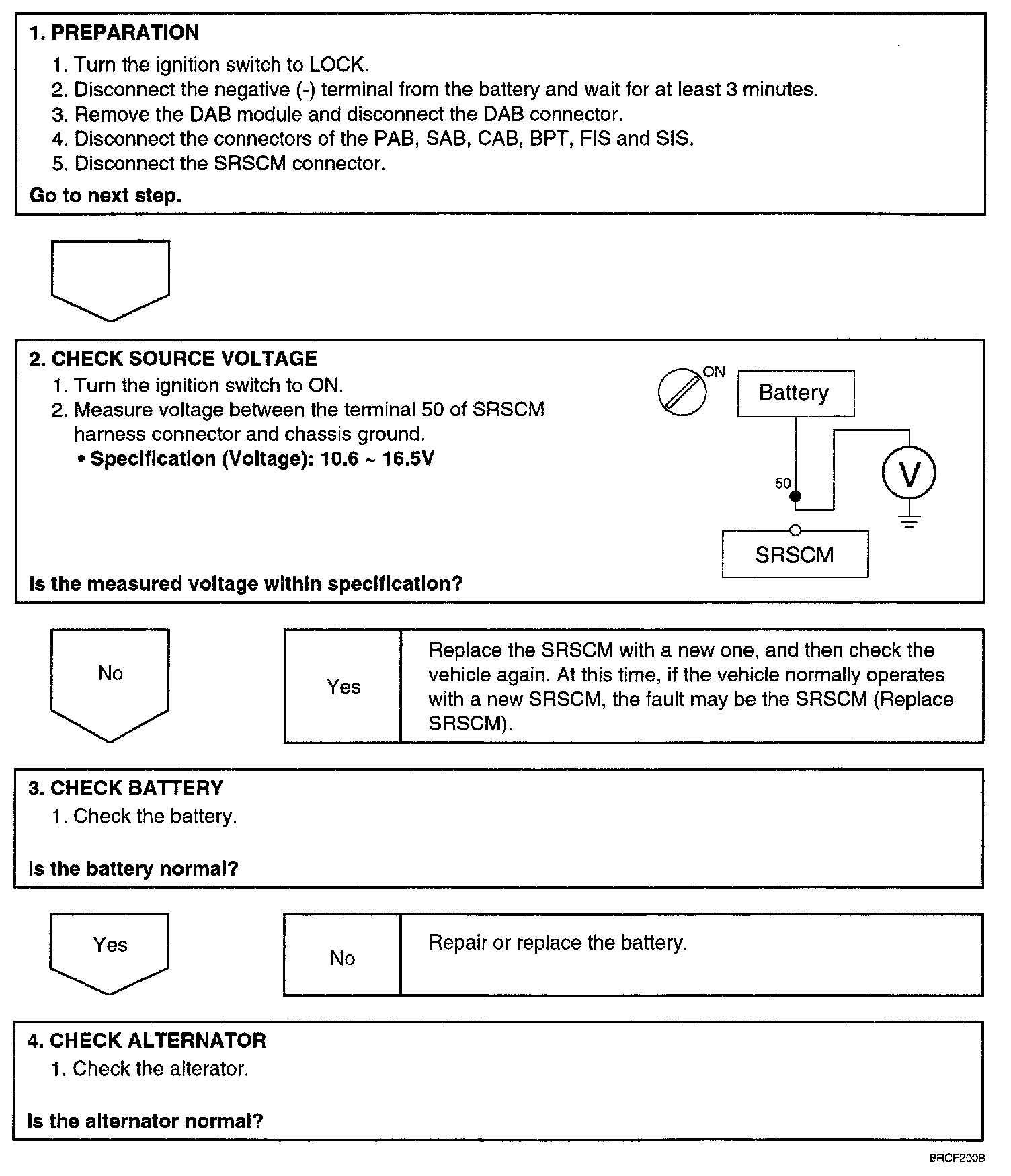

Step 1 - 4:

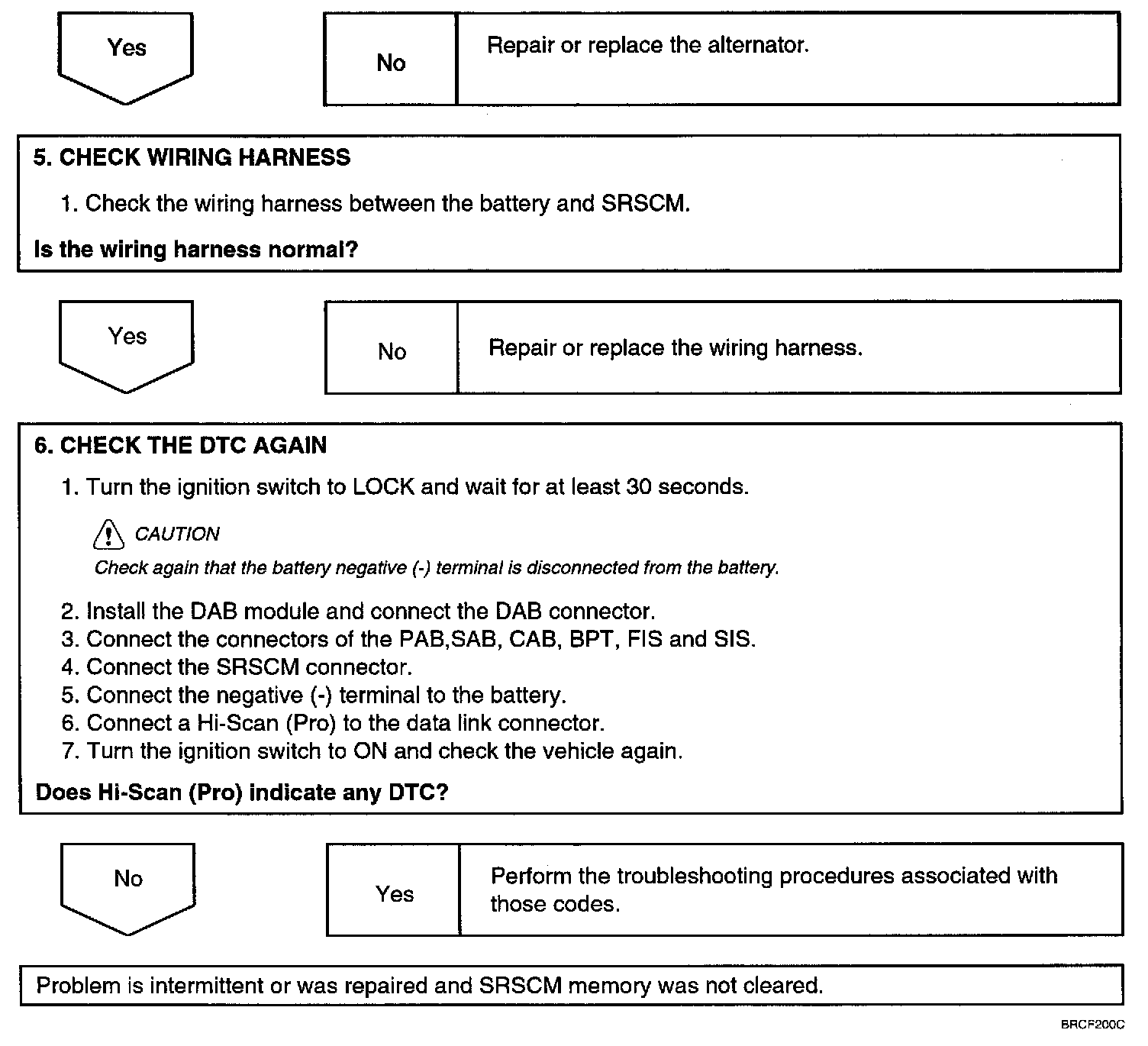

Step 5 - 6:

INSPECTION PROCEDURE
