B1101

DTC B1101 Battery Voltage too High

DESCRIPTION

The SRSCM sets above DTC(s) if it detects that the battery voltage of restraints system is too high or too low. When the voltage returns to normal, the SRS warning light automatically goes off and a malfunction is no longer indicated.

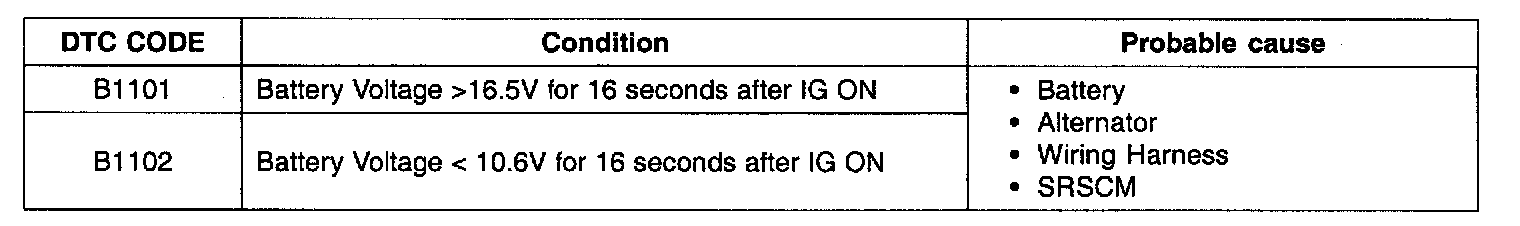

DTC Detecting Condition:

DTC DETECTING CONDITION

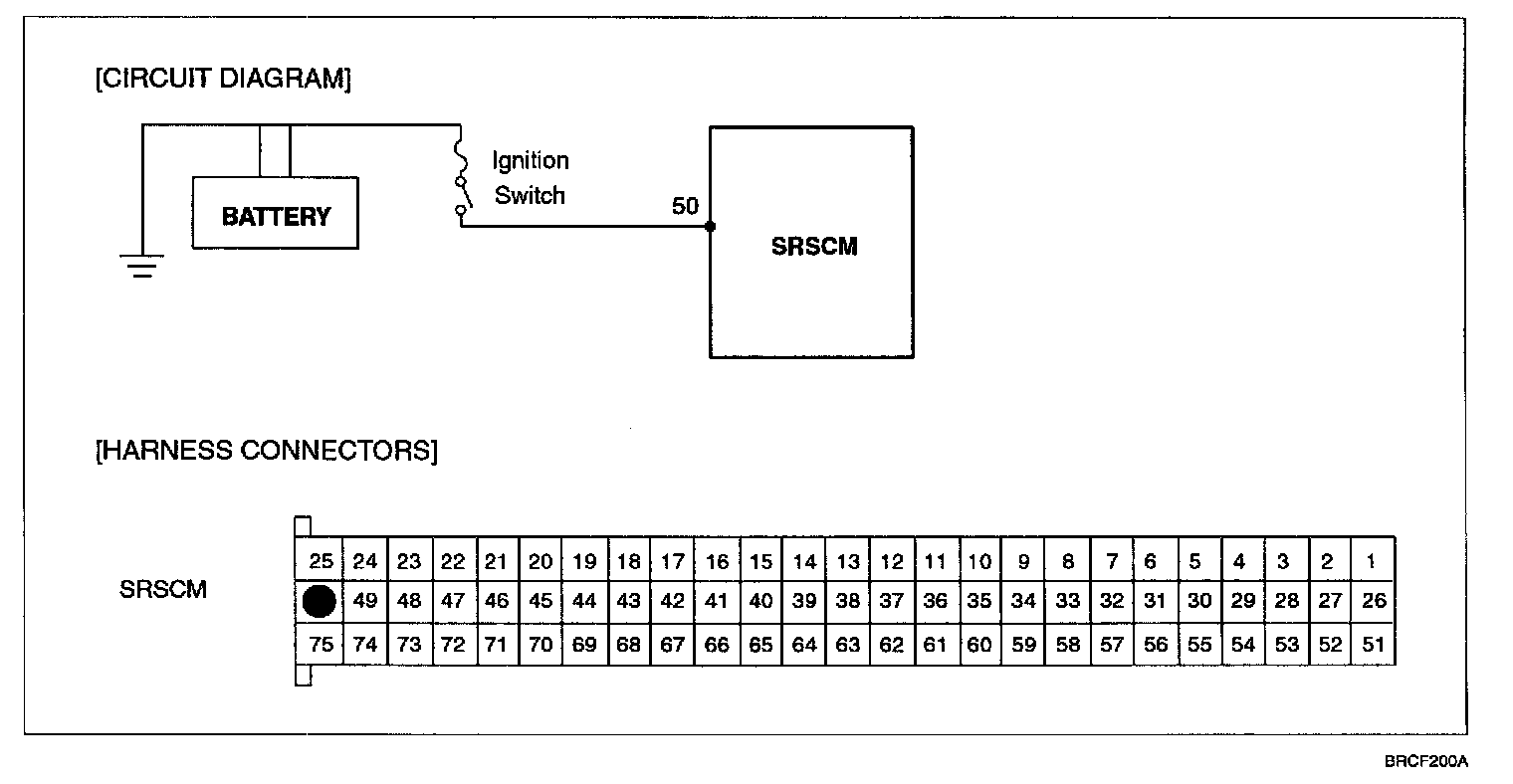

Schematic Diagram:

SCHEMATIC DIAGRAM

Step 1 - 4:

Step 5 - 6:

INSPECTION PROCEDURE
