Home >> Kia >> 2005 >> Spectra5 L4-2.0L >> Repair and Diagnosis >> Steering and Suspension >> Suspension >> Testing and Inspection >> Symptom Chart

Symptom Chart

SYMPTOM CHART

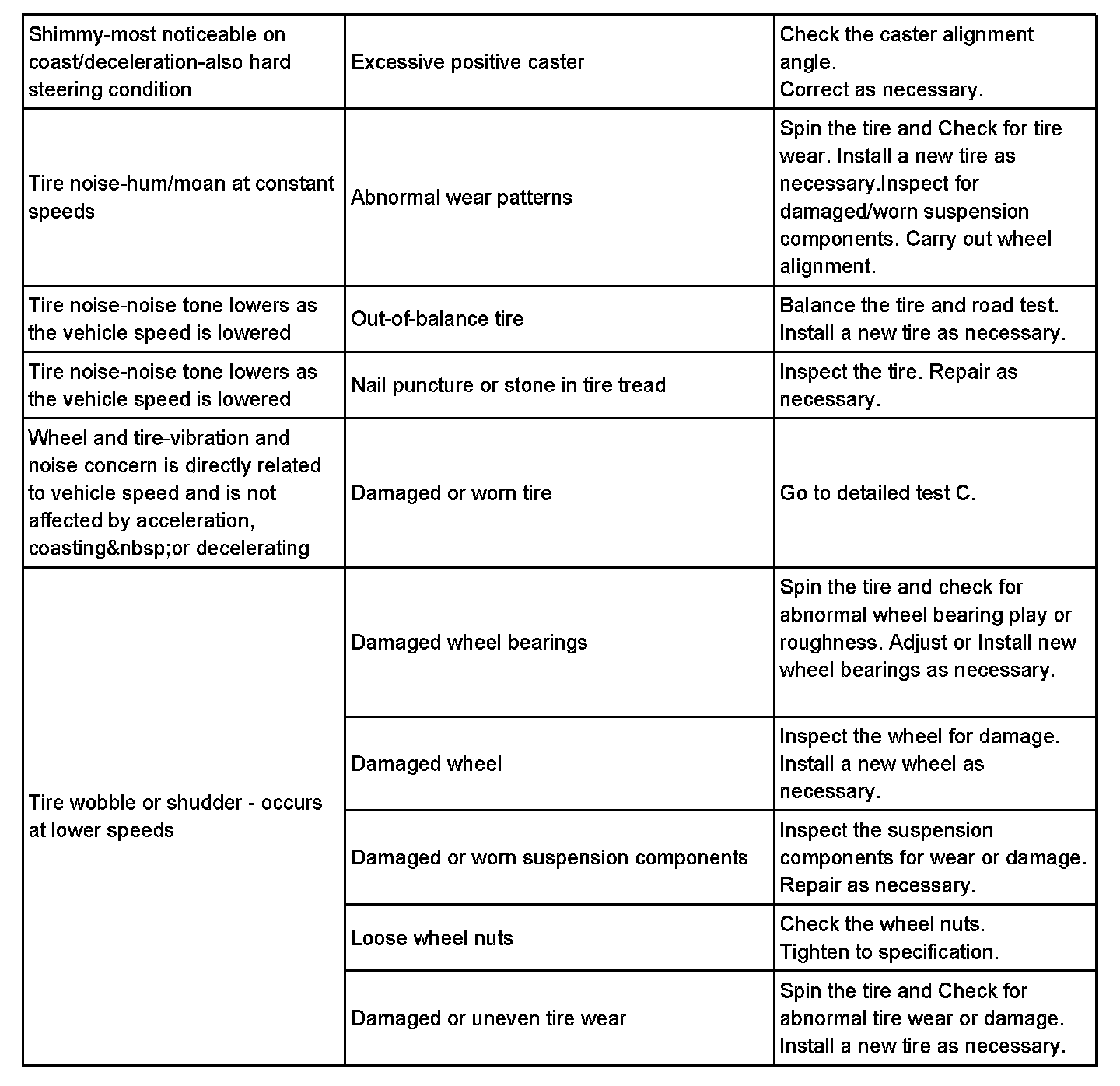

Symptom Chart (Part 1):

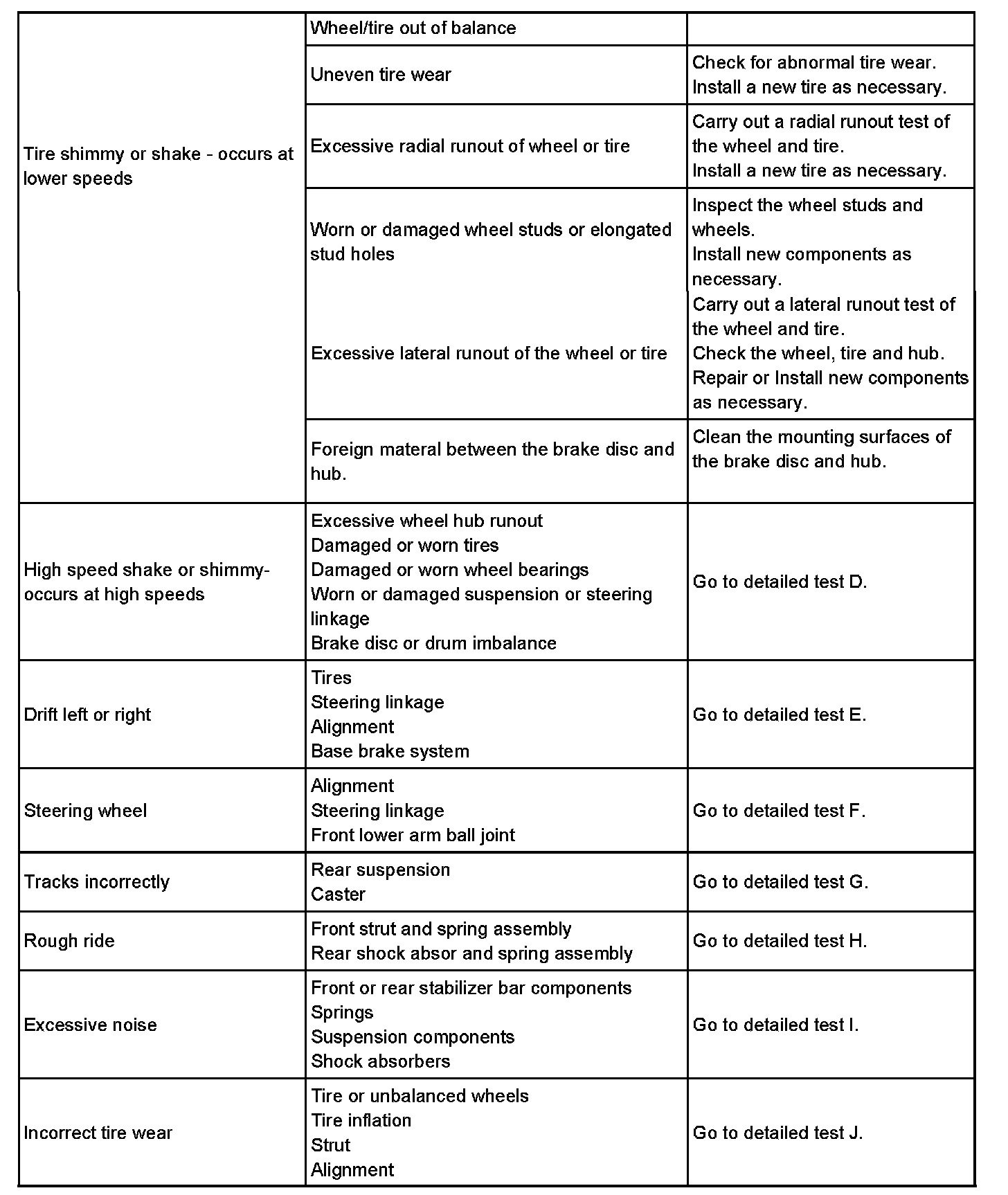

Symptom Chart (Part 2):

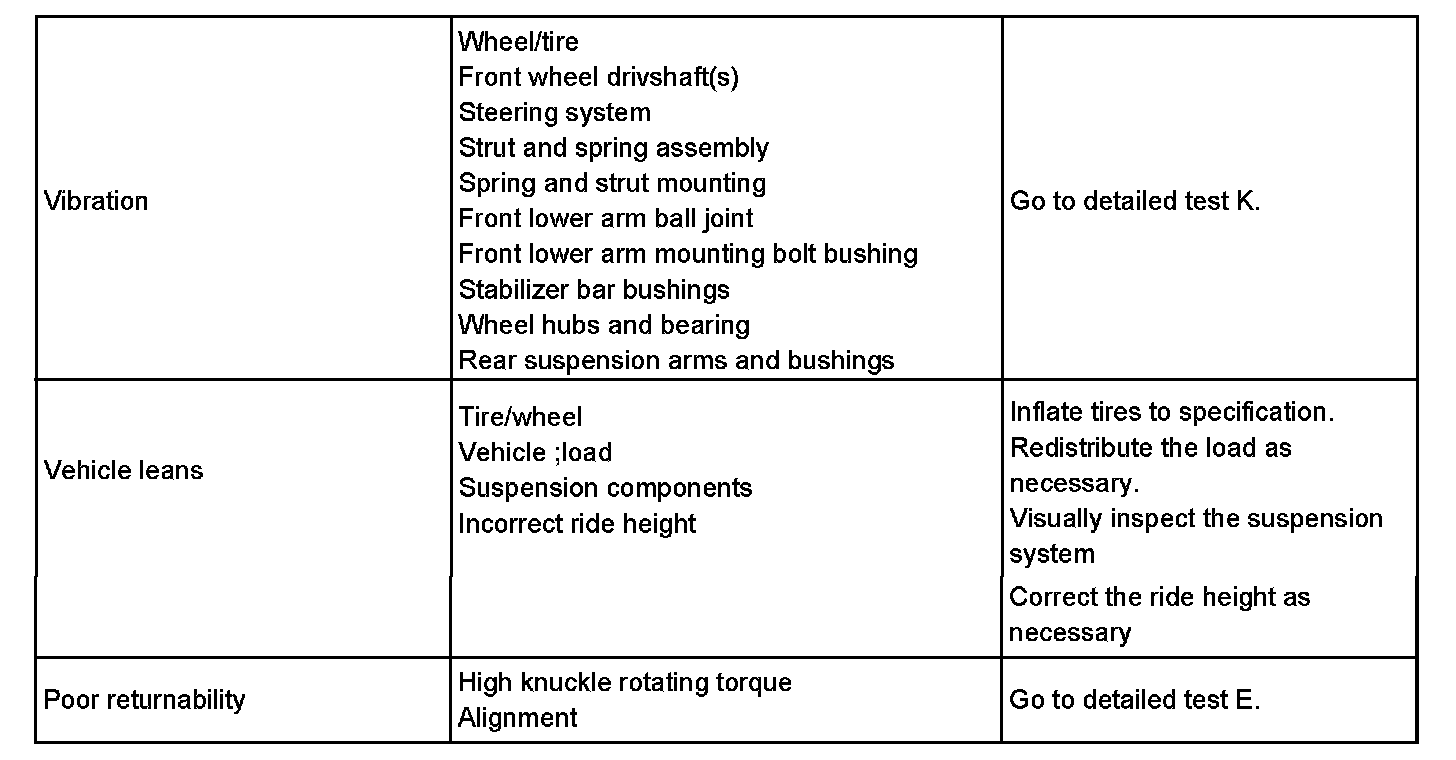

Symptom Chart (Part 3):




Symptom Chart (Part 4):
