Rear

REAR SEAT BELT

REMOVAL AND INSTALLATION

1. Remove rear seat cushion.

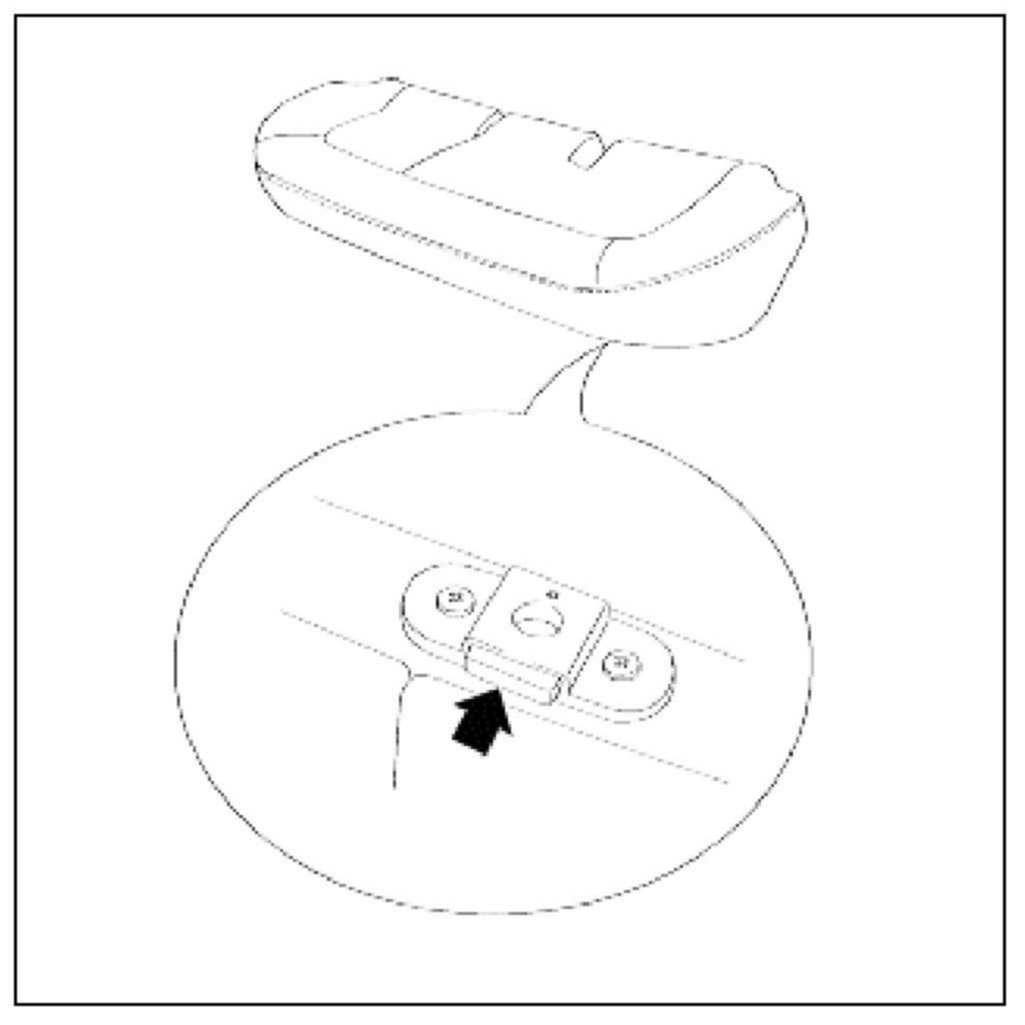

1. Release seat cushion stopper.
2. Remove seat cushion.

2. Remove rear seat back.




1. Remove bolts (4).

Tightening torque : 17 - 26 N.m (1.7 - 2.6 kg.m, 12 - 19 lb.ft)

2. Remove seat belt from belt guide.

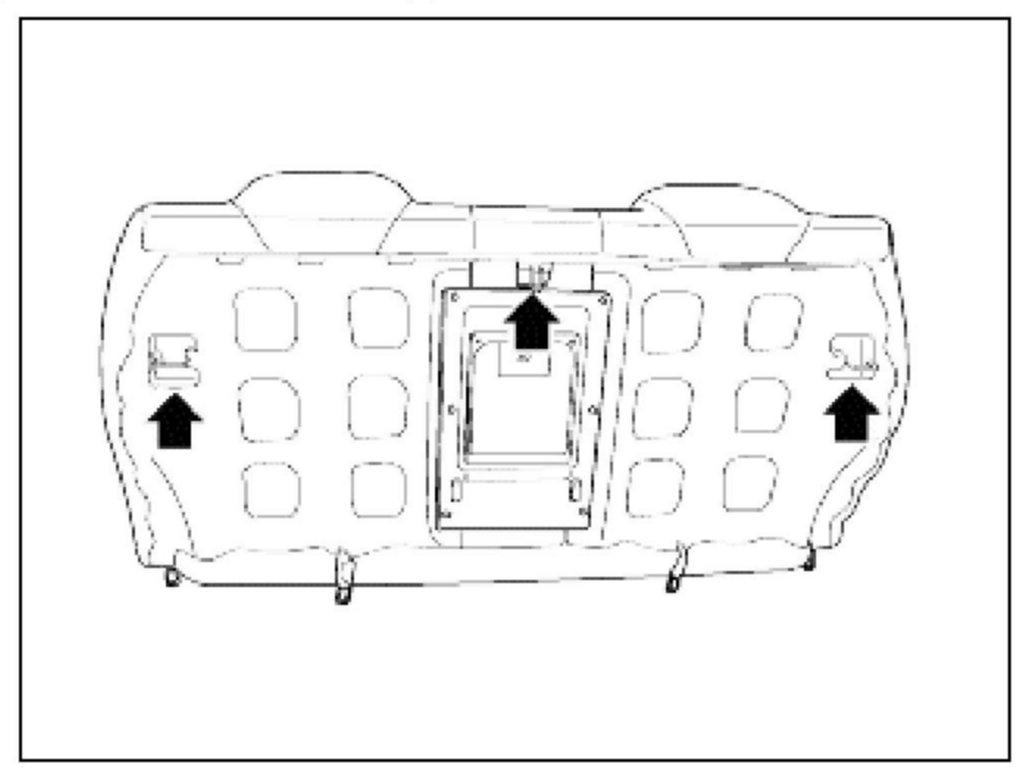

3. Release seat back stopper, and then remove seat back.

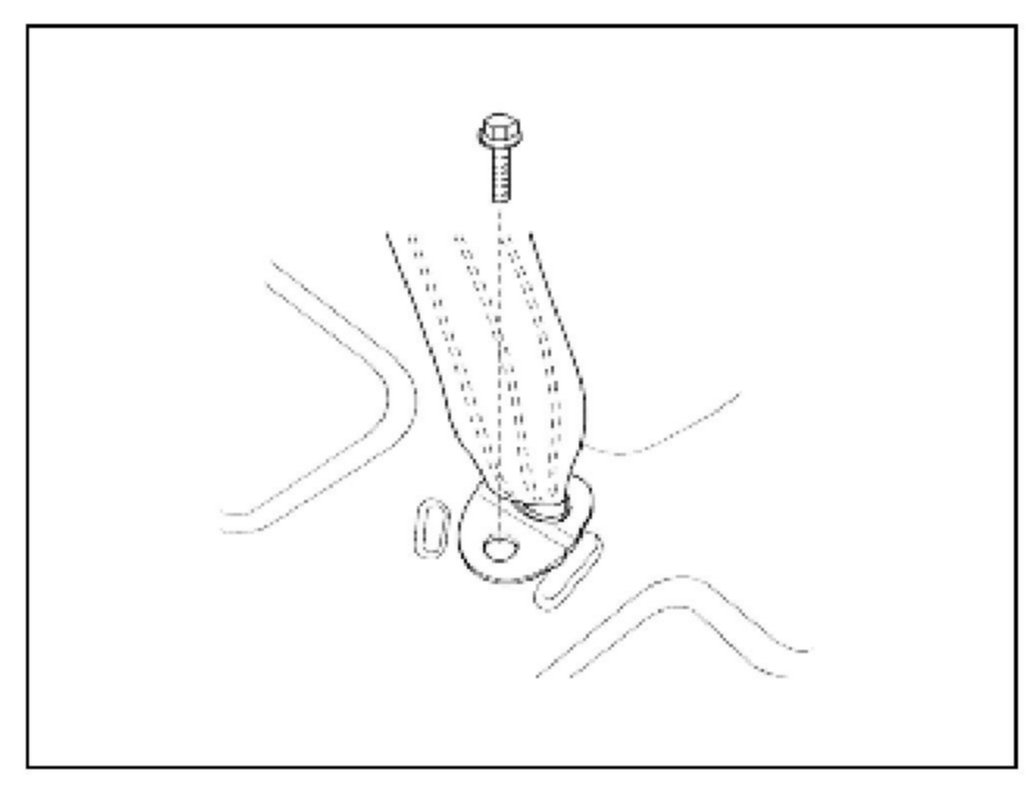

3. Remove seat belt lower anchor bolt.

Tightening torque : 40 - 55 N.m (4.0 - 5.5 kg.m, 29 - 40 lb.ft)

4. Remove rear pillar trim.

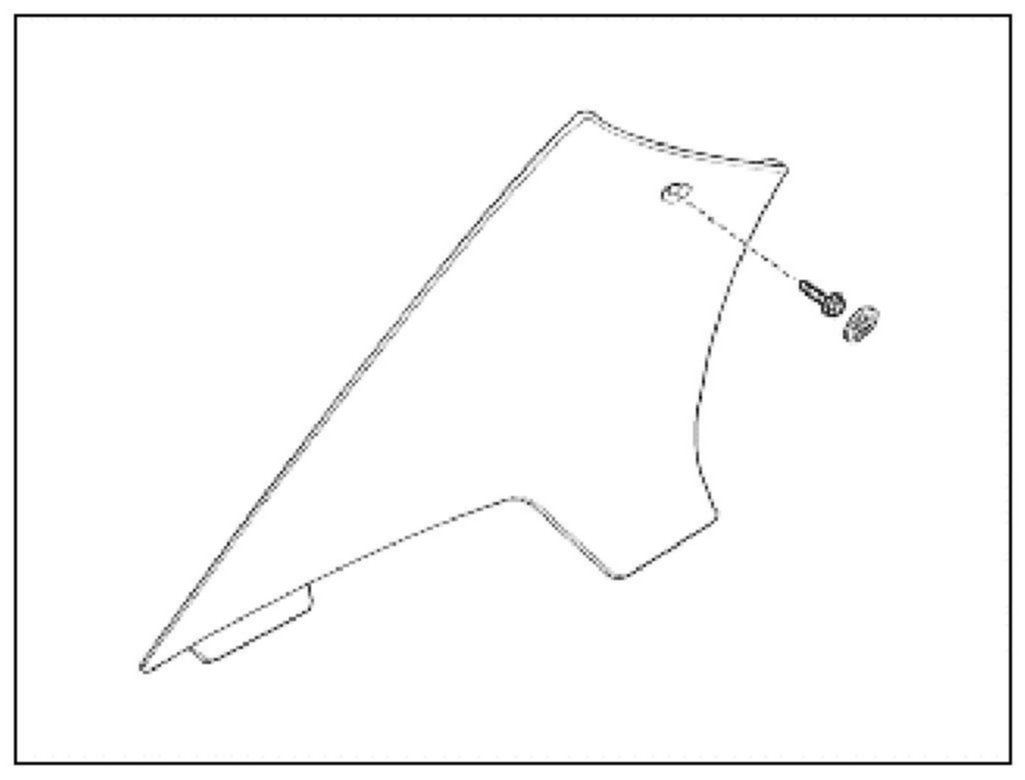

1. Remove rear pillar blanking cover and bolt.

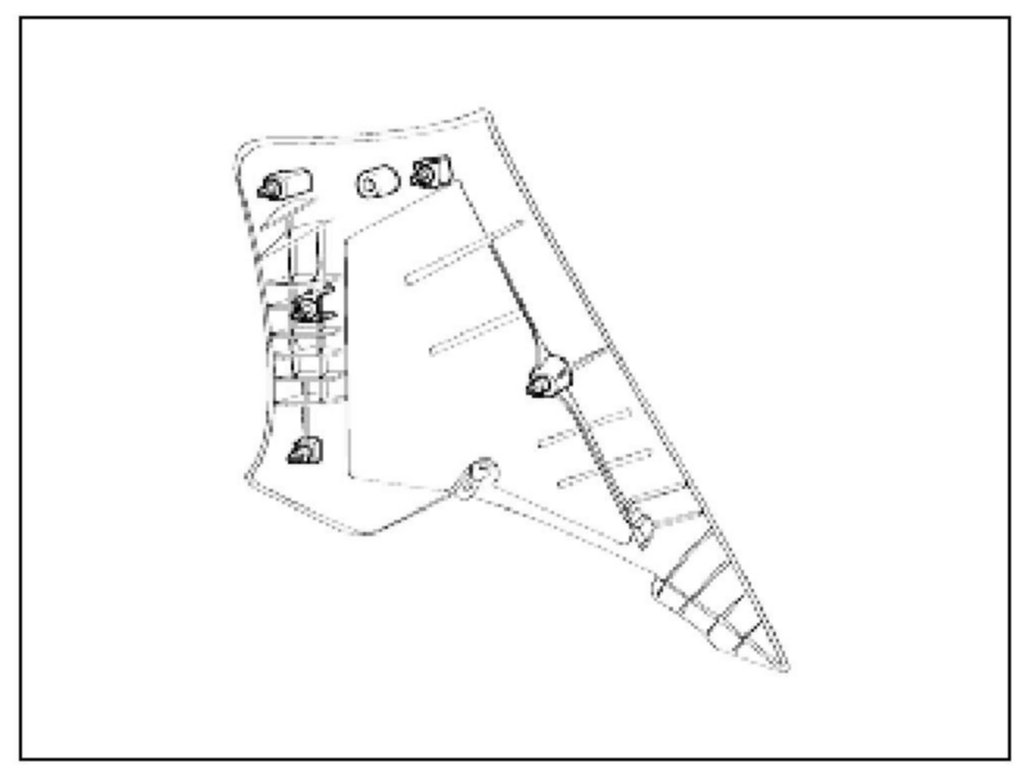

2. Remove trim from rear pillar.

5. Remove rear package tray trim.

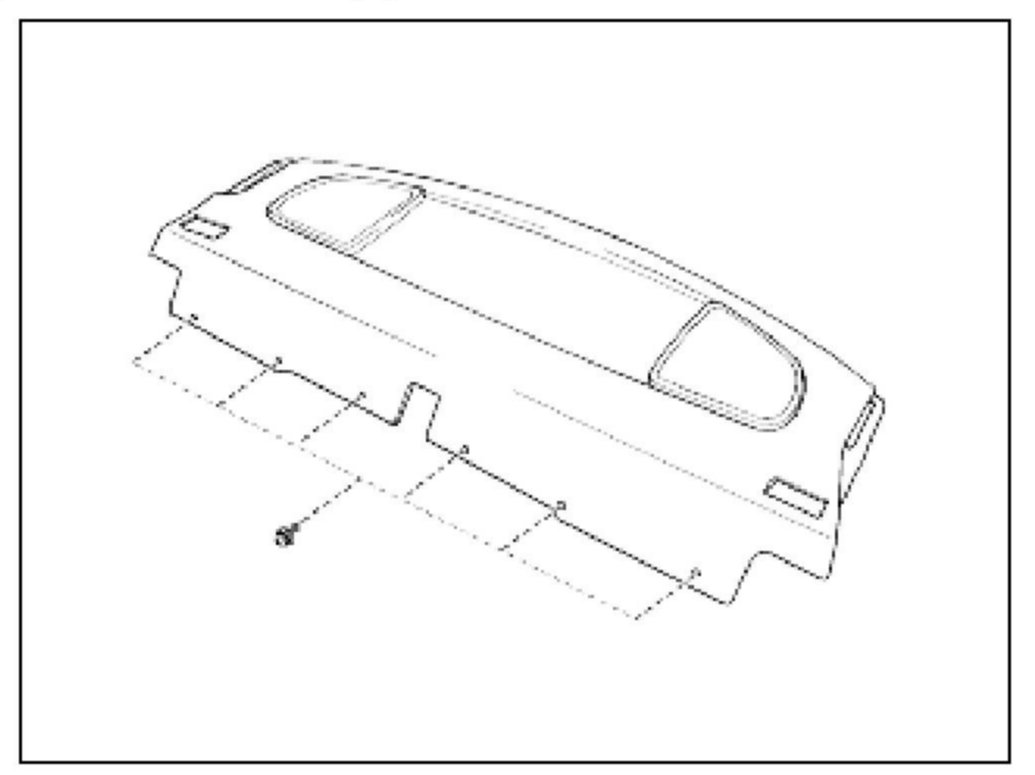

1. Remove fasteners(6).

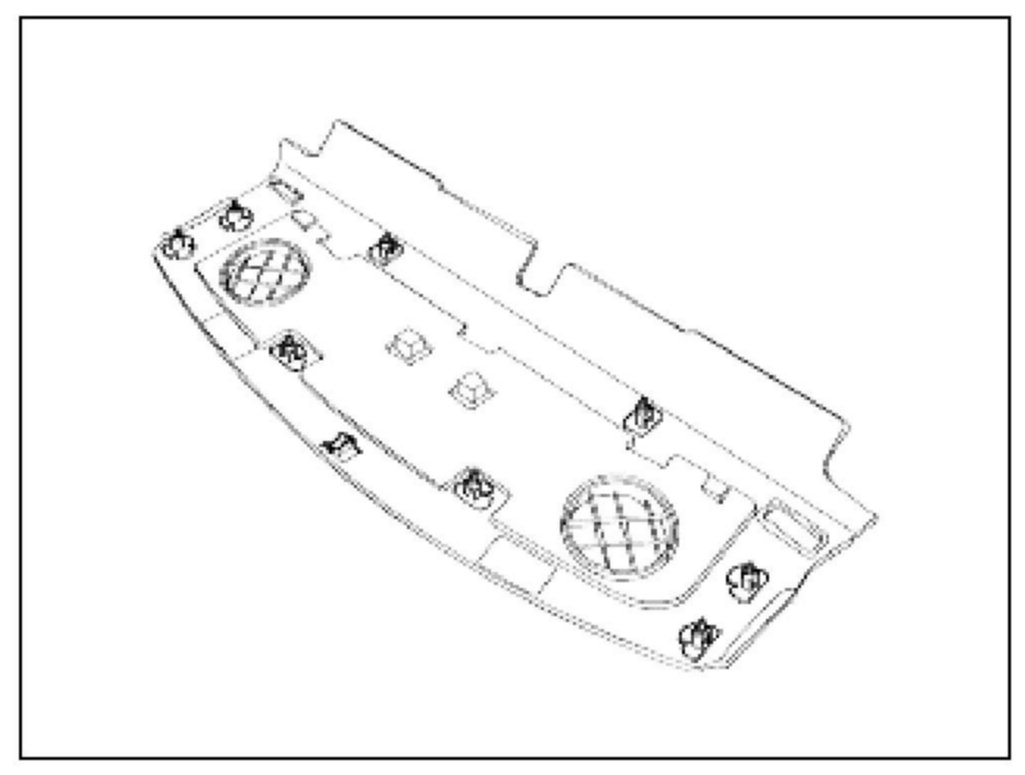

2. Remove trim from rear package tray.
3. Remove seat belt guide and seat belt from trim.

6. Remove seat belt guide and seat belt from trim.

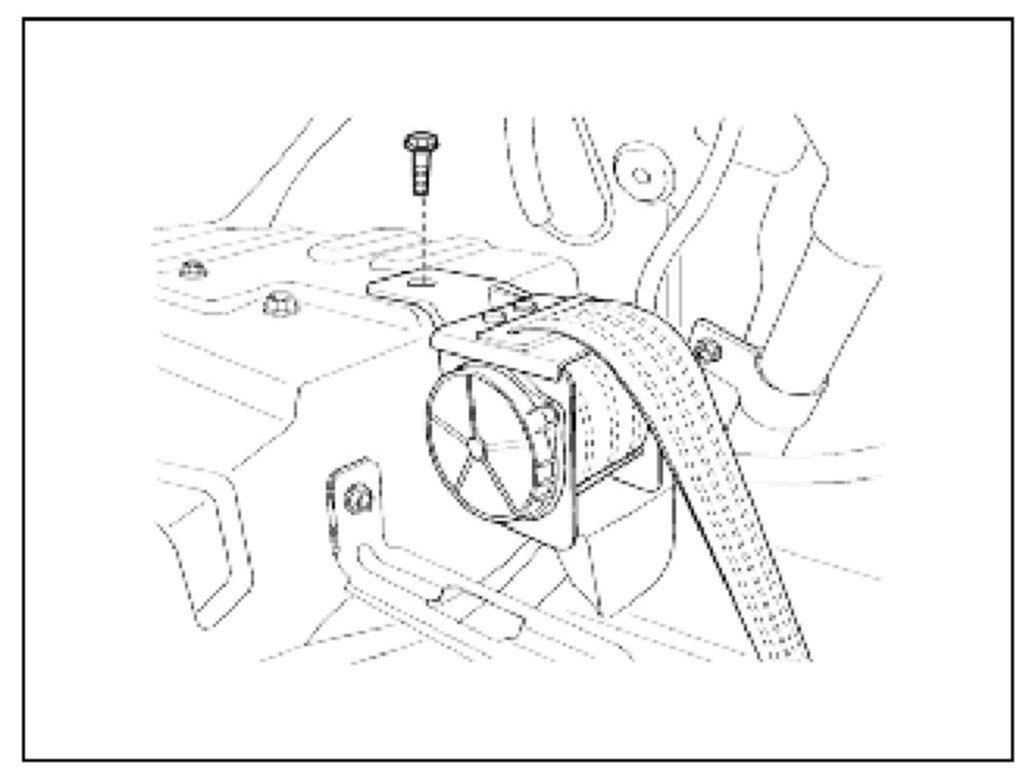

1. Remove bolt.

Tightening torque : 40 - 55 N.m (4.0 - 5.5 kg.m, 29 - 40 lb.ft)

2. Remove seat belt retractor from package tray.

7. Install in reverse order of removal.
