Blower Motor
BLOWER MOTORREPLACEMENT

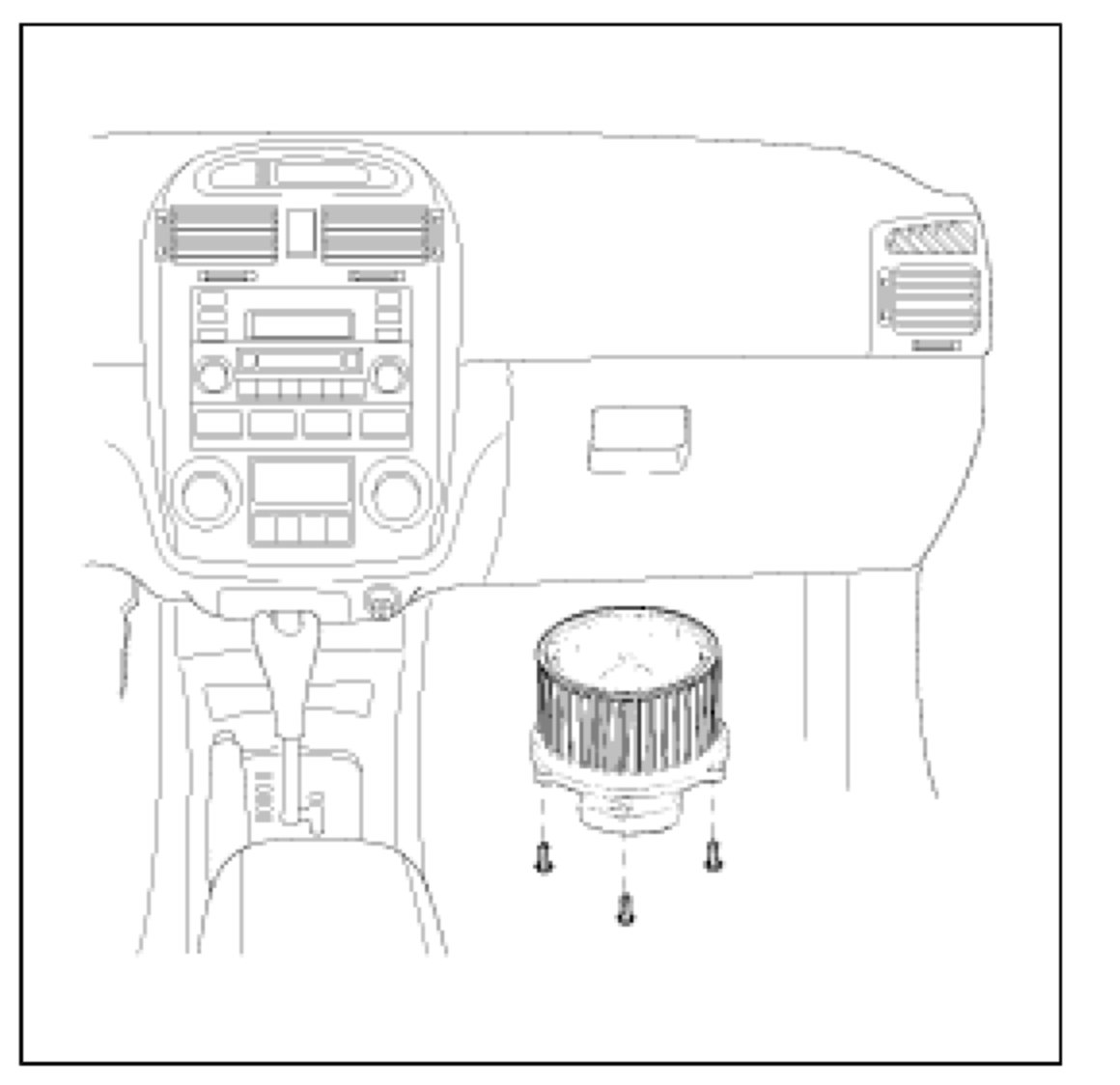

1. Disconnect the negative (-) battery terminal.
2. Disconnect the connector of the blower motor.
3. Remove the blower motor after loosening the mounting screws.
4. Install in the reverse order of removal.
REPLACEMENT
1. Disconnect the negative (-) battery terminal.
2. Disconnect the connector of the blower motor.
3. Remove the blower motor after loosening the mounting screws.
4. Install in the reverse order of removal.
