Intake Actuator

INTAKE ACTUATOR

REPLACEMENT
1. Disconnect the negative (-) battery terminal.
2. Remove the lower crush panel and the glove box.
3. Disconnect the connector of fresh and recirculation actuator after removing the air duct.

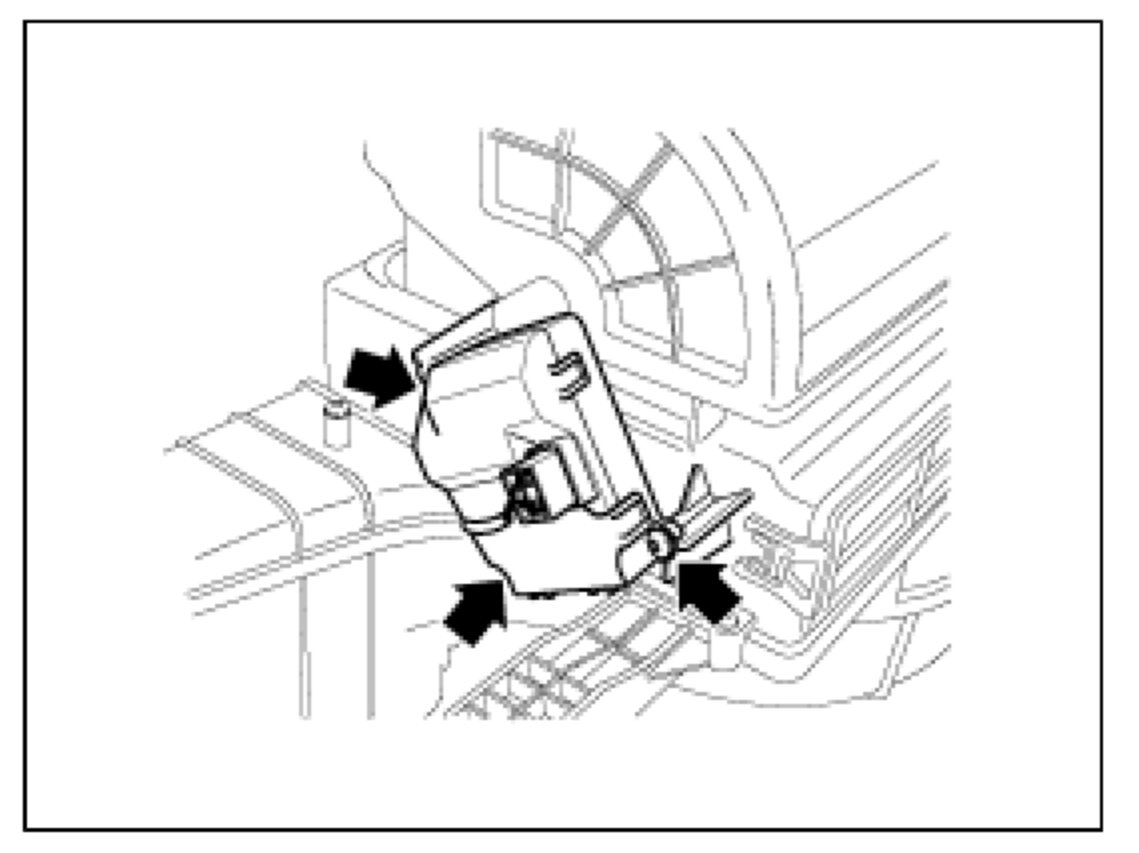

4. Loosen the mounting screw and then remove the fresh and recirculation actuator.
5. Install in the reverse order of removal.
