Removal

Shift Control

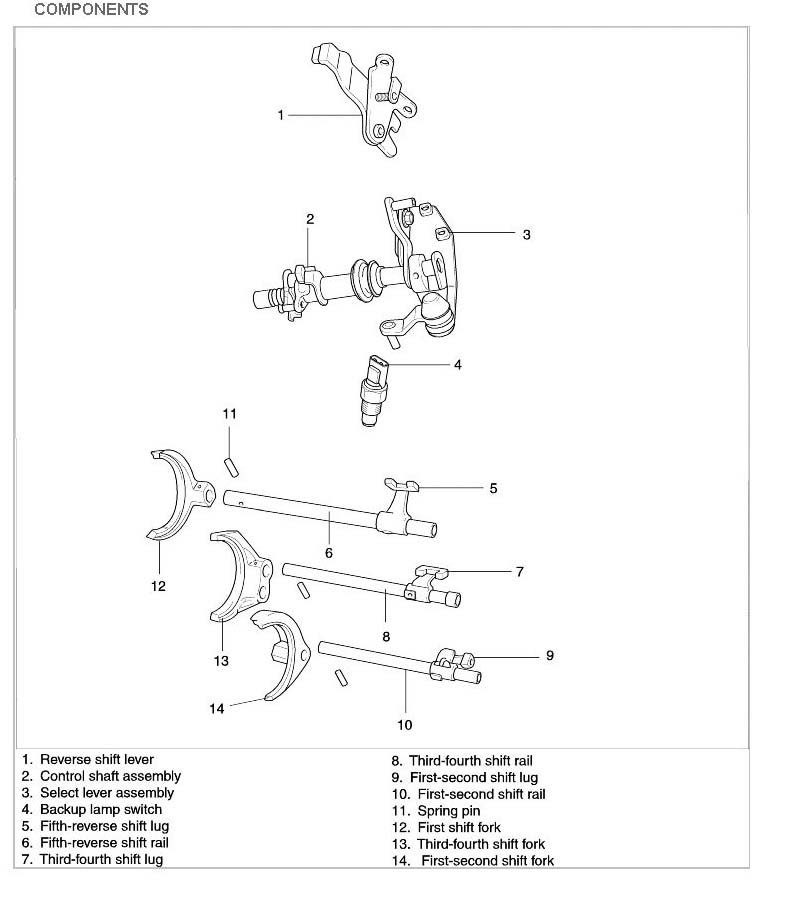

Components:

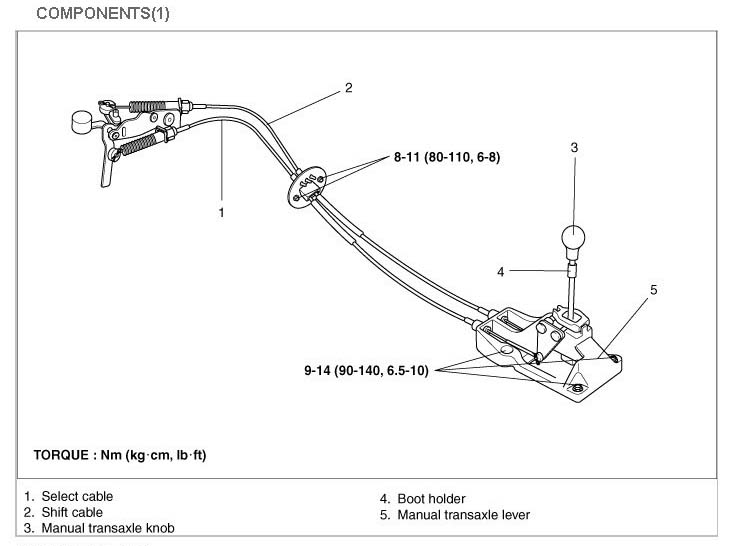

Components(1):

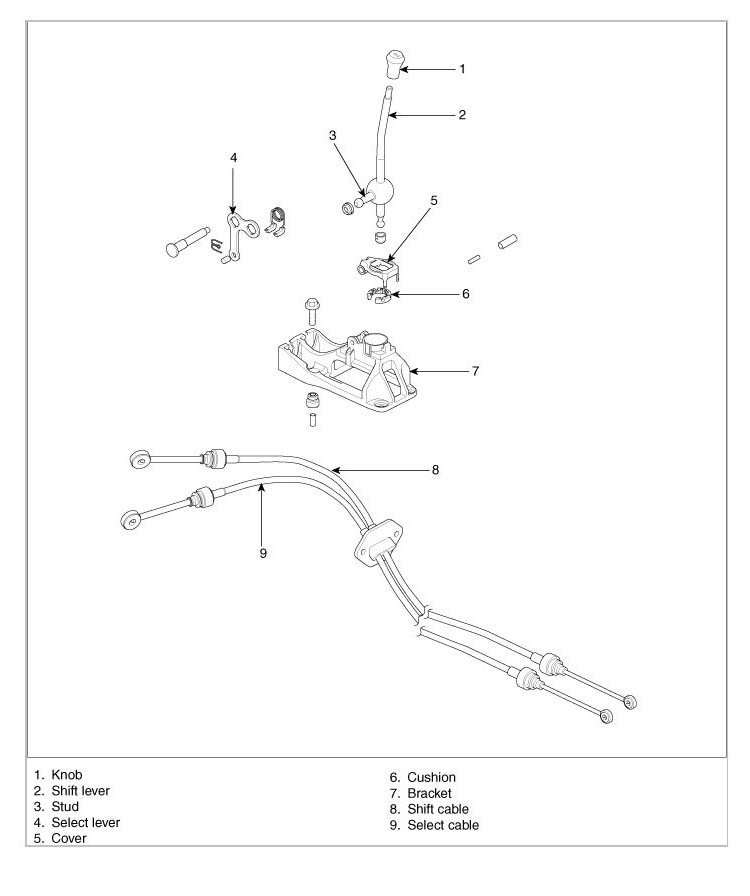

Components(2):

REMOVAL

1. Remove the console box.
2. Remove the split pin and holder.
3. Remove the shift assembly.
4. Remove retainer(A) and nuts(B).





5. Remove the split pin and holder. (Transaxle side)
6. Remove the shift cable and select cable.
